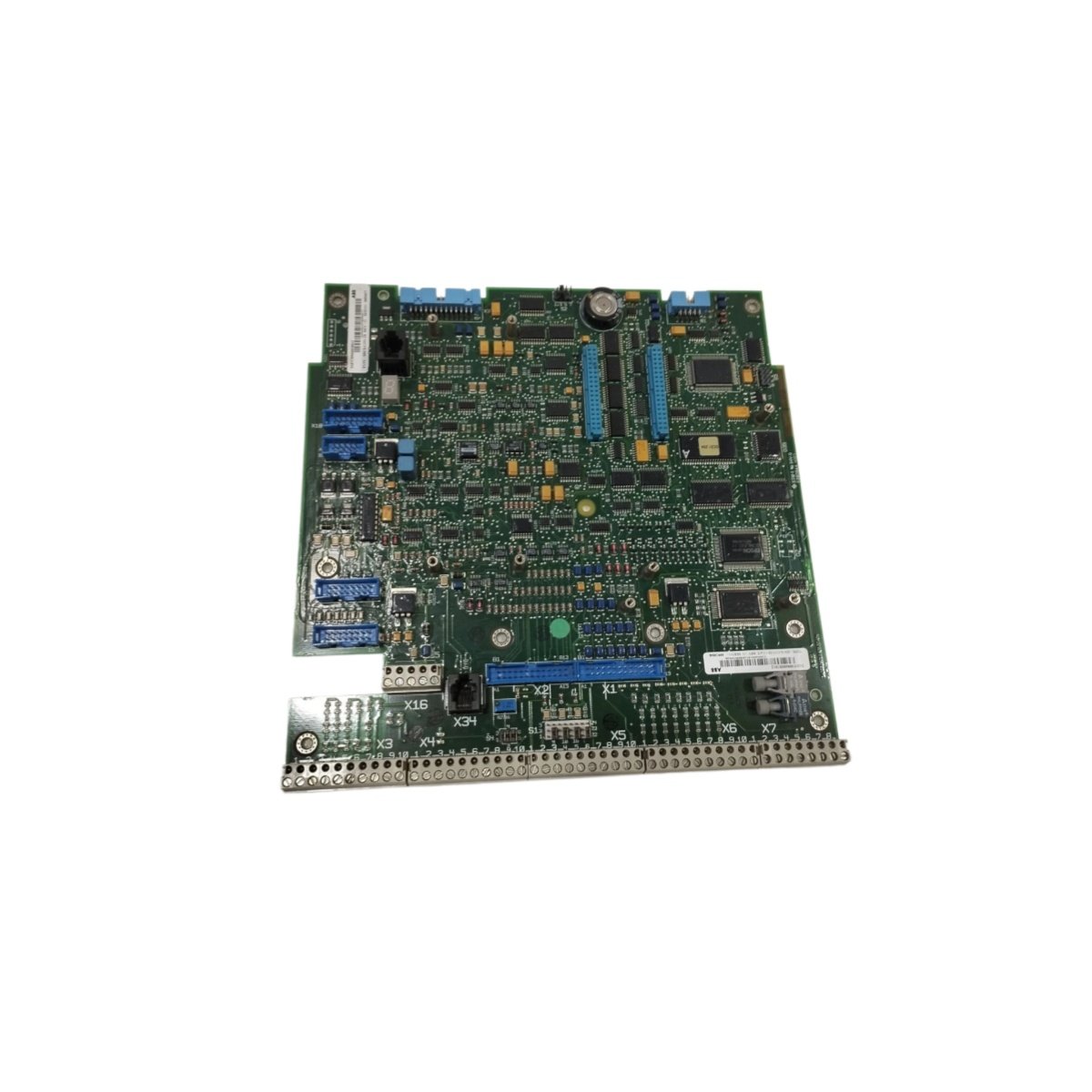

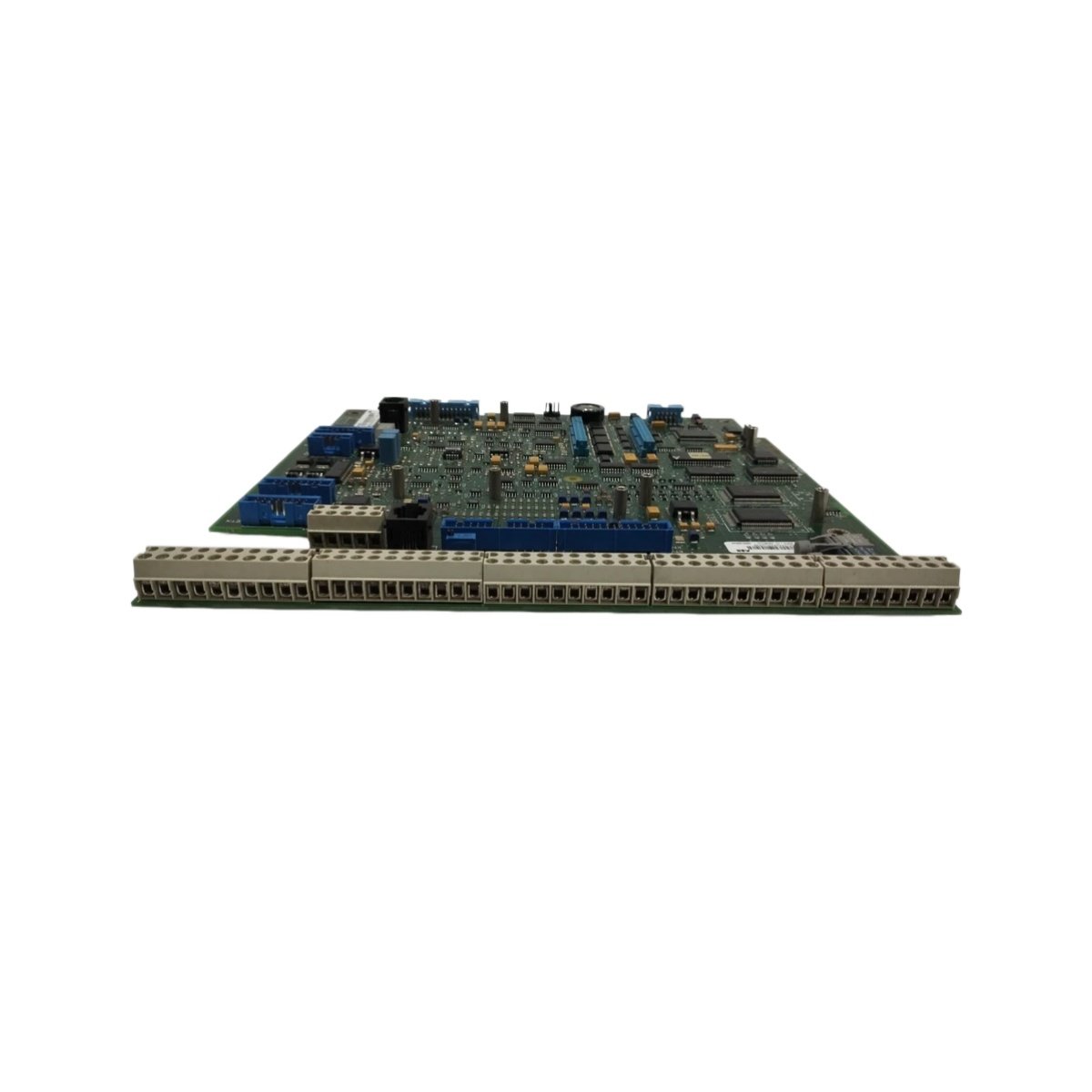

The ABB SDCS-CON-2B 3ADT309600R0012 primary processing unit delivers reliable control execution for distributed control system architectures. This compact controller features a powerful 32-bit processor that handles complex regulatory and sequential logic tasks. Its sturdy housing measures 280 mm in height, 45 mm in width, and 260 mm in depth, fitting standard ABB rack systems.

Technical Specifications

Processing Performance and Logic Execution

The ABB SDCS-CON-2B 3ADT309600R0012 executes 1,000 Boolean instructions in just 2.5 ms, ensuring rapid response to process variations. This speed supports demanding applications like turbine control, chemical reactor management, and power plant automation. The processor handles floating-point arithmetic and PID algorithms without degrading the scan cycle. Engineers can implement advanced control strategies involving cascade loops, feedforward compensation, and adaptive tuning.

Memory Organization and Data Preservation

This controller integrates 64 MB of RAM for application programs and runtime data storage. The built-in 32 MB flash memory retains the firmware and configuration during extended power outages. A dedicated 256 KB battery-backed SRAM maintains critical process values and alarm counters for up to three years. Such robust memory protection prevents data loss and enables seamless system recovery after unexpected shutdowns.

I/O Expansion and System Scalability

The ABB SDCS-CON-2B 3ADT309600R0012 supports up to 1,024 I/O points across multiple remote racks. This capacity suits medium-sized distributed control applications in process industries. Users can distribute I/O modules locally within the same cabinet or remotely over fieldbus networks. The system accommodates future expansion by adding more I/O chassis without replacing the main controller.

Communication Interfaces and Network Integration

Two Ethernet ports provide redundancy for critical network connections to plant-wide systems. The RS-232 interface enables direct programming access for commissioning and troubleshooting tasks. A dedicated RS-485 port supports Modbus RTU communication with third-party instruments and drives. These interfaces allow the ABB SDCS-CON-2B 3ADT309600R0012 to exchange data with DCS workstations, HMIs, and asset management software in real time.

Power Consumption and Thermal Management

The controller draws 5.2 W from the system power supply during standard operation. This moderate power consumption reduces heat accumulation in densely packed control cabinets. The unit includes an integrated temperature sensor for monitoring internal thermal conditions. This sensor alerts operators if the module approaches critical temperature thresholds, preventing overheating failures.

Installation and Mounting Options

Mount the ABB SDCS-CON-2B 3ADT309600R0012 either on a 35 mm DIN rail or directly onto the system backplane. The unit locks securely with integrated retaining clips for vibration-resistant installation. Its 45 mm width preserves valuable rack space for additional I/O modules. Front-accessible LED indicators display power status, CPU activity, and network link conditions for quick visual checks.

Diagnostics and Self-Monitoring Features

The controller runs continuous self-diagnostics to detect memory errors or processor faults. It logs these events in an internal error buffer for later analysis during maintenance. A built-in watchdog timer triggers a safe state if the processor stops responding within the defined time limit. Such self-protection mechanisms enhance system availability and protect connected equipment from uncontrolled operations.
