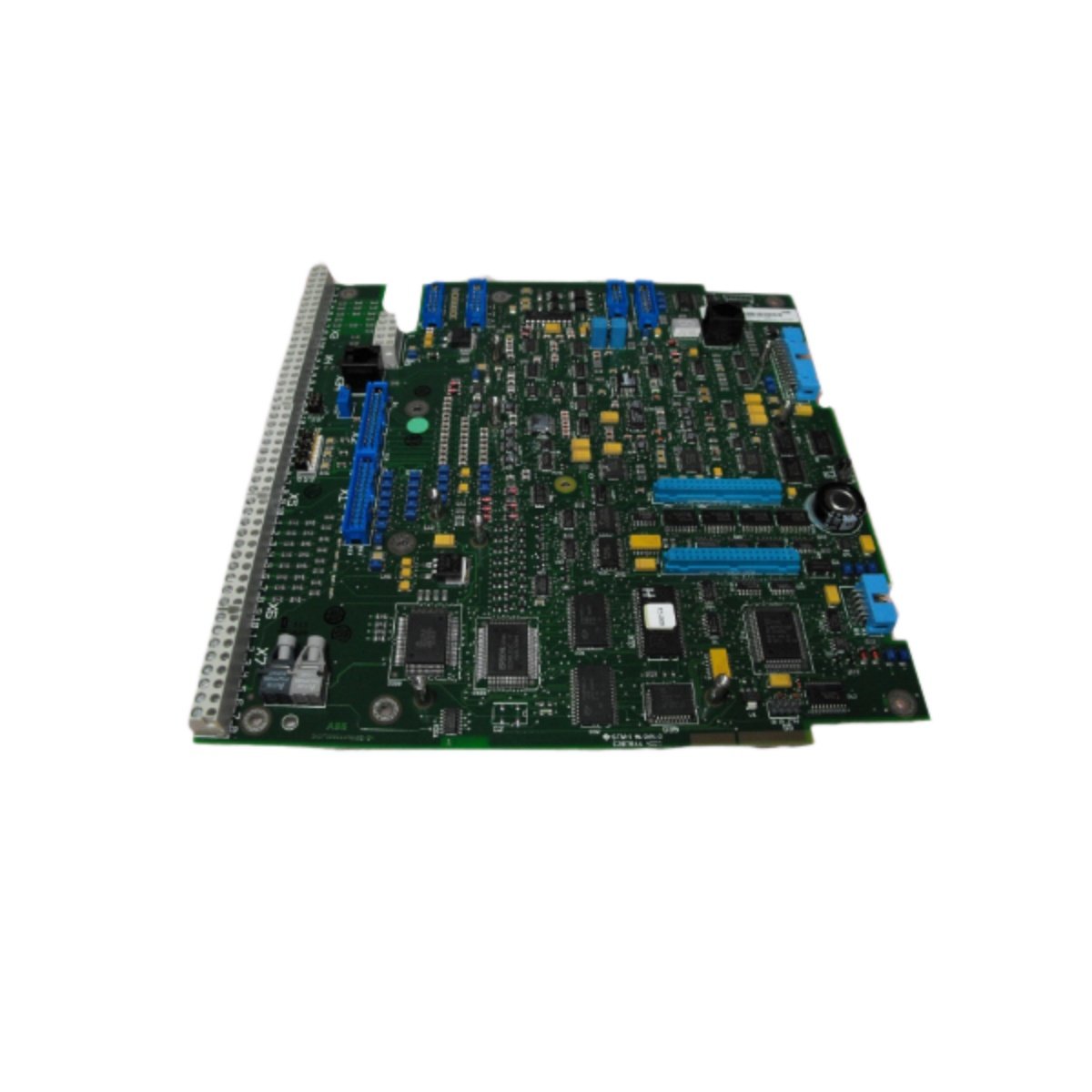

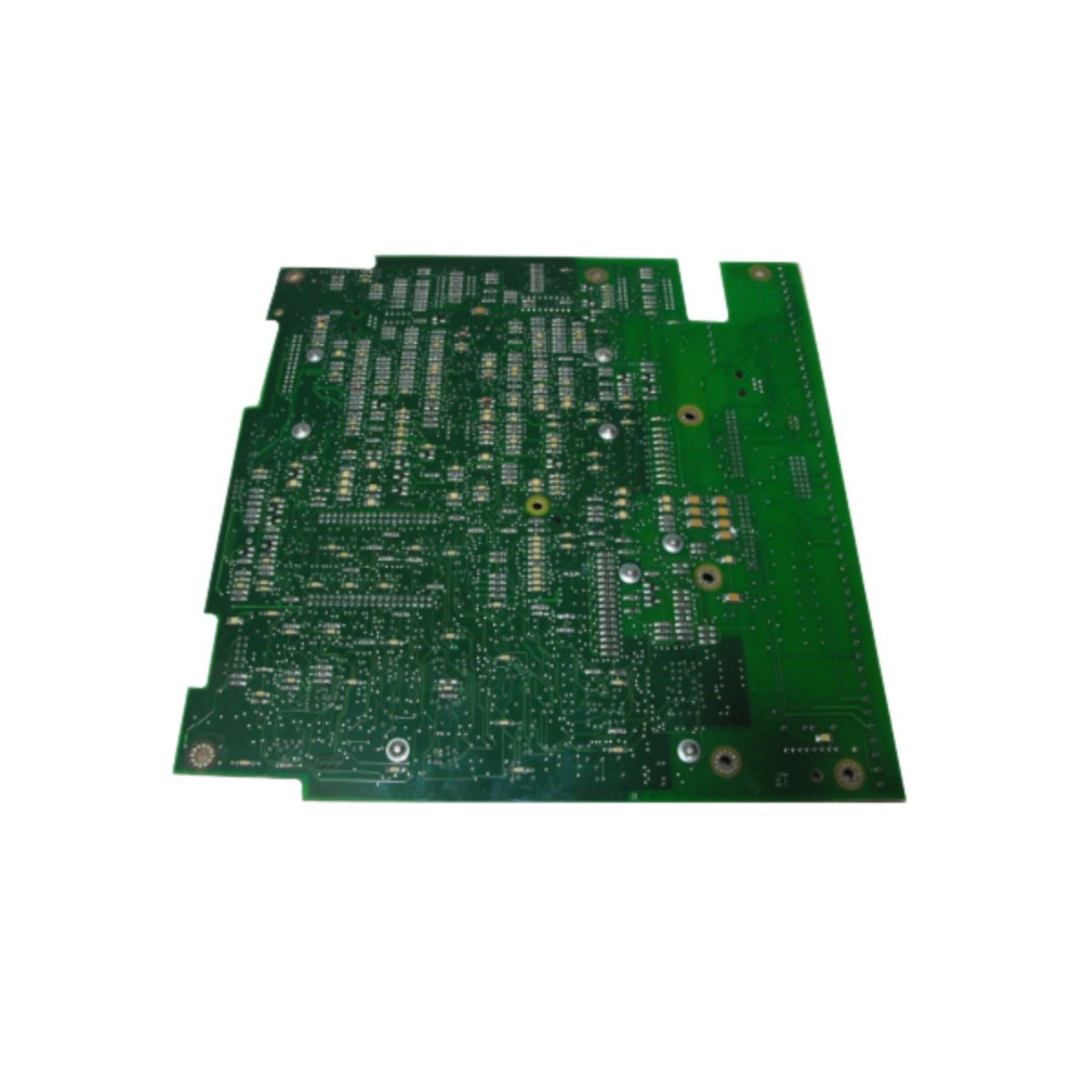

The ABB SDCS-CON-2A ADT309600R0002 controls drive and converter functions inside ABB DC power systems. Engineers select this board when precise regulation must handle demanding industrial loads. Consequently, the unit delivers stable control performance across continuous plant operations.

Physical Dimensions and Weight Data

Cabinet depth often dictates how technicians arrange control boards inside drive enclosures. Therefore, this board keeps a compact profile while supporting full regulation circuitry. It weighs roughly 0.7 kg and measures 200 mm in length. Additionally, its width spans 150 mm with a thickness of 25 mm.

Interfaces and Connectivity Features

Reliable regulation depends on secure links between the board and connected power modules. The unit provides backplane connectors for critical signal paths. Furthermore, front-panel LEDs let technicians verify board and fault status instantly. The design supports plug-in replacement without rewiring field connections.

Component Count and Energy Storage

Internal architecture shapes both diagnostic coverage and service life. This board carries more than 250 discrete components across its regulation stages. Moreover, bulk capacitors store enough energy to smooth brief supply dips. This storage protects sensitive logic whenever mains power fluctuates.

Key Technical Specifications

Regulation Performance and Compliance

Stable regulation directly influences overall drive system accuracy. The board holds output tolerance within ±0.5% across full load. Meanwhile, isolation voltage reaches 500 VDC between control and power circuits. Diagnostic coverage exceeds 99%, which strengthens fault detection.

Industrial sites also demand strict safety certifications before deployment. The board complies with IEC and UL standards for industrial control equipment. In addition, it meets CE requirements for electromagnetic compatibility. These credentials support dependable operation in harsh plant environments.
