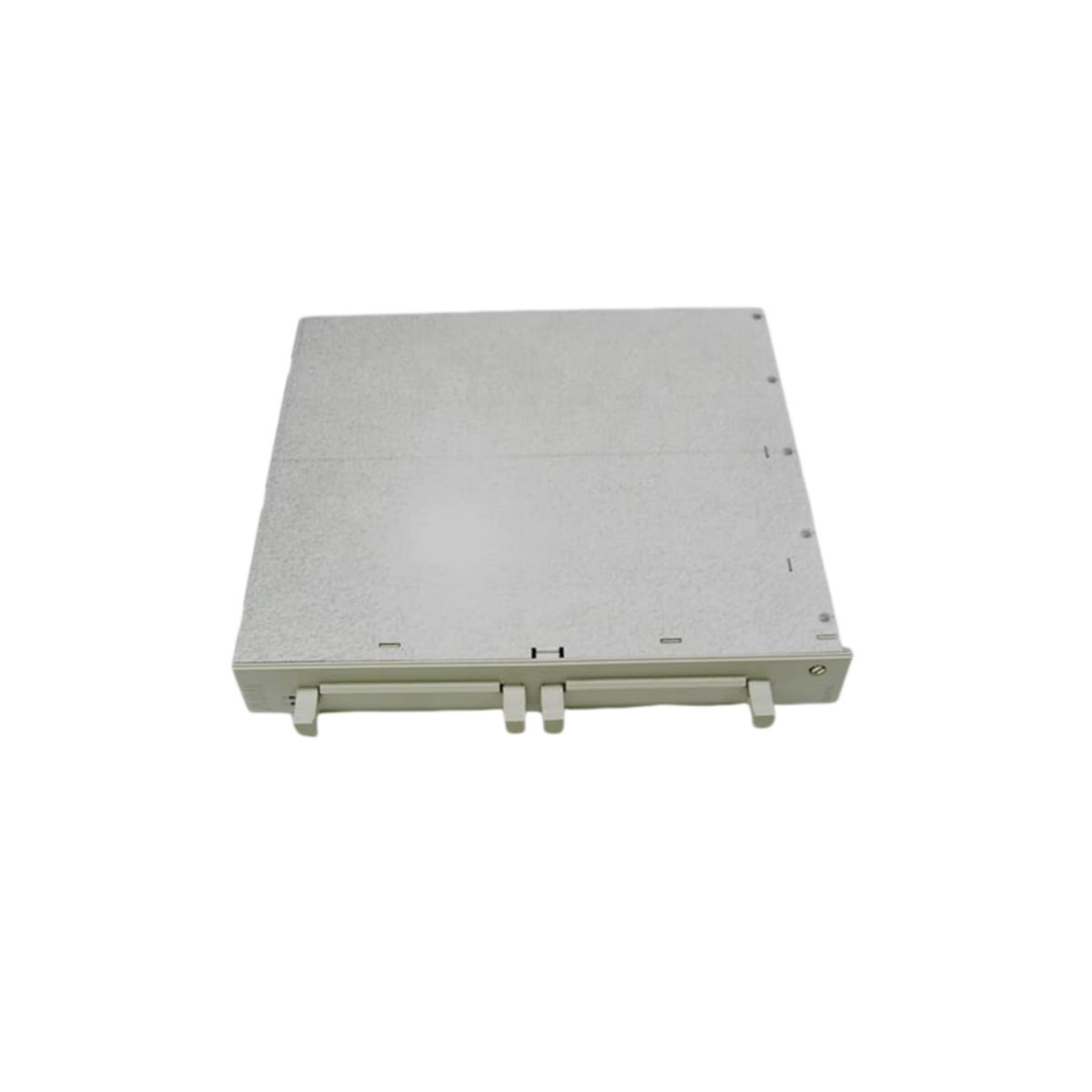

The ABB SC610 3BSE001552R1 provides a mounting platform for I/O submodules inside Advant Controller 100 systems. Engineers choose this carrier when they need flexible slot configuration without an onboard processor. Consequently, the unit simplifies system expansion across existing automation racks.
Physical Dimensions and Weight Data
Cabinet depth often dictates how technicians arrange carrier hardware inside control racks. Therefore, this carrier keeps a compact profile while supporting multiple submodule slots. It weighs roughly 0.8 kg and measures 150 mm in height. Additionally, its width spans 40 mm with a depth of 130 mm.
Interfaces and Connectivity Features
Reliable data exchange depends on secure backplane links between carrier and submodules. The unit provides slot connectors that accept compatible I/O submodules. Furthermore, front-panel indicators let technicians verify module seating instantly. The carrier mounts directly onto standard Advant Controller 100 rack rails.
Component Count and Construction Details
Internal construction shapes both mechanical stability and long-term contact reliability. This carrier carries more than 100 discrete components across its interface circuitry. Moreover, gold-plated slot contacts resist corrosion in humid plant conditions. The housing material meets flame-retardant standards for industrial panels.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Carrier module |
| Series | Advant Controller 100 |
| Dimensions | 150 × 40 × 130 mm |
| Weight | 0.8 kg |
| Mounting | Rack rails |
| Submodule Slots | 4 slots |
| Backplane Interfaces | Redundant |
| Contact Plating | Gold-plated |
| Component Count | 100+ discrete parts |
| Hot-Swap Support | Yes |
| Operating Temperature | 0°C to 60°C |
| Voltage Rating | 24 VDC |
| Isolation Voltage | 500 VDC |
| Housing Material | Flame-retardant |
Carrier Performance and Compliance
Stable slot contacts directly influence overall signal integrity. The carrier maintains low contact resistance across every submodule position. Meanwhile, isolation voltage reaches 500 VDC between adjacent circuits. Diagnostic coverage exceeds 99%, which strengthens fault detection.
Industrial sites also demand strict safety certifications before deployment. The carrier complies with IEC and UL standards for industrial control equipment. In addition, it meets CE requirements for electromagnetic compatibility. These credentials support dependable operation in harsh plant environments.
