Product Overview

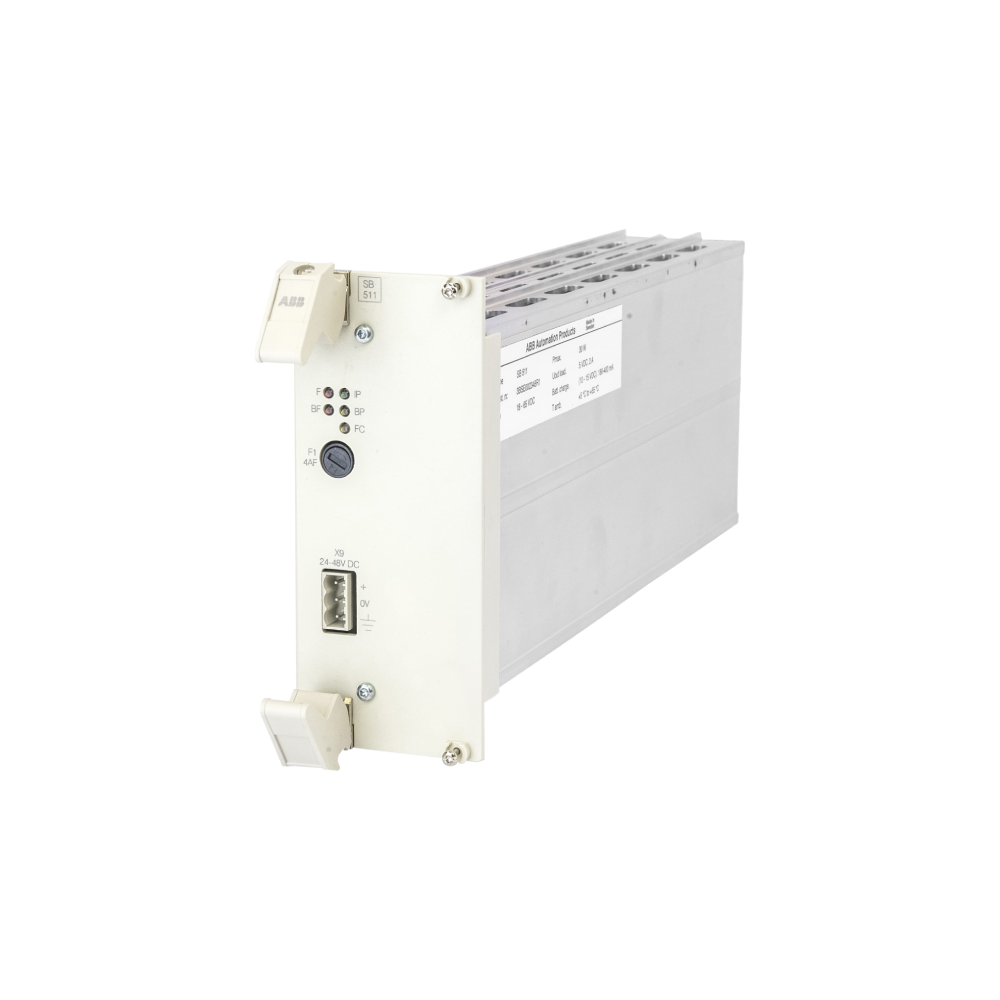

The ABB 3BSE002348R1 SB511 Backup Power Supply is a crucial component in the ABB Advant Master Process Control System. It ensures uninterrupted operation by providing a reliable 24-48 VDC backup power and battery charging functionality. The unit is designed to meet the specific requirements of industrial processes, offering compact dimensions and consistent power for critical systems.
Key Features
- Reliable Power Supply: Provides stable 24-48 VDC output to support sensitive systems.
- Battery Charging: Specifically designed to charge a 12 V, 4 Ah NiCd battery, ensuring backup power during system failures.
- Compact and Efficient: The unit’s small size ensures easy installation even in space-constrained environments.
- RoHS Compliant: The unit meets the EU RoHS directive, ensuring environmental safety.
- Exempt from Certain RoHS Regulations: As per Article 2(4)(c), (e), (f), and (j) of the EU Directive 2011/65/EU, this product is exempt from certain RoHS restrictions.
Technical Specifications
| Specification | Details |
|---|---|
| Product ID | 3BSE002348R1 |
| ABB Type Designation | SB511 |
| Output Voltage | 24-48 VDC |
| Battery Type | Charges 12 V, 4 Ah NiCd battery |
| Spare Fuse | 3BSC770001R50 |
Dimensions and Weight
- Net Depth/Length: 291 mm
- Net Height: 150 mm
- Net Width: 60 mm
- Net Weight: 0.96 kg
Environmental Information
- RoHS Status: Compliant with EU Directive 2011/65/EU
- WEEE Category: Category 5 (Small Equipment)
- Number of Batteries: 0
- SCIP: efb2b27b-fe81-477f-aec8-eede410d5ab3 (Sweden)
Ordering Information
- HS Code: 850440 – Electrical transformers, static converters (rectifiers), and inductors – Static converters
- Customs Tariff Number: 85044082
Applications
The SB511 Backup Power Supply is designed for use in industrial automation systems, particularly for critical operations requiring continuous power. It is an essential part of the ABB Advant Master Process Control System, offering reliable backup power and charging capabilities.
Frequently Asked Questions (FAQ)
Q1: What is the power supply voltage for the SB511?
A1: The SB511 Backup Power Supply provides 24-48 VDC output.
Q2: What type of battery does the SB511 charge?
A2: It is designed to charge a 12 V, 4 Ah NiCd battery.
Q3: Is the SB511 compliant with RoHS regulations?
A3: Yes, the unit is RoHS compliant as per EU Directive 2011/65/EU, but it is exempt from certain RoHS restrictions.
Details
| Weight | 0.96 kg |
|---|
