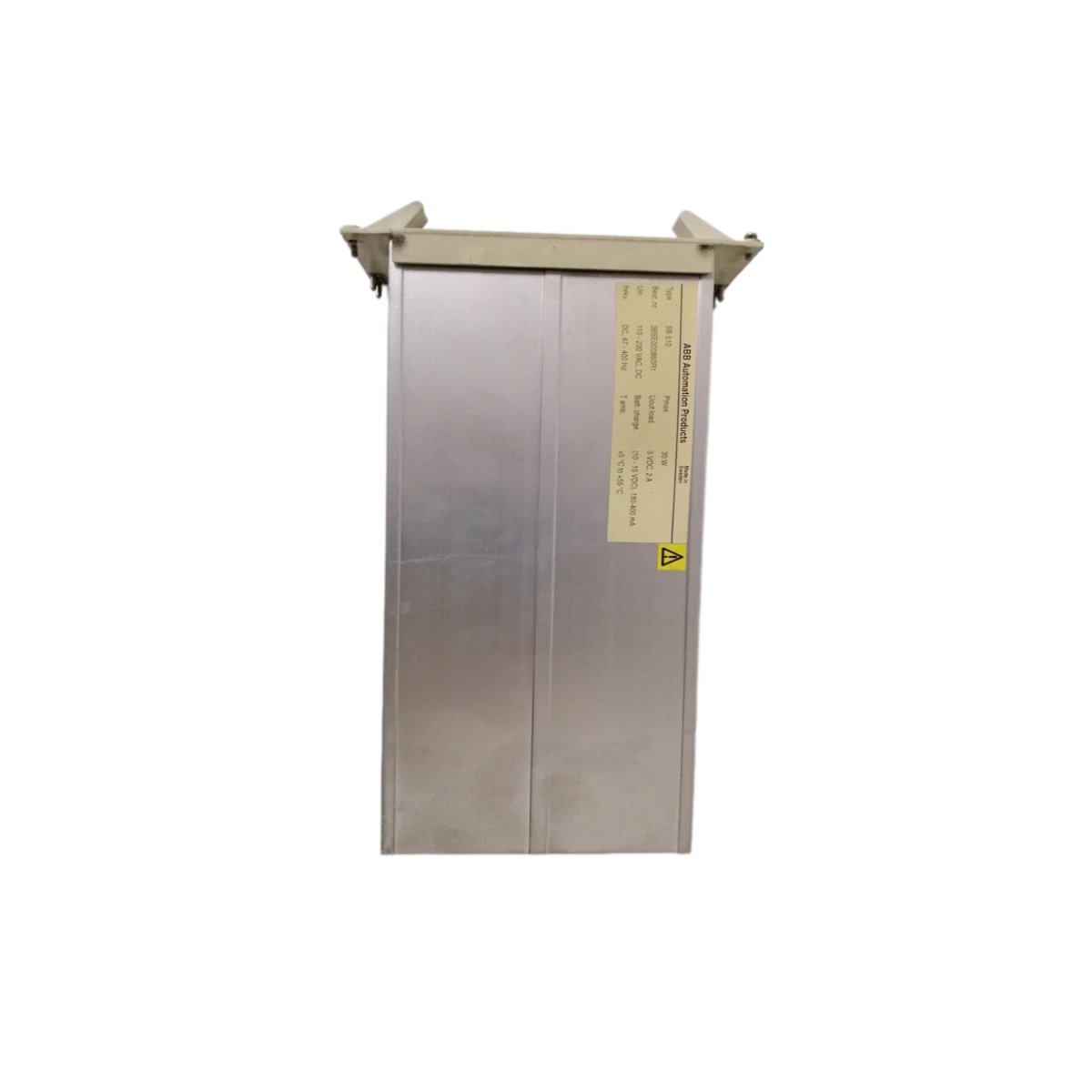

The ABB SB510 3BSE000860R1 provides regulated DC power for ABB Advant Controller 400 series racks. This module converts station input voltage into stable internal logic rails. Engineers choose the SB510 3BSE000860R1 for dependable operation in process automation cabinets.
Key Technical Specifications
Therefore, let us review the primary parameters that define this power supply’s behavior.
| Parameter | Specification |
|---|---|
| Product Type | Rack Power Supply Module |
| Input Voltage | 24 V DC nominal |
| Input Range | 19.2–30 V DC |
| Output Rails | +5 V and ±15 V regulated |
| Output Power | Approx. 100 W total |
| Interface Type | Backplane power connector |
| Connector Count | 1 backplane connector, 1 input terminal block |
| Dimensions | Approx. 250 mm × 20 mm × 260 mm |
| Weight | Approx. 0.90 kg |
| Energy Storage | Internal filter capacitors, no batteries |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Mounting | Rack-mounted chassis slot |
Output Regulation and Interface Design
Consequently, the ABB SB510 3BSE000860R1 regulates two output rails to feed controller logic and analog circuits. It accepts a 24 V DC input across a wide 19.2–30 V DC range. Furthermore, internal filter capacitors smooth ripple and absorb transient load swings.

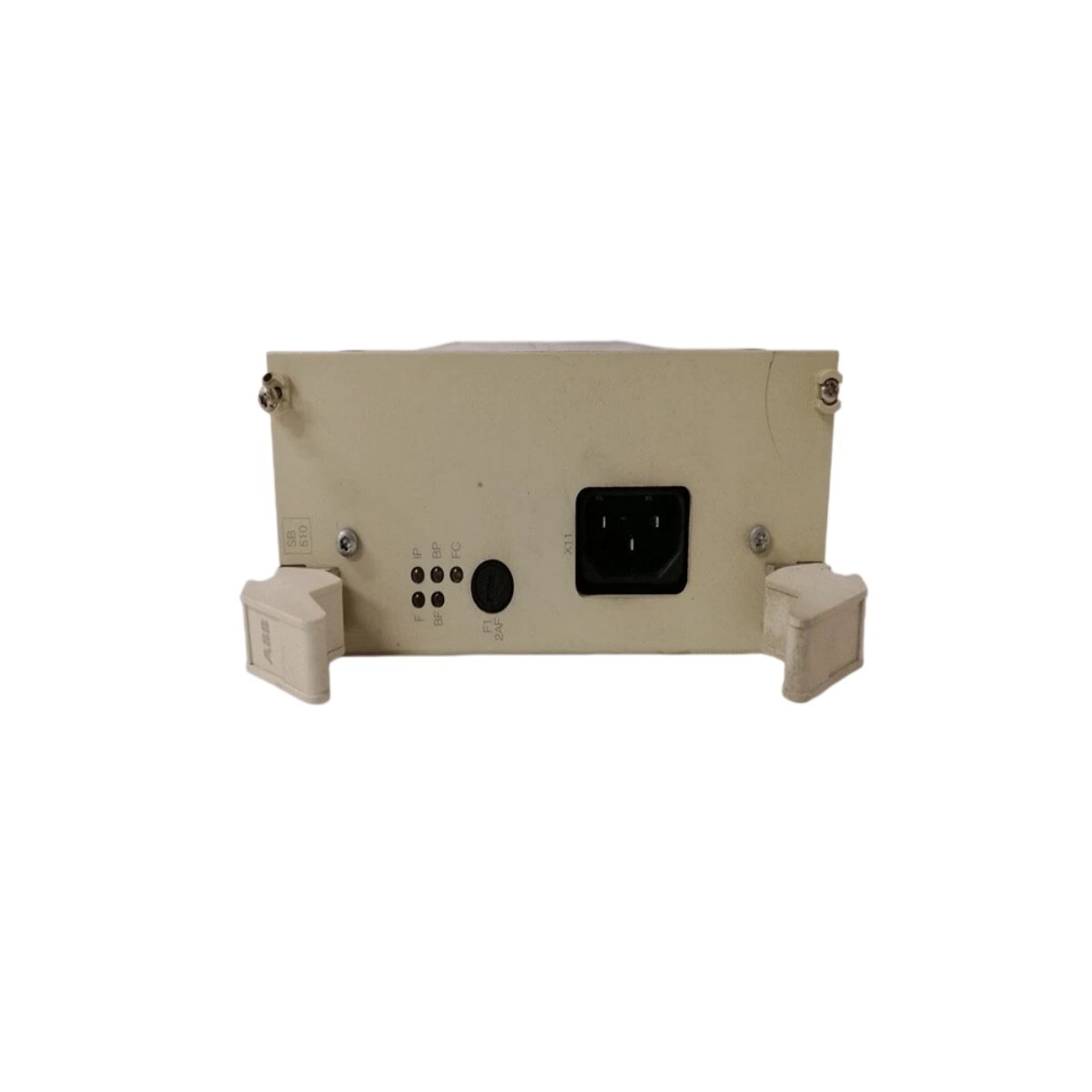

Additionally, the front panel carries status indicators for voltage and fault conditions. This layout helps technicians diagnose issues without removing the module. Meanwhile, the backplane connector distributes power directly to adjacent boards.
Thermal Ratings and Physical Construction
In addition, the SB510 3BSE000860R1 operates reliably from 0°C to 55°C inside control rooms. It also survives storage temperatures between -40°C and 70°C. These ratings suit typical process automation environments.
Finally, the slim 250 mm × 20 mm × 260 mm housing permits dense rack installation. The 0.90 kg assembly includes a sturdy faceplate for secure slot engagement. No battery components require replacement, which reduces long-term maintenance effort.
Details
| Weight | 0.6 kg |
|---|---|
| Dimensions | 180 × 110 × 20 mm |
