Overview

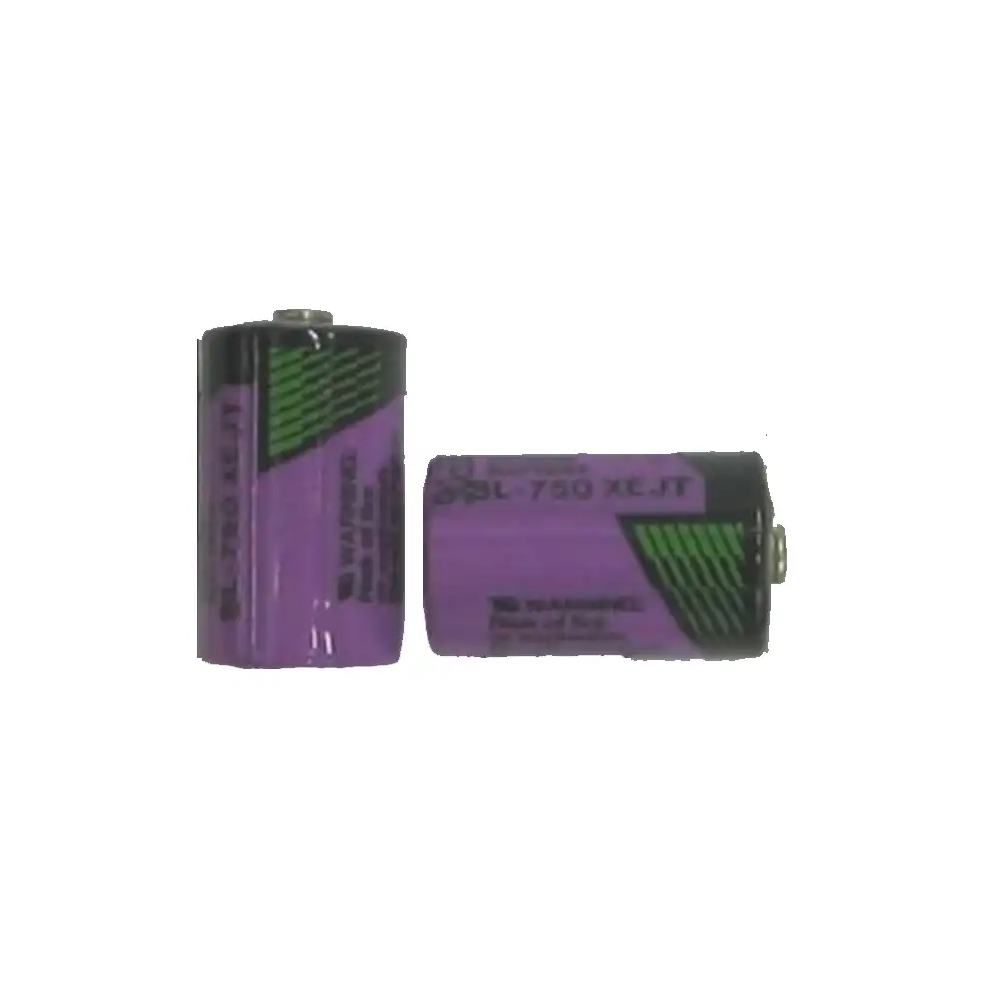

The 3BDM000199R1 SB 808F battery by ABB provides reliable power for RAM buffering in AC 800F controllers.
It consists of two battery cells, ensuring uninterrupted operation of non-volatile variables in control systems.
Moreover, the module is identical to the DSU 08, allowing easy replacement and compatibility with existing setups.
Its lightweight design enables convenient installation and handling in control cabinets.
Functional Highlights
This battery module safeguards system memory and improves automation reliability.
Key benefits include:
- Supports RAM buffering for AC 800F controllers
- Protects non-volatile variables during power interruptions
- Compact dimensions: 26 × 15 × 15 mm, net weight 0.02 kg
- Easy integration as a control system accessory
- Compliant with air freight regulations (maximum 3 batteries per module)
- Durable construction ensures stable operation over time
Technical Data
| Parameter | Specification |
|---|---|
| Model | SB 808F |
| ABB Product ID | 3BDM000199R1 |
| Type | Battery for RAM buffering |
| Quantity | 2 pcs per module |
| Dimensions (D × H × W) | 26 × 15 × 15 mm |
| Weight | 0.02 kg |
| Function | Supports non-volatile variable retention |
| Compatible Controllers | AC 800F |
| Dangerous Goods UN Number | UN3090-PI968 |
| UN Class | Class 9: Miscellaneous Dangerous Substances |
| RoHS Status | Not RoHS Compliant |
| WEEE Category | Product not in WEEE Scope |
| Maximum Order Quantity | 3 per module (air freight rules) |
System Integration
The SB 808F integrates seamlessly into AC 800F automation controllers.
For instance, it maintains RAM data during power loss, improving system resilience and uptime.
Therefore, it is ideal for critical industrial applications where data integrity and safety are essential.
Its compact design simplifies installation even in crowded control panels.
Details
| Weight | 0.02 kg |
|---|
