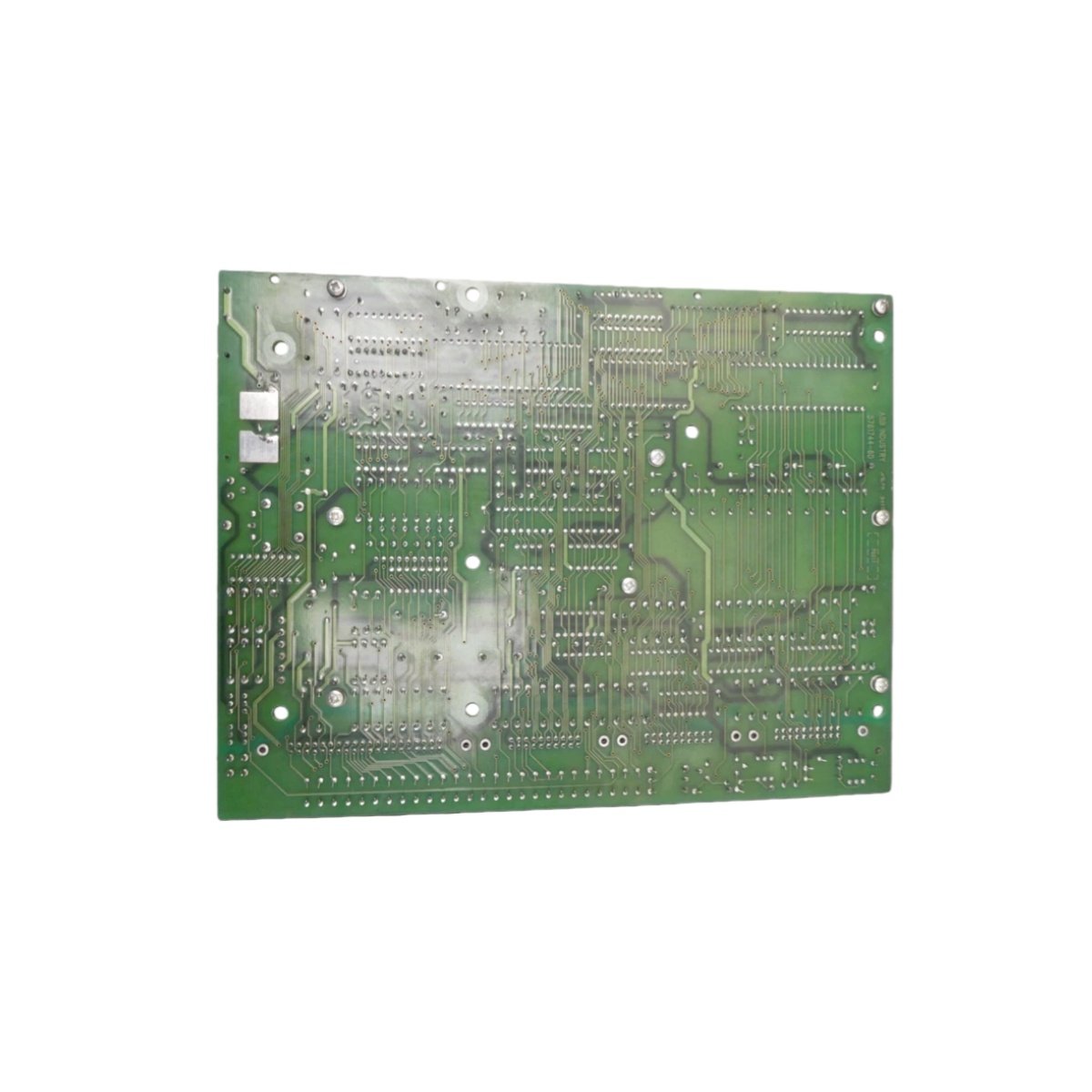

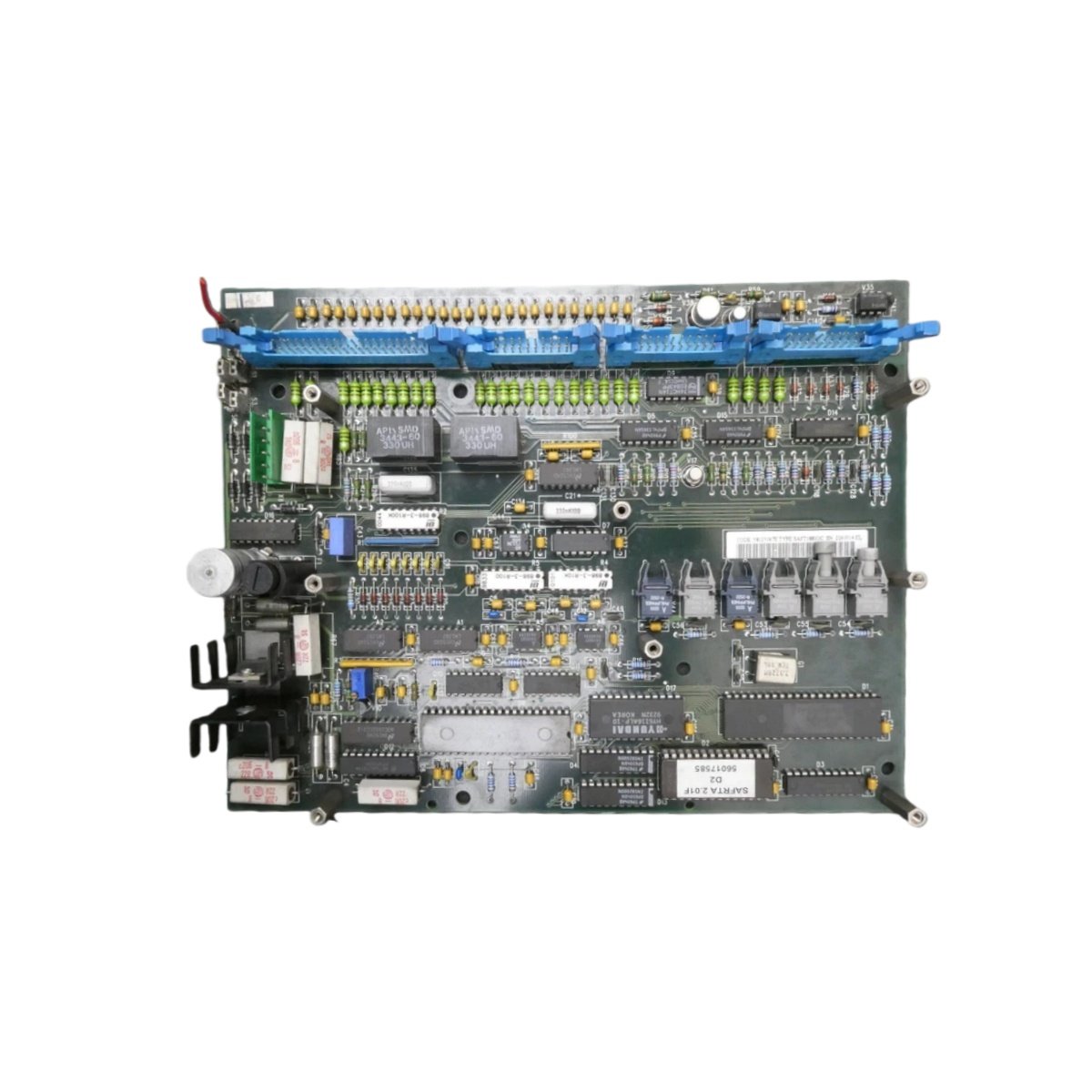

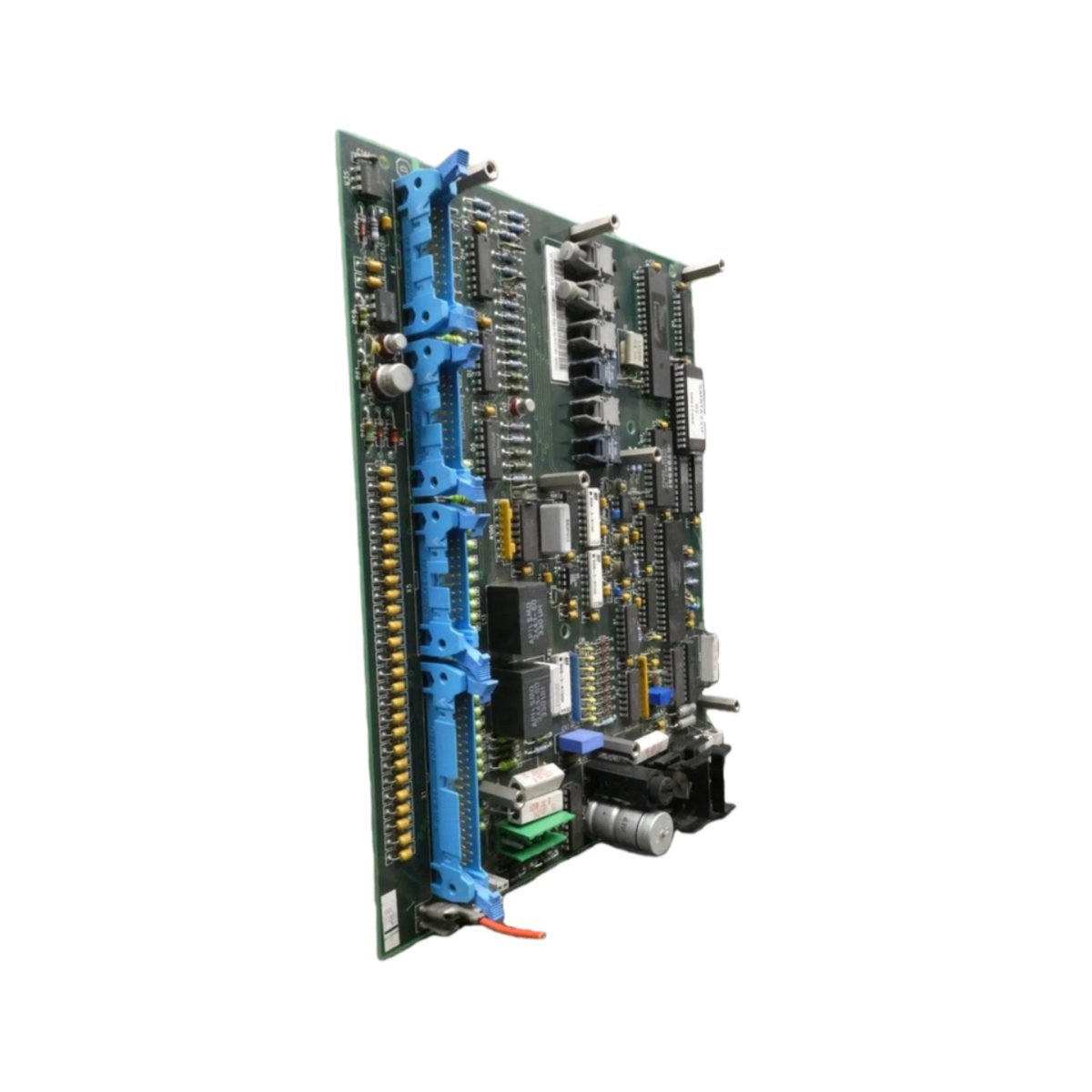

Interface PCB for ABB Industrial Drive Control Systems
The SAFT188IOC SAFT188IOC serves as a dedicated I/O connection board within ABB’s industrial drive and power conversion hardware family. Engineers deploy this printed circuit board to route field signals between external devices and the drive control stage. Consequently, the board delivers dependable signal interfacing for variable frequency drives and converter cabinets.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | SAFT188IOC SAFT188IOC |
| Manufacturer | ABB |
| Product Type | I/O Connection Board |
| Board Format | Printed Circuit Board |
| Mounting | Chassis / Card Cage |
| Connector Type | Edge Connector, Backplane Interface |
| Signal Type | Analog and Discrete I/O Signals |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% (Non-Condensing) |
| Weight | 0.4 kg (Approximate) |
| Handling | ESD Sensitive |
Board Function and Architecture
This I/O connection board links external sensors and actuators with the drive control electronics. It routes analog feedback and discrete command signals through dedicated terminal paths. Therefore, the SAFT188IOC SAFT188IOC maintains accurate signal integrity across the drive interface. Onboard circuits also provide isolation and filtering for noise-sensitive field wiring.
System Integration
Engineers install this board into designated slots within ABB drive control cabinets. The backplane edge connector carries both signal and power connections. Additionally, the board pairs with control and gate driver boards from the same hardware family. Careful alignment during insertion prevents damage to the connector pins.
Compatibility and Service Notes
Operators use this connection board across variable frequency drives, DC converters, and industrial power systems. Engineers must verify the exact model number against system documentation before ordering. Furthermore, the suits repair and replacement projects where original boards have failed. Qualified technicians should handle all installation work with proper ESD precautions. Periodic inspection of connector contacts also helps maintain reliable long-term performance.
Details
| Weight | 0.6 kg |
|---|---|
| Dimensions | 180 × 110 × 20 mm |
