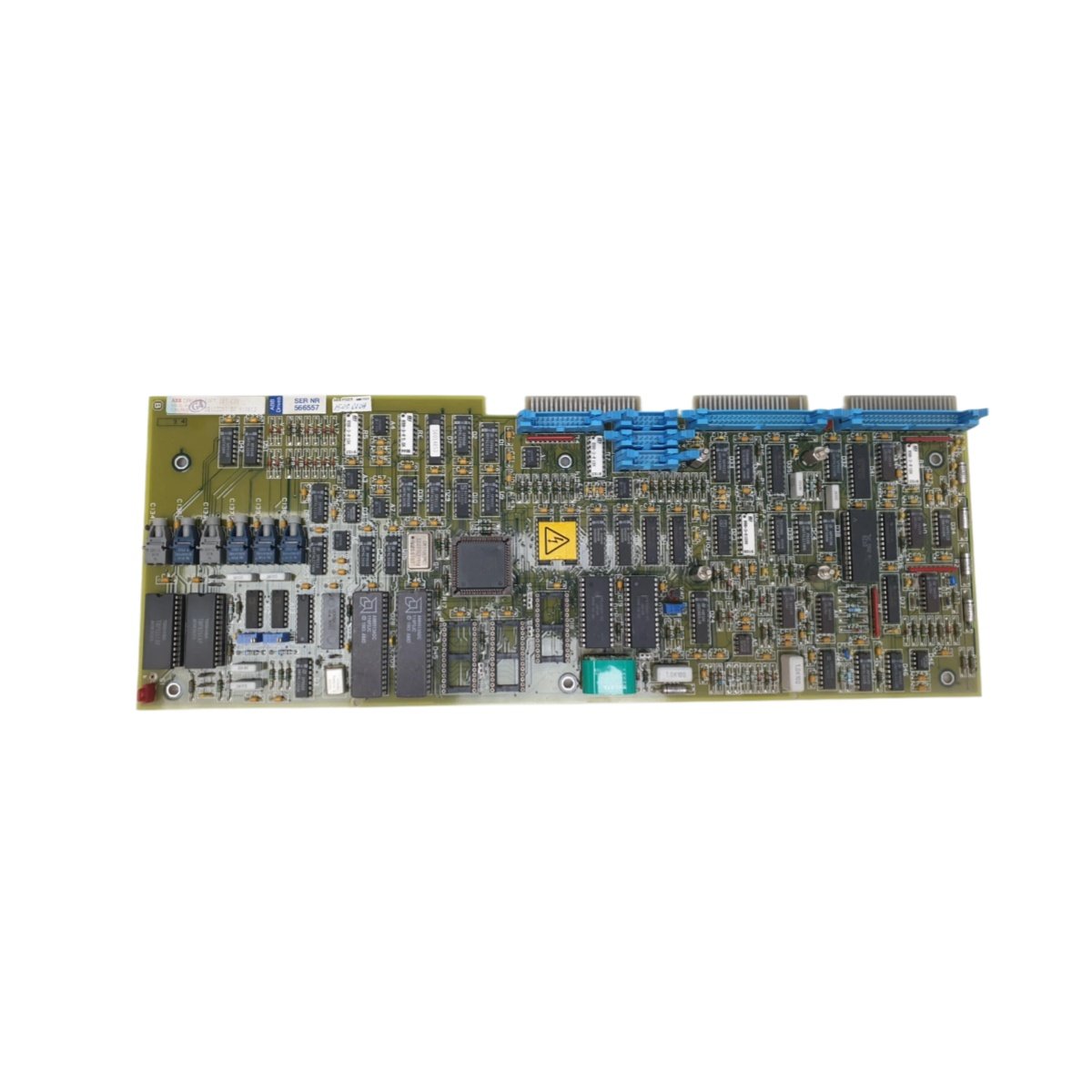

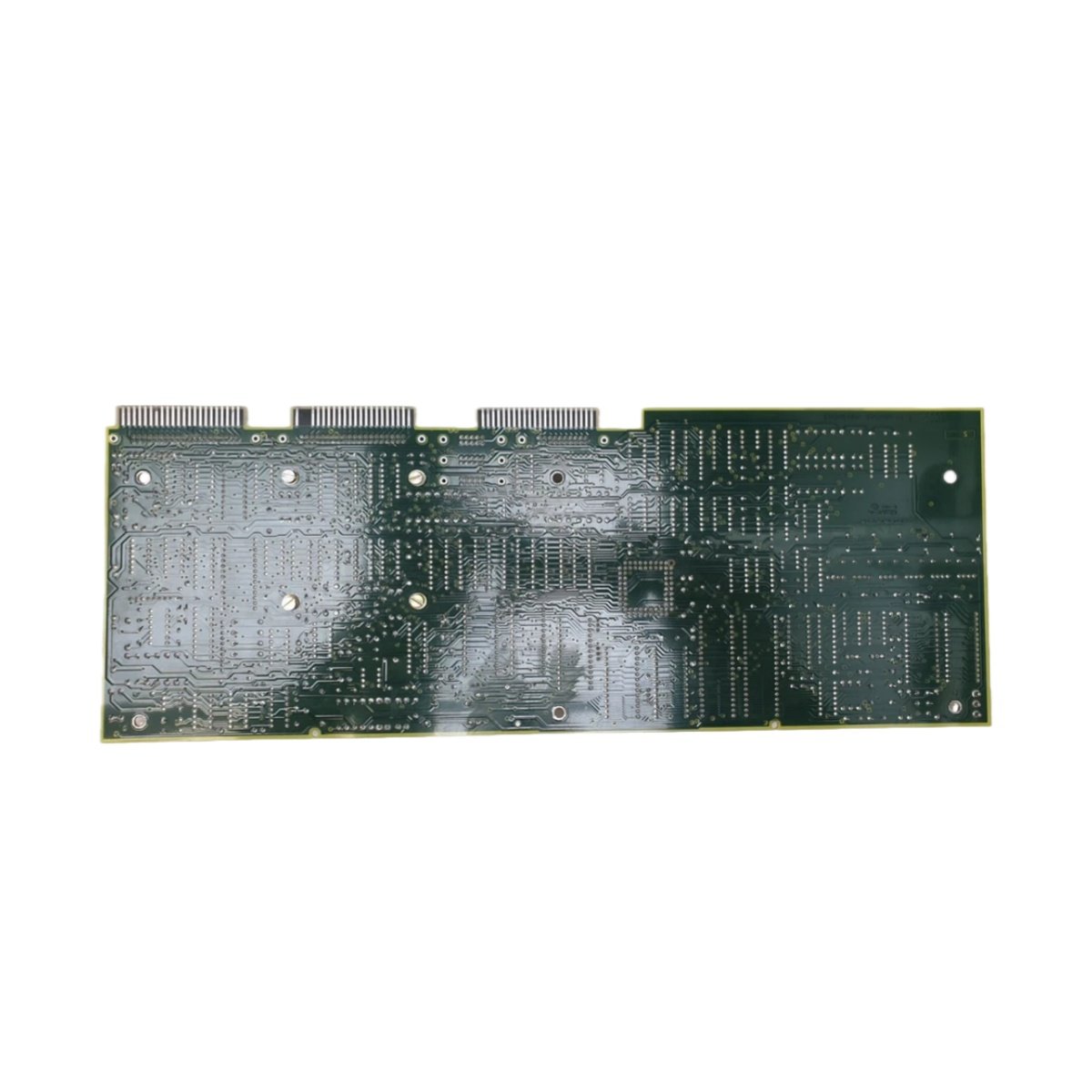

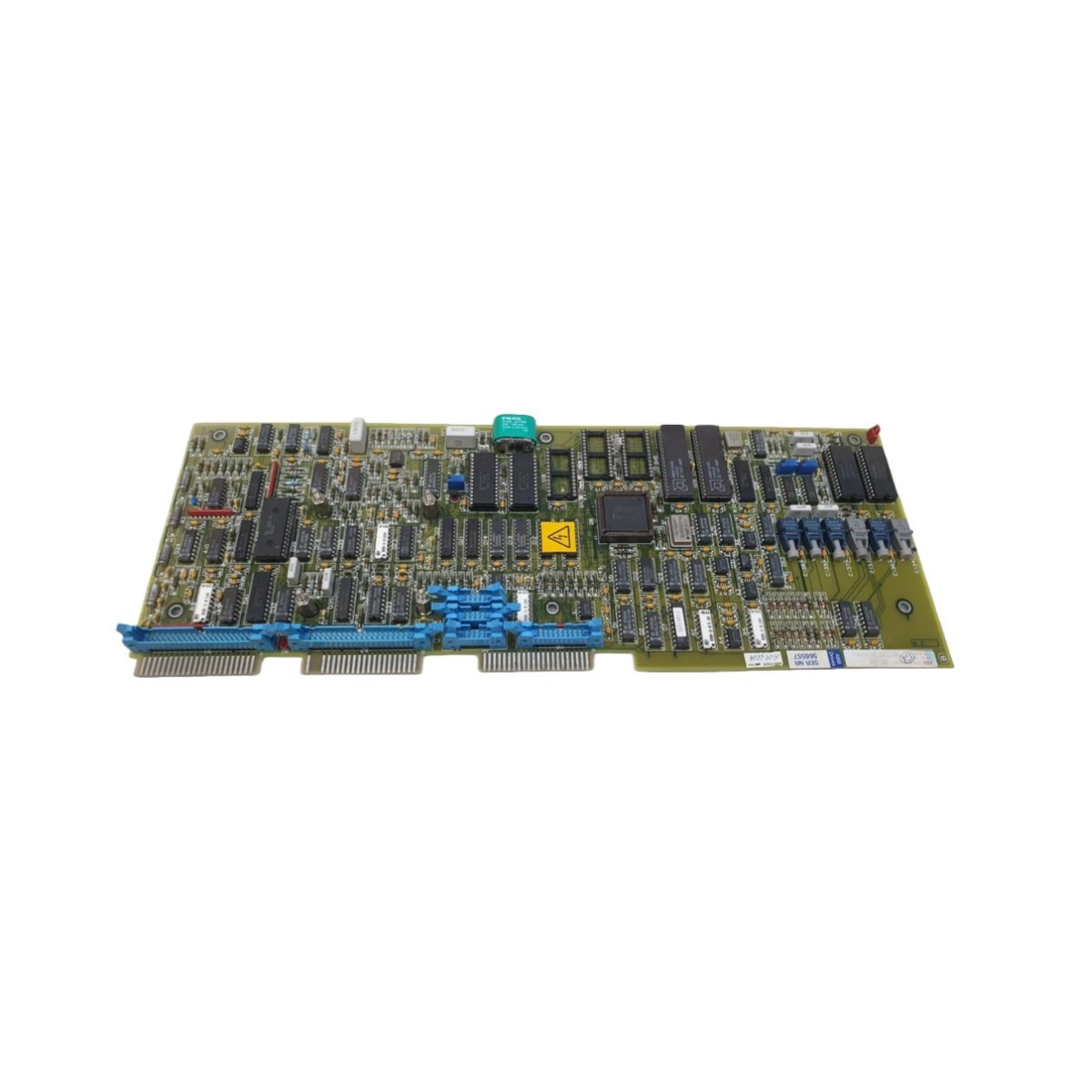

Connection Board for ABB Industrial Drive Power Stacks
The SAFT187CON serves as a dedicated connection board within ABB’s industrial drive and power conversion hardware family. Engineers deploy this printed circuit board to link gate driver signals with the main control stage. Consequently, the board delivers dependable signal routing for variable frequency drives and converter cabinets.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | SAFT187CON |
| Manufacturer | ABB |
| Product Type | Drive Control Board (Connection Board) |
| Board Format | Printed Circuit Board |
| Mounting | Chassis / Card Cage |
| Connector Type | Edge Connector, Backplane Interface |
| Signal Type | Analog and Discrete Control Signals |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% (Non-Condensing) |
| Weight | 0.4 kg (Approximate) |
| Handling | ESD Sensitive |
Board Function and Architecture
This connection board carries gate command signals between the control stage and power modules. It also routes feedback data from current and voltage sensors. Therefore, the SAFT187CON maintains stable communication across the drive power stack. Onboard circuits handle signal conditioning and isolation for reliable switching performance.
System Integration
Engineers install this board into designated slots within ABB drive control cabinets. The backplane edge connector carries both signal and power connections. Additionally, the board pairs with control and interface boards from the same hardware family. Careful alignment during insertion prevents damage to the connector pins.
Compatibility and Service Notes
Operators use this connection board across variable frequency drives, DC converters, and industrial power systems. Engineers must verify the exact model number against system documentation before ordering. Furthermore, the SAFT187CON suits repair and replacement projects where original boards have failed. Qualified technicians should handle all installation work with proper ESD precautions. Periodic inspection of connector contacts also helps maintain reliable long-term performance.
Details
| Weight | 0.6 kg |
|---|---|
| Dimensions | 180 × 110 × 20 mm |
