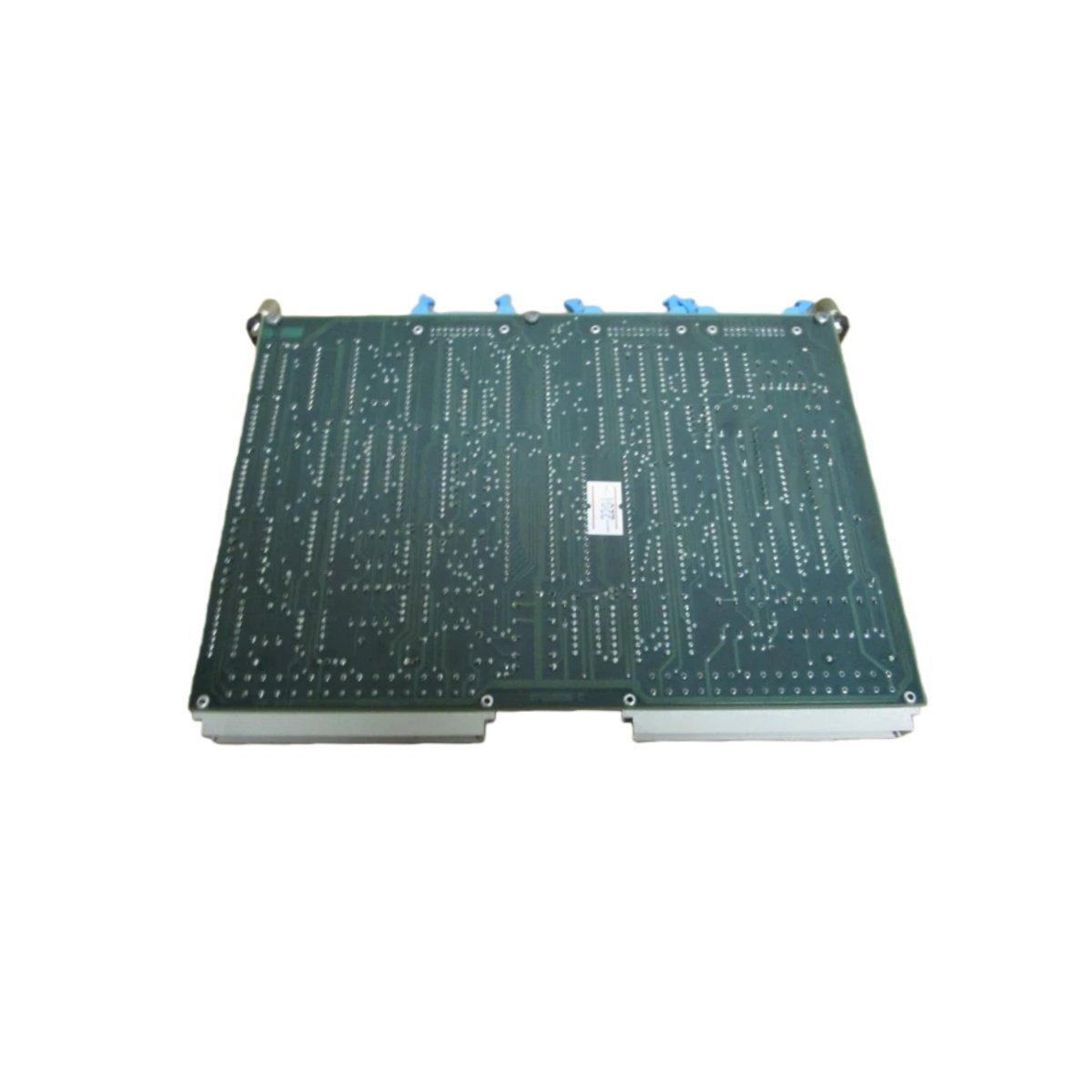

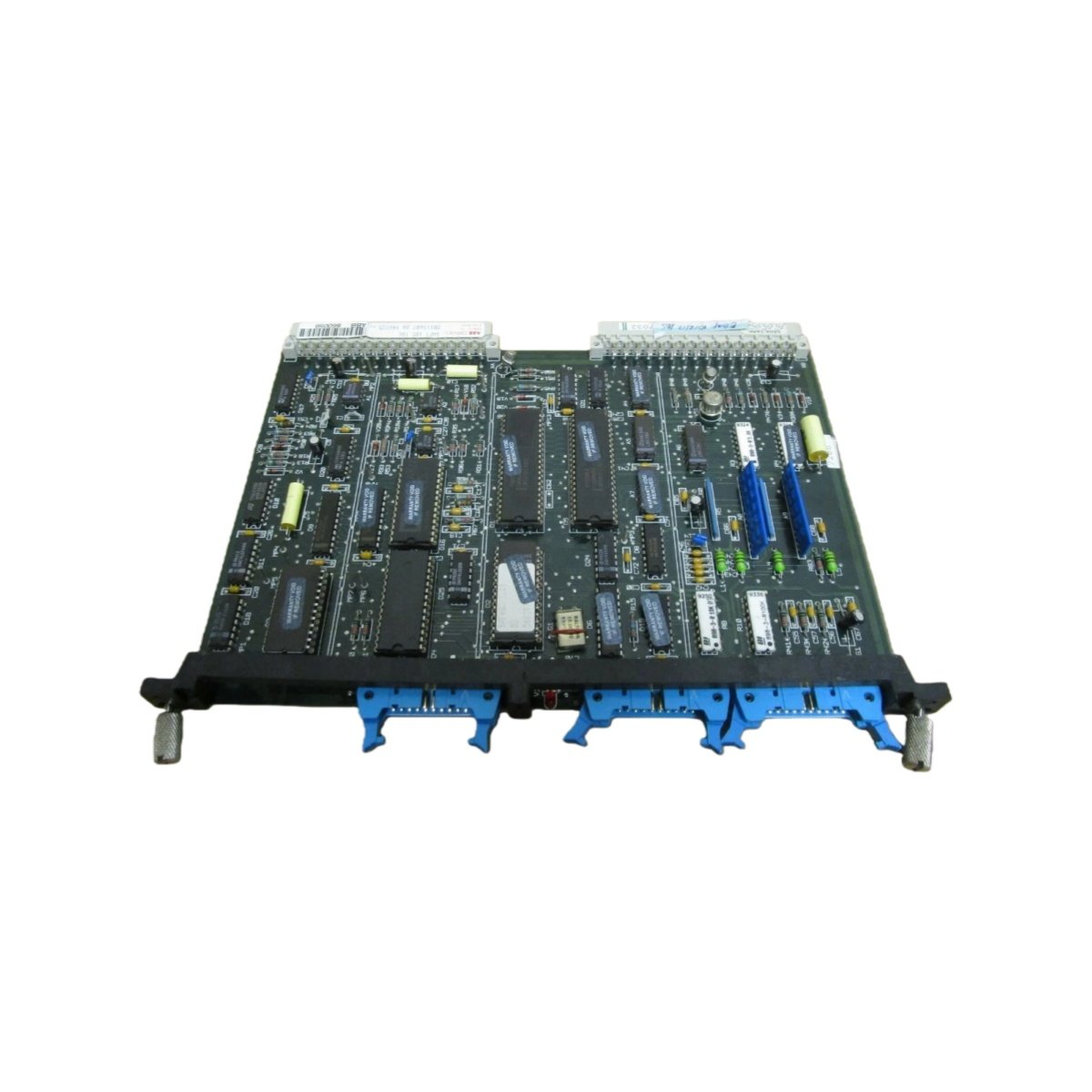

Drive Control PCB for ABB Industrial Power Conversion Systems
The SAFT185TBC SAFT 185 TBC 58119687 serves as a dedicated control board within ABB’s industrial drive and power conversion hardware family. Engineers deploy this printed circuit board to regulate switching sequences and monitor critical drive parameters. Consequently, the board delivers dependable control processing for variable frequency drives and converter cabinets.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | SAFT185TBC SAFT 185 TBC 58119687 |
| Manufacturer | ABB |
| Product Type | Control Board (PCB) |
| Board Format | Printed Circuit Board |
| Mounting | Chassis / Card Cage |
| Connector Type | Edge Connector, Backplane Interface |
| Signal Type | Analog and Discrete Control Signals |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% (Non-Condensing) |
| Weight | 0.4 kg (Approximate) |
| Handling | ESD Sensitive |
Board Function and Architecture
This control board manages firing pulses and feedback loops within the drive power stack. It processes current and voltage signals from sensors throughout the converter. Therefore, the SAFT185TBC SAFT 185 TBC 58119687 maintains stable regulation across varying load conditions. Onboard logic circuits also handle fault detection and protective shutdown sequences.
System Integration
Engineers install this board into designated slots within ABB drive control cabinets. The backplane edge connector carries both signal and power connections. Additionally, the board pairs with gate driver and interface boards from the same hardware family. Careful alignment during insertion prevents damage to the connector pins.
Compatibility and Service Notes
Operators use this control board across variable frequency drives, DC converters, and industrial power systems. Engineers must verify the exact model number against system documentation before ordering. Furthermore, the suits repair and replacement projects where original boards have failed. Qualified technicians should handle all installation work with proper ESD precautions.
Details
| Weight | 0.6 kg |
|---|---|
| Dimensions | 180 × 110 × 20 mm |
