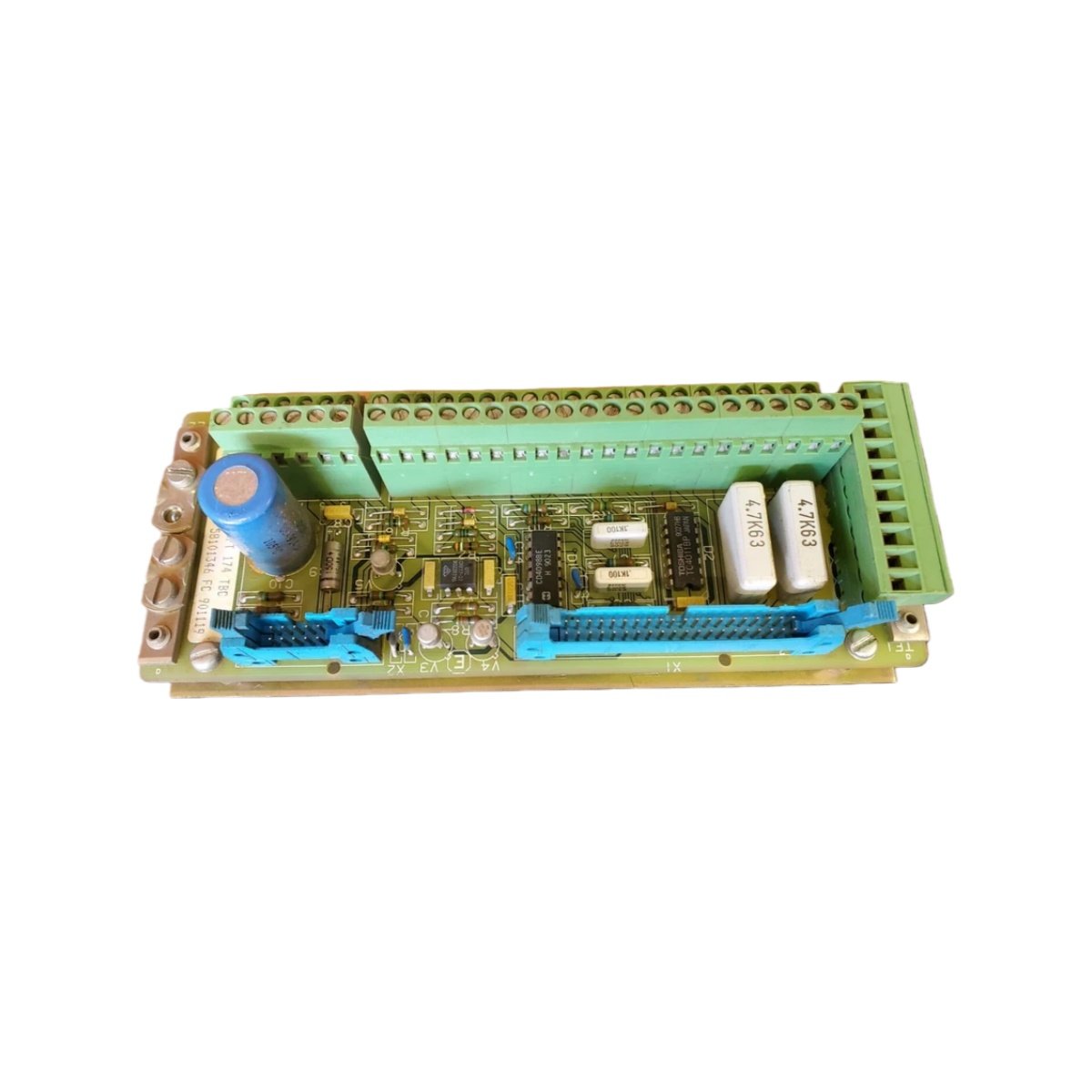

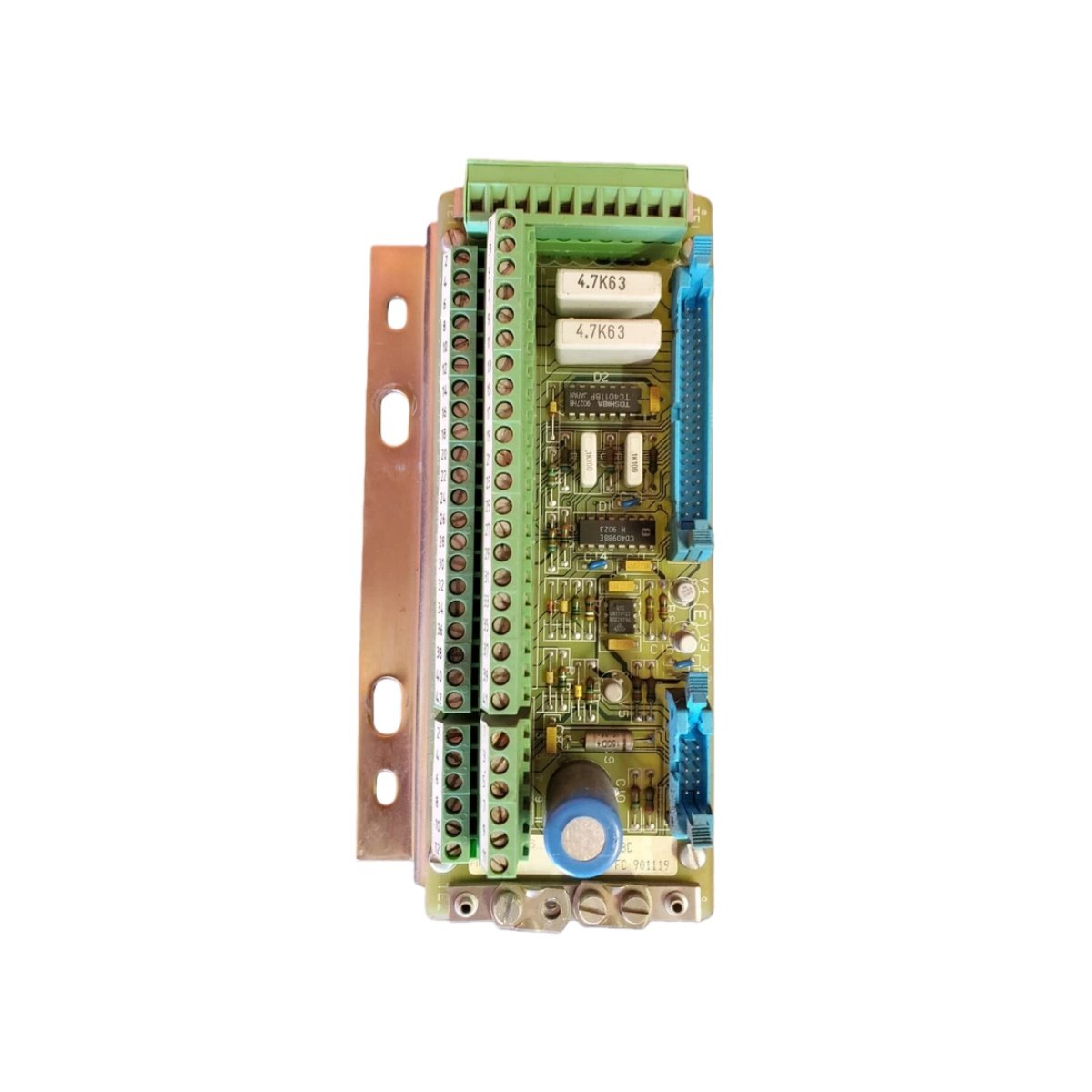

24-Point Termination Interface for ABB Drive and Power Control Systems
The SAFT174TBC 5761445-5E serves as a dedicated terminal block board within ABB’s industrial drive and power control hardware family. Engineers deploy this interface board to route field wiring to controller card cages. Consequently, the board simplifies installation and maintenance by providing clearly labeled termination points.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | SAFT174TBC 5761445-5E |
| Manufacturer | ABB |
| Product Type | Terminal Block Board |
| Termination Points | 24 Screw Terminals |
| Connector Type | Screw Clamp, Field Wiring |
| Mounting | Panel / Chassis Mount |
| Signal Type | Analog and Discrete Signals |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% (Non-Condensing) |
| Weight | 0.4 kg (Approximate) |
| Handling | ESD Sensitive |
Board Function and Wiring
This terminal block board accepts field wiring through twenty-four individual screw clamps. Each terminal carries analog or discrete signals between sensors and the host controller. Therefore, the SAFT174TBC 5761445-5E reduces wiring errors during commissioning and troubleshooting. Clearly numbered positions also speed up cable tracing during routine maintenance.
System Integration
Engineers mount this board on a panel or chassis near the drive cabinet entry point. Shielded cable runs connect the terminals directly to the controller backplane. Additionally, the board pairs with ABB drive and power control platforms. Proper torque on each screw clamp prevents loose connections and intermittent faults.
Application and Service Notes
Operators use this terminal block board across drive systems, power converters, and industrial control cabinets. Engineers must verify compatibility with their specific control platform before ordering. Furthermore, the SAFT174TBC 5761445-5E suits retrofit and replacement projects where original boards have aged. Qualified technicians should perform all wiring work with power removed from the cabinet.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 234 × 99 × 216 mm |
