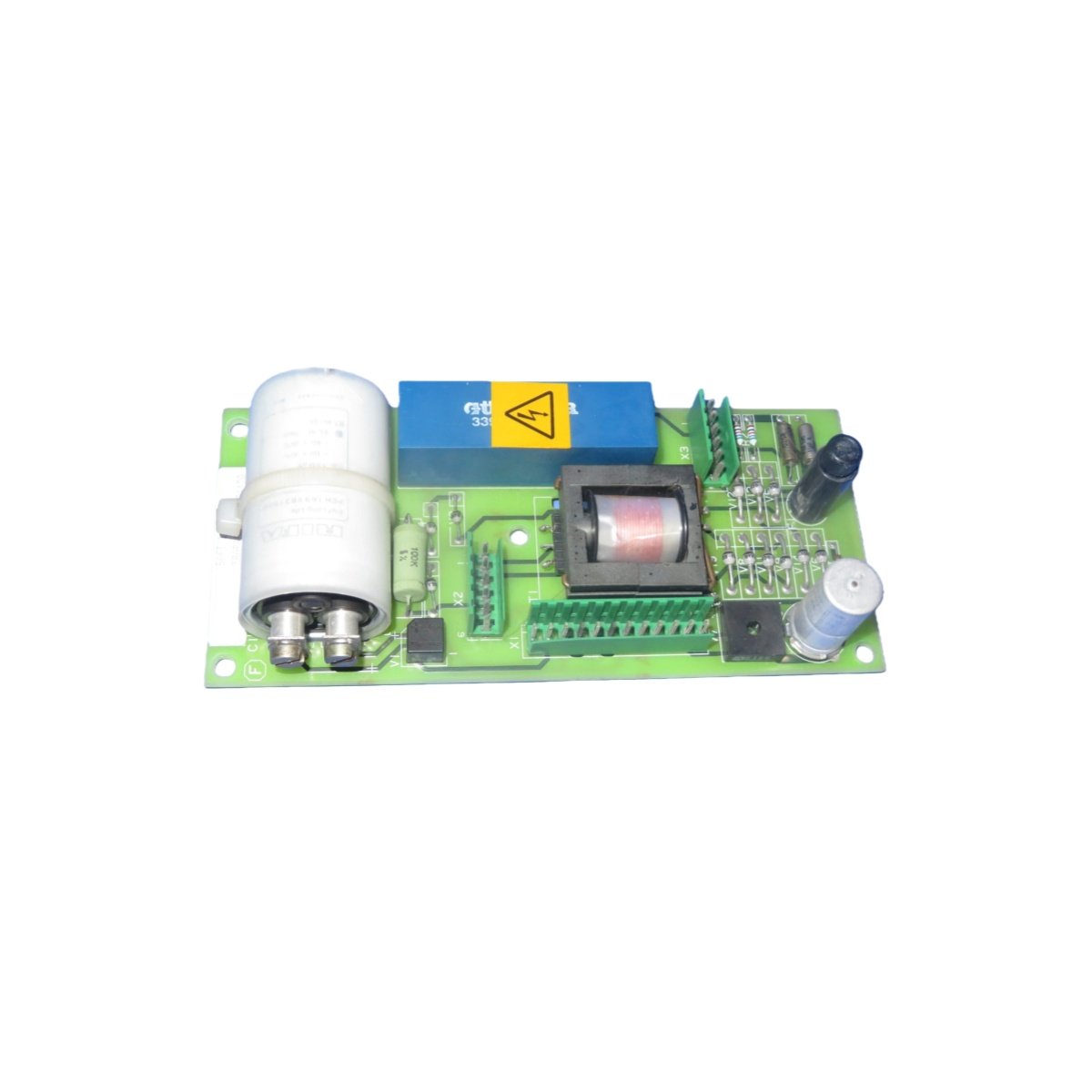

The ABB SAFT167APC AC drive control board manages power distribution and redundant supply coordination within ABB SAFT drive systems. This module acts as the central connection interface, linking multiple power sources to downstream control electronics. Engineers rely on its current path design to handle load fluctuations in demanding industrial environments .
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | SAFT167APC |
| Alternate Model | SAFT 167 APC |
| Part Number | 58096709 |
| Manufacturer | ABB |
| Product Category | Power Connection Board |
| Input Voltage | 24 V DC |
| Output Current | 1.7 A |
| Contact Resistance | ≤ 5 mΩ |
| Dimensions | 7.6 cm × 15.2 cm × 2.5 cm |
| Weight | 0.1 kg (approx.) |
| Operating Temperature | -20°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Protection Rating | IP20 |
Design and Performance Advantages
The board centralizes power connections into a unified interface, which reduces wiring complexity inside control cabinets . Its enhanced current path design withstands high load fluctuations and maintains stable voltage delivery. Furthermore, integrated filtering and overcurrent protection functions safeguard connected modules from electrical faults .
A low contact resistance of ≤5 mΩ minimizes voltage drop under high current conditions . Consequently, the board reduces heat buildup and extends the operational lifespan of connected drive components.
Application Scenarios
Heavy machinery plants use this board for unified power input in complex logic control cabinets . Petrochemical facilities rely on it for reliable power distribution within distributed I/O systems. Coal-fired power plants integrate it for backup power switching inside DCS control cabinets . Metal processing operations benefit from its robust connections in high-vibration environments.
