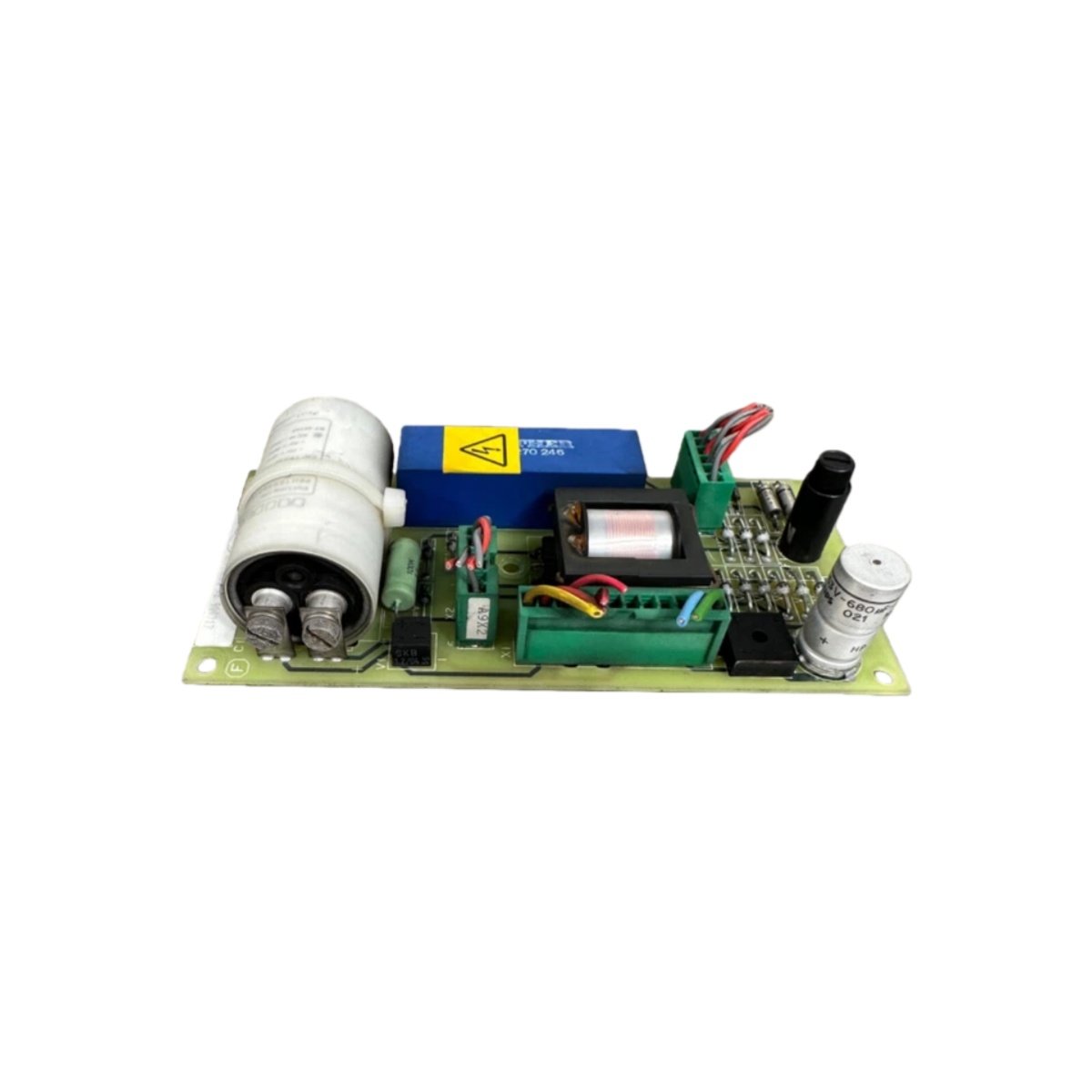

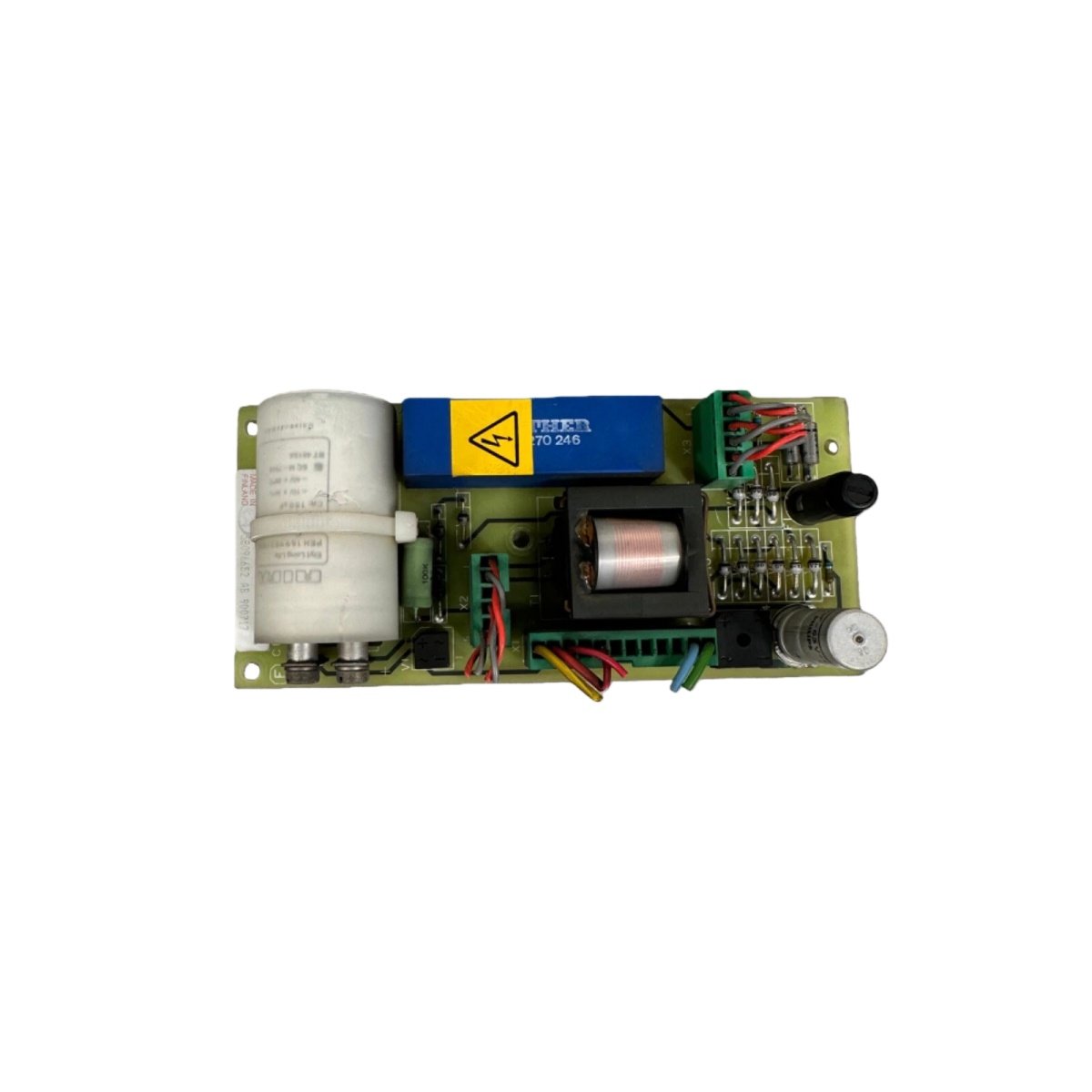

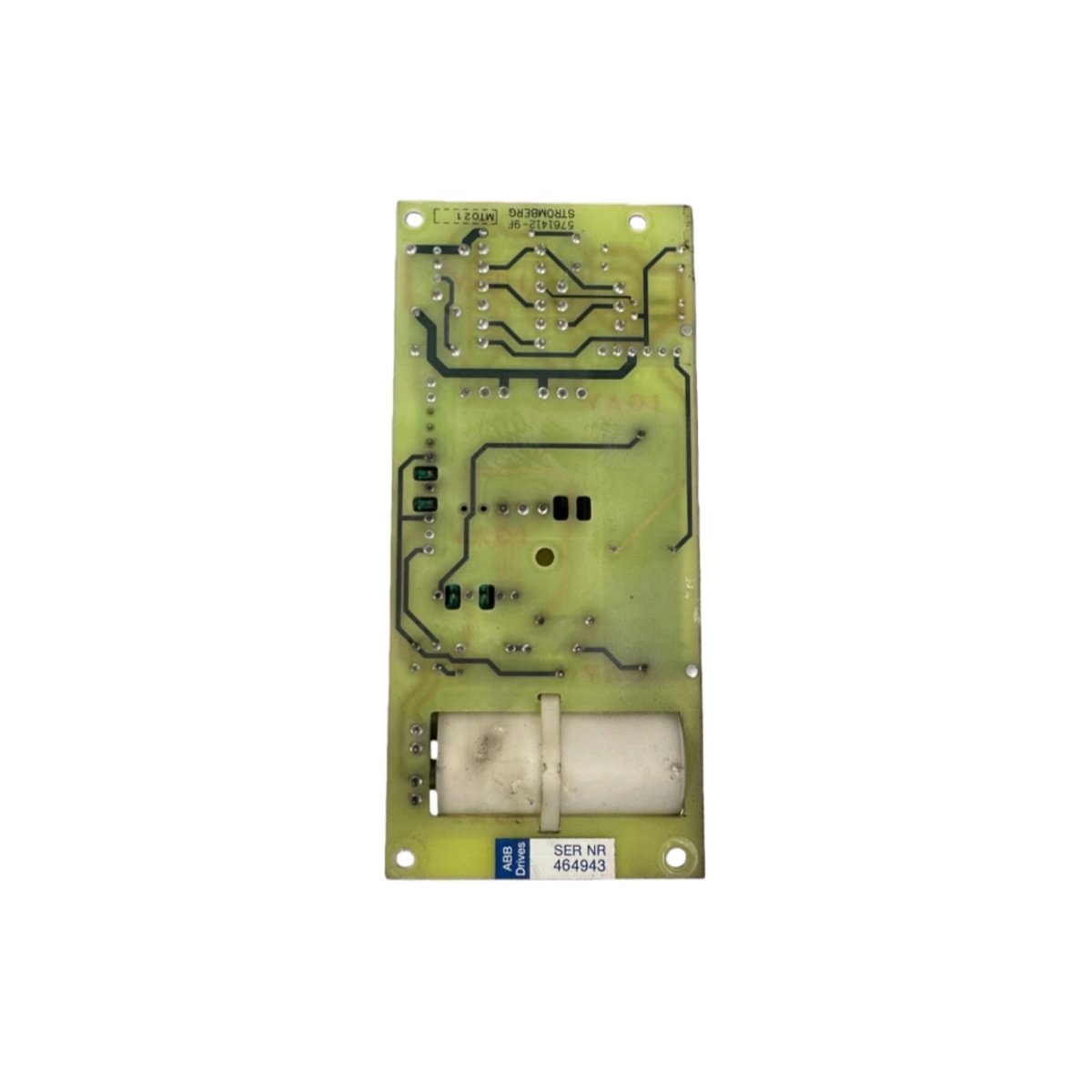

The ABB SAFT166APC power connection board manages power distribution within SAFT 166 terminal block systems. This module replaces scattered daisy-chain wiring with a unified bus architecture for cleaner cabinet layouts. Engineers value its wide input range and integrated protection circuits for reliable industrial power delivery.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | SAFT166APC |
| Alternate Model | SAFT 166 APC |
| Manufacturer | ABB |
| Product Category | Power Connection Board |
| Input Voltage Range | 85-265 V AC, 50/60 Hz |
| Bus Output Voltage | 21-30 V DC |
| Power Consumption | 24 W nominal / 55 W maximum |
| Power Loss | 4 W nominal / 9 W maximum |
| Dimensions | 10.2 cm × 17.8 cm × 5.1 cm |
| Weight | 0.3 kg |
| Mounting | DIN Rail (35mm, TS35) |
| Connection Type | Screw terminal / Quick plug-in |
| Operating Temperature | -20°C to +70°C |
| Protection Rating | IP20 |
Design and Performance Advantages
The board accepts universal AC input from 85 to 265 V, which simplifies deployment across global power standards. Its integrated copper bus bar maintains consistent voltage levels at every connected terminal point. Therefore, sensitive control electronics receive stable power even during inrush current events.
A dual-color LED indicates mains voltage status alongside overload and short-circuit conditions. Consequently, technicians can diagnose power faults without external test equipment. The output circuit provides short-circuit-proof and overload-protected operation for continuous industrial reliability.
Application Scenarios
Steel plants employ this board for main drive control connections in large rolling mills. Power generation facilities integrate it into static starter inverter cabinets for generator excitation systems. Chemical plants rely on the module for signal relay within compressor and electrolytic rectifier units. Mining operations use it for power distribution in high-power hoist systems.
Details
| Weight | 0.6 kg |
|---|---|
| Dimensions | 180 × 110 × 20 mm |
