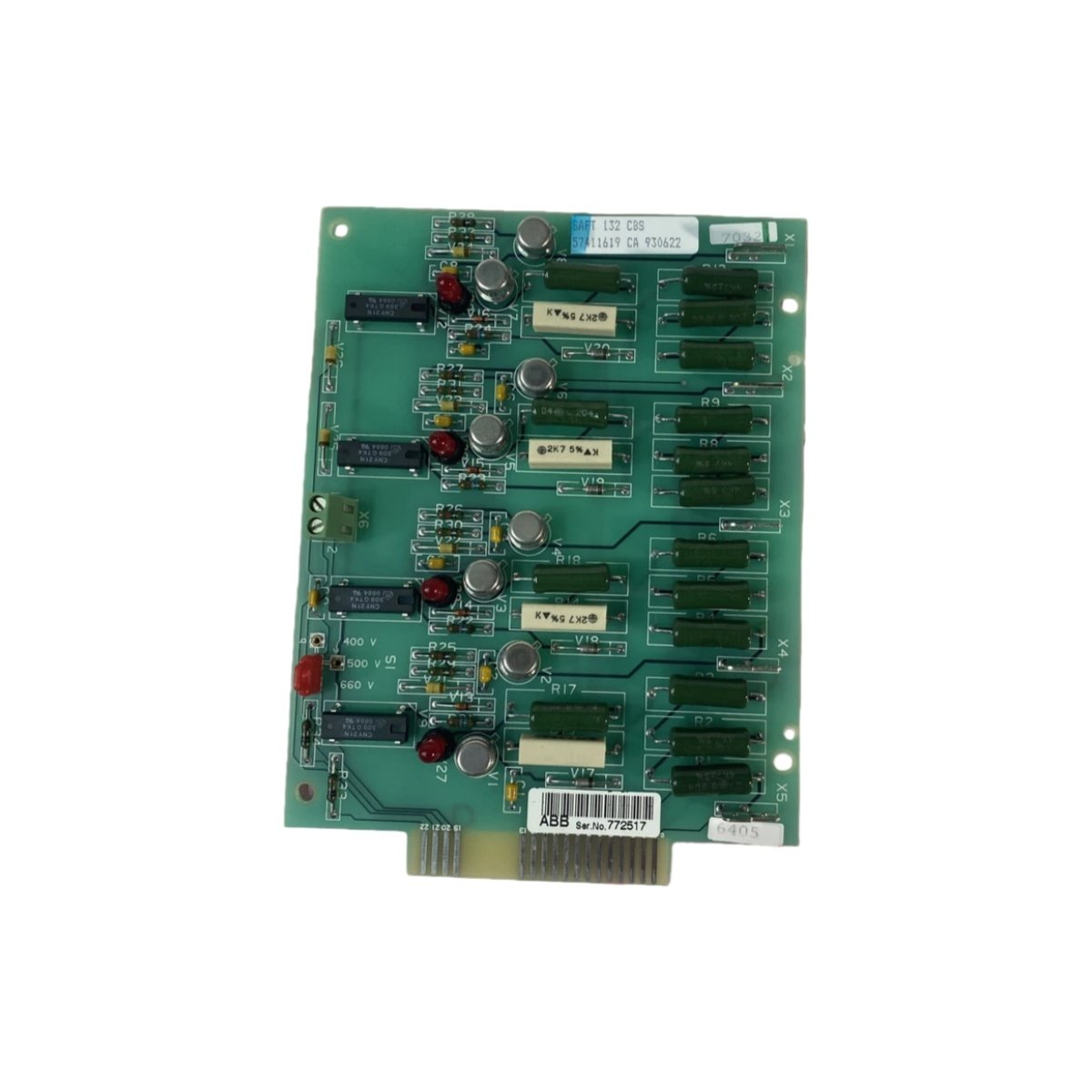

The ABB SAFT132CBS SAFT 132 CBS supervision board provides real-time status acquisition and communication for ABB SAFT series transfer switches. This module acts as the system sensing hub, continuously monitoring switch position, fault alarms, and load current parameters. Engineers rely on its dependable Modbus RTU interface for remote diagnostics and predictive maintenance.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | SAFT132CBS SAFT 132 CBS |
| Part Number | 57411619 |
| Manufacturer | ABB |
| Product Category | Supervision Board |
| Operating Voltage | 24 V DC |
| Current Consumption | ≤ 200 mA |
| Communication Protocol | Modbus RTU (RS-485) |
| Dimensions | 15 × 13 × 1.8 cm |
| Weight | 0.14 kg |
| Operating Temperature | -20°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Protection Rating | IP20 |
| LED Indicators | 8-channel signal status display |
Design Advantages and Functional Features
The board collects switch status through eight signal channels and displays readings via an LED array. Its Modbus RTU protocol supports seamless integration with SCADA and BMS platforms. Moreover, onboard self-diagnostics trigger rapid alarms during voltage anomalies or frequency fluctuations.
High-grade copper conductors and FR4 insulation substrate ensure stable signal transmission. The panel-mount design simplifies integration inside control cabinets. Additionally, the IP20 rating suits enclosed installation environments perfectly.
Typical Application Scenarios
Oil and gas plants use this supervision board for process monitoring and asset management integration. Power generation facilities incorporate it into DCS power consolidation and generator monitoring loops. Steel and metal processing plants depend on it for drive protection and pulse logic status. Furthermore, large paper mills deploy it for precise monitoring of paper machine drive systems.
Details
| Weight | 0.6 kg |
|---|---|
| Dimensions | 180 × 110 × 20 mm |
