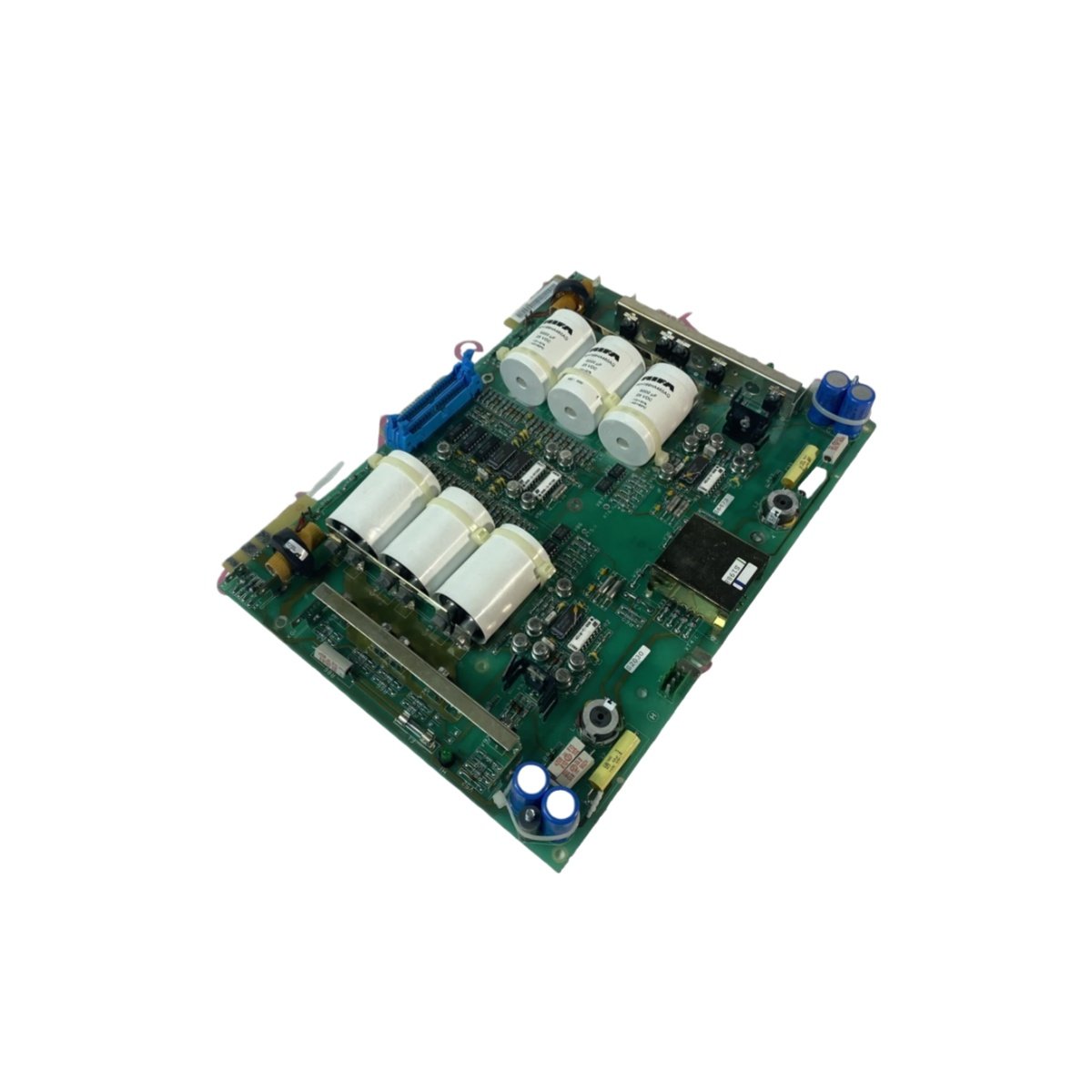

The ABB SAFT123PAC pulse amplifier board conditions low-level control signals for high-power thyristor firing circuits. This board ensures reliable gate drive pulses within ABB drive and power conversion architectures. Engineers value its signal isolation and noise immunity in electrically demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | SAFT123PAC |
| Manufacturer | ABB |
| Product Category | Pulse Amplifier Board |
| Rated Voltage | 250 V |
| Current Rating | 6.3 A |
| Power Source | Backplane (no external cable required) |
| Signal Isolation | Galvanic isolation for noise immunity |
| Output Type | Isolated pulse drive |
| Mounting | Component-level PCB / rack mount |
| Operating Temperature | -20°C to +60°C |
Design and Performance Advantages
The board draws power directly from the motherboard tray backplane, which eliminates external cabling. Its 6.3 A current handling capacity drives high-power thyristors and industrial rectifiers without signal degradation. Furthermore, galvanic isolation separates sensitive control logic from high-voltage power circuits, preventing feedback damage.
Built-in filtering suppresses electromagnetic interference from nearby switching equipment. Consequently, the board maintains signal fidelity even in electrically noisy industrial settings.
Application Scenarios
Steel mills use this amplifier board for thyristor firing in DC drive systems. Power generation facilities integrate it into excitation and rectifier control circuits. Marine engineering applications benefit from its resistance to vibration and electrical noise. Additionally, paper mills rely on precise pulse timing for continuous drive section synchronization.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 280 × 150 × 21 mm |
