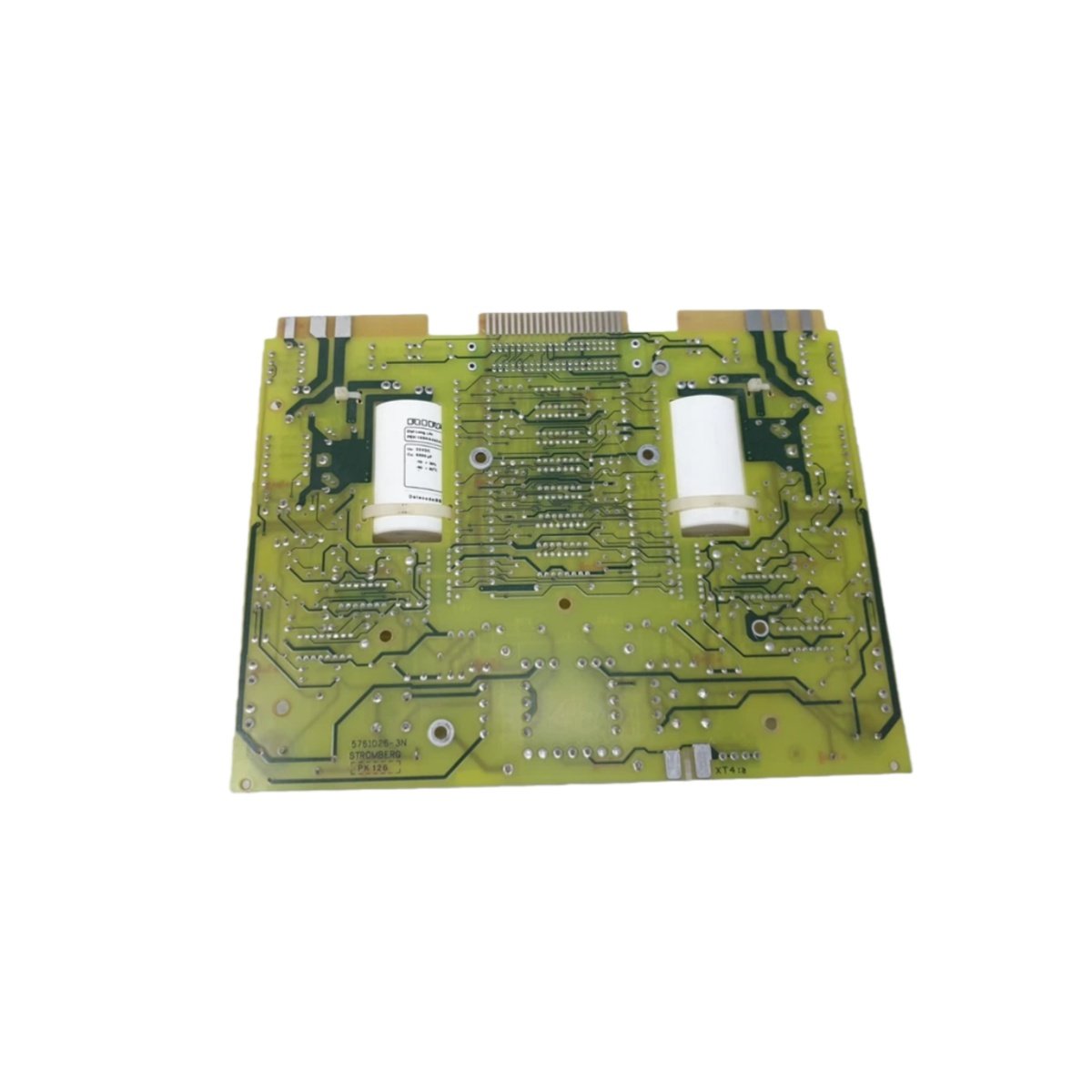

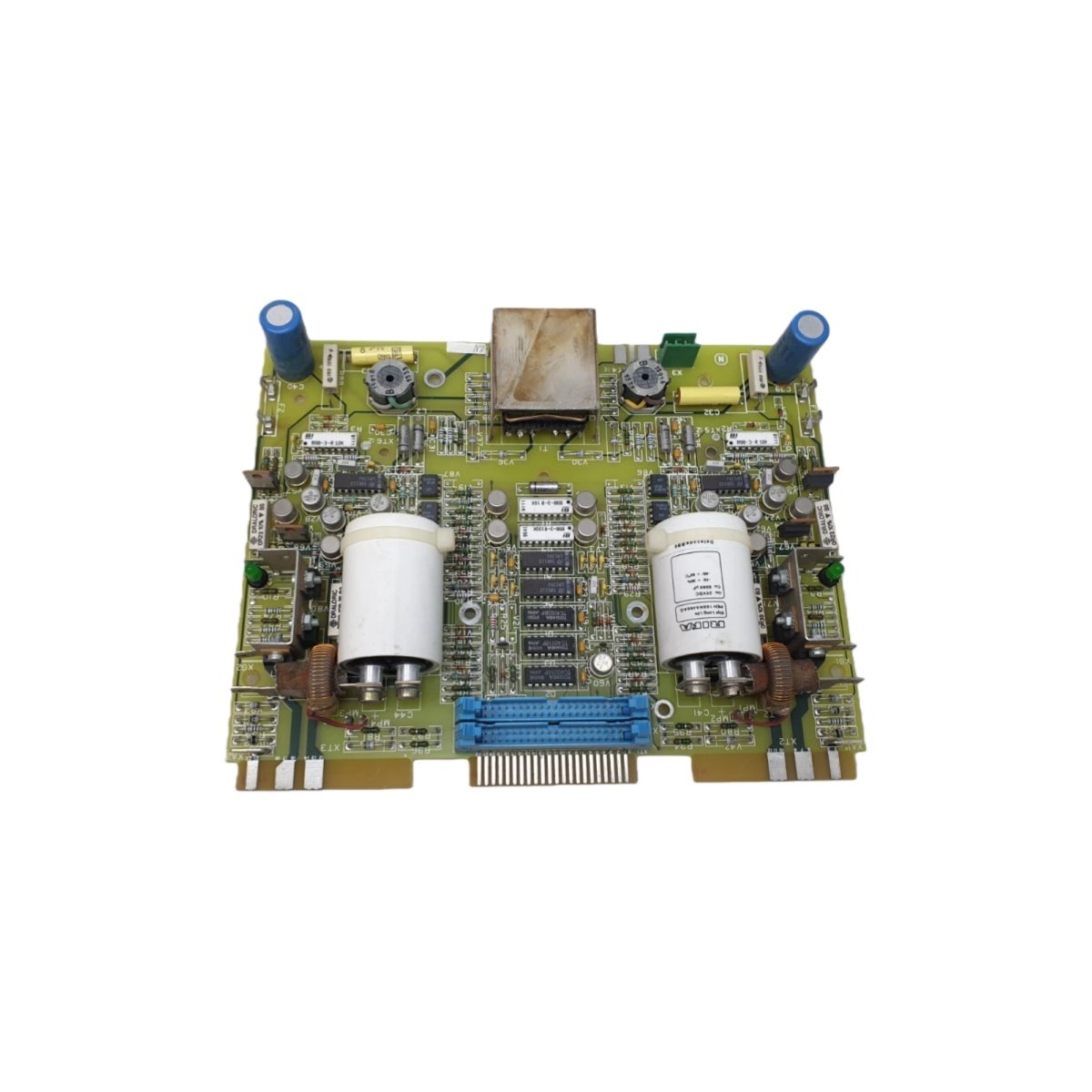

The ABB SAFT121PAC SAFT 121 PAC isolated pulse amplifier board converts low-level control signals into robust gate drive pulses for power semiconductors. This board serves as a critical interface between delicate control electronics and high-power switching devices. Engineers specify it for medium voltage drives where signal integrity directly affects system reliability.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | SAFT121PAC SAFT 121 PAC |
| Manufacturer | ABB |
| Product Category | Isolated Pulse Amplifier Board |
| Dimensions | 23.3 cm × 18.6 cm × 3.6 cm |
| Weight | 0.6 kg |
| Input Signal Voltage | 5 V DC logic level |
| Power Supply | 24 V DC (±10% tolerance) |
| Power Consumption | < 1.5 W |
| Signal Frequency | Up to 100 kHz |
| Input Impedance | > 100 kΩ |
| Response Time | < 1 μs |
| Isolation Voltage | > 6 kV (control-to-power stage) |
| Operating Temperature | -20°C to +60°C |
| Protection Rating | IP20 |
Design and Performance Advantages
The board amplifies weak pulses from sensors and encoders across long cable runs without signal degradation. Its high input impedance of >100 kΩ prevents loading effects on upstream control circuits. Furthermore, the sub-microsecond response time ensures precise timing for thyristor and IGCT gate firing sequences.
The isolation barrier withstands >6 kV, separating low-voltage control logic from medium-voltage power stages. Consequently, electrical noise from switching operations cannot corrupt sensitive command signals. The compact 23.3 cm × 18.6 cm footprint permits direct mounting near power semiconductor modules.
Application Scenarios
Steel mills employ this amplifier board for thyristor firing in DC drive systems. Power generation facilities integrate it within excitation control circuits for synchronous machines. Chemical plants use it for pulse signal conditioning in DCS interface cabinets. Additionally, paper mills rely on the SAFT121PAC SAFT 121 PAC for precise speed control in continuous drive sections.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 234 × 99 × 216 mm |
