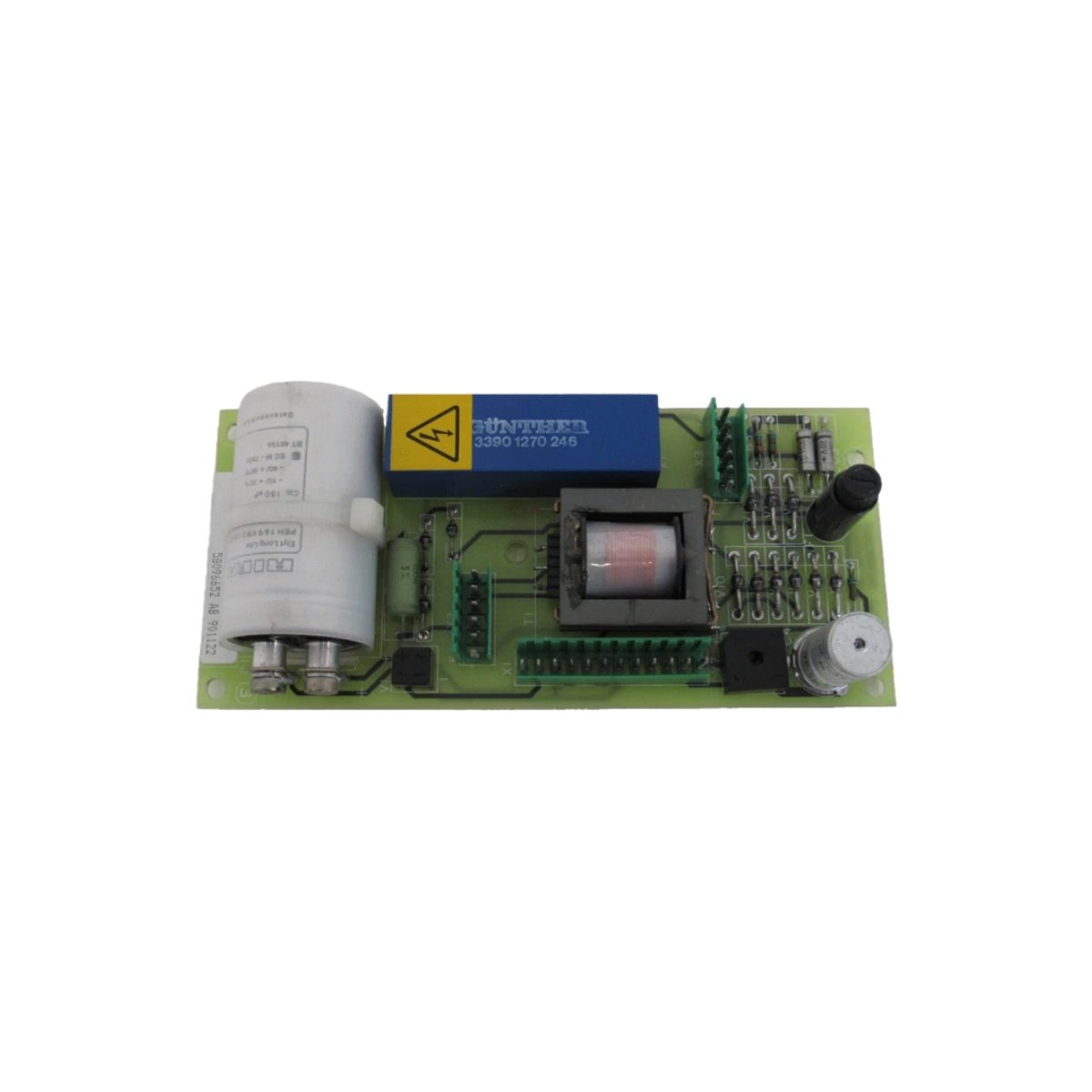

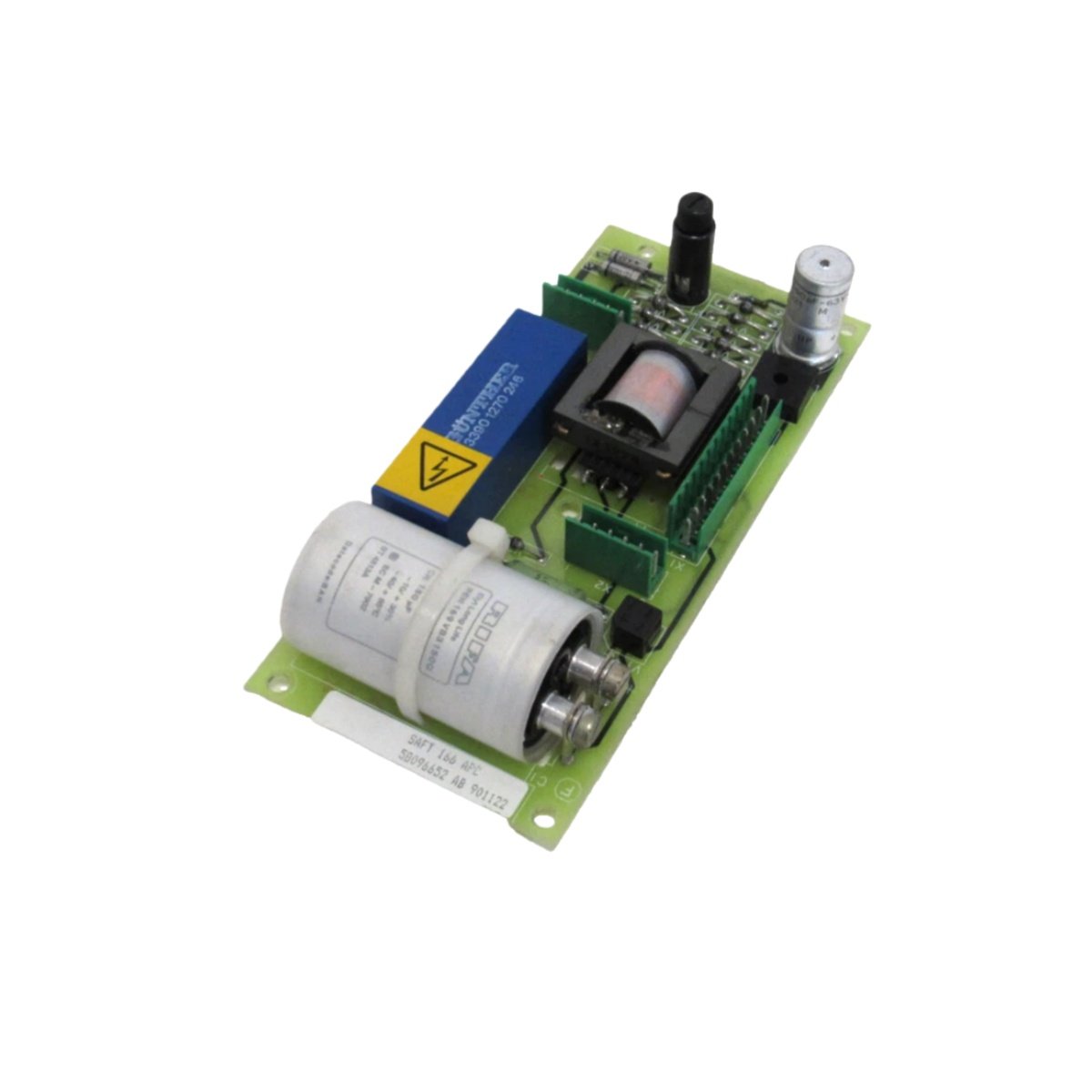

The ABB SAFT 166 APC SAFT166APC power connection board delivers reliable power distribution within industrial automation cabinets. This compact module functions as a centralized interface between main power supplies and downstream control components. Engineers value its straightforward DIN rail mounting and robust connection architecture.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | SAFT 166 APC SAFT166APC |
| Manufacturer | ABB |
| Product Category | Power Connection Board |
| Dimensions | 15.2 cm × 10.2 cm × 5.1 cm |
| Weight | 0.3 kg |
| Operating Voltage | 24 V DC (wide range: 18–30 V DC) |
| Current Rating | 10 A |
| Power Rating | Up to 18 W |
| Connector Count | 8 × 2-pin connectors |
| Connection Type | Screw terminal / M12 quick plug-in |
| Mounting | DIN Rail (35mm, TS35) |
| Operating Temperature | -20°C to +70°C |
| Protection Class | IP20 |
Design and Integration Advantages
The board features a compact footprint that conserves valuable panel space. Its aluminum alloy construction provides durability against industrial vibrations. Furthermore, the integrated bus architecture eliminates messy daisy-chain wiring between terminal blocks.
Eight 2-pin connectors enable flexible power routing to sensors, relays, and controllers. The SAFT 166 APC SAFT166APC supports remote diagnostics for proactive maintenance planning. Consequently, technicians can identify connection issues before they cause unplanned downtime.
Application Scenarios
This power connection board integrates seamlessly into ABB control systems across multiple industries. Steel plants utilize it for main drive control connections in rolling mills. Power generation facilities employ the board within static starter inverters. Chemical plants rely on its signal relay capabilities for compressor control cabinets. Mining operations use it for hoist power distribution systems.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 234 × 99 × 216 mm |
