Product Overview

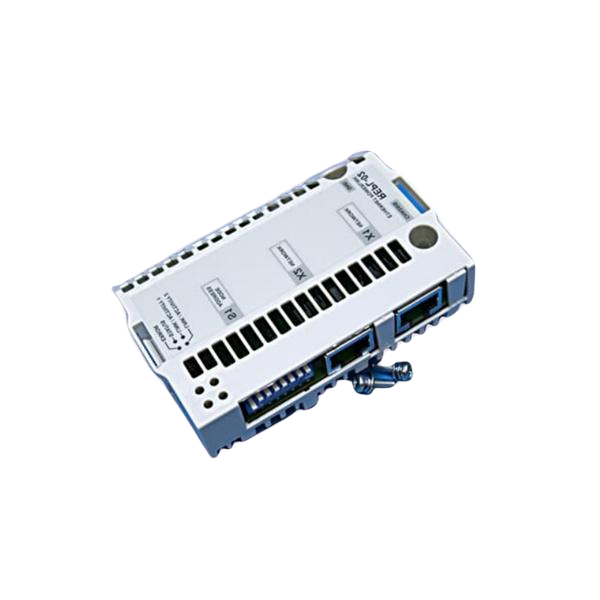

The ABB REPL-02 Ethernet POWERLINK Adapter Module is a high-performance communication interface designed for R-series industrial drives. It seamlessly connects ABB drives to Ethernet POWERLINK networks using CANopen® protocol technology. As a Controlled Node, the REPL-02 executes real-time commands from a master controller, enabling precise synchronization and efficient motion control.
Moreover, this module supports both CANopenDSP 402 and ABB drives profiles, ensuring wide compatibility across automation platforms. Its robust design guarantees stable performance in high-demand environments such as robotics, motion control, and factory automation.
Functional Highlights
- High-Speed Data Exchange: Enables deterministic Ethernet POWERLINK communication for synchronized drive control.
- Flexible Protocol Support: Compatible with both CANopen® and ABB drive profiles for versatile integration.
- Dual Ethernet Ports: Includes X1 and X2 ports for easy daisy-chaining within network topologies.
- Status LEDs: Real-time LINK, ACTIVITY, and STATUS indicators simplify diagnostics and network monitoring.
- Compact Design: Saves panel space while maintaining excellent EMC performance.
In addition, the REPL-02 supports dynamic network configurations, which allows efficient scalability for complex automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | REPL-02 |
| Product Type | Ethernet POWERLINK Adapter Module |
| Supported Protocols | Ethernet POWERLINK, CANopen® DSP 402 |
| Function | Controlled Node |
| Ethernet Ports | 2 (X1, X2) |
| LED Indicators | LINK ACTIVITY, STATUS |
| Node Address Selection | Switch-based configuration |
| Compatibility | ABB R-series Drives |
| Installation | DIN rail or panel-mounted |
| Typical Network Speed | 100 Mbps Full Duplex |
| Origin | Finland / Estonia / India |
Therefore, the ABB REPL-02 provides both performance and interoperability, making it a reliable component for modern automation networks.
Typical Applications
The REPL-02 module is suitable for a wide range of Ethernet-based automation systems, including:
- Motion Control: For precise coordination of actuators, servos, and stepper motors.
- Robotics Integration: Facilitates real-time robot communication with central controllers.
- Factory Automation: Ideal for distributed control systems in production lines.
- Process Monitoring: Used in process industries such as chemical, food, and material handling.
For instance, integrating REPL-02 into an ABB drive network enhances data synchronization and reduces communication latency between drives and PLCs.
