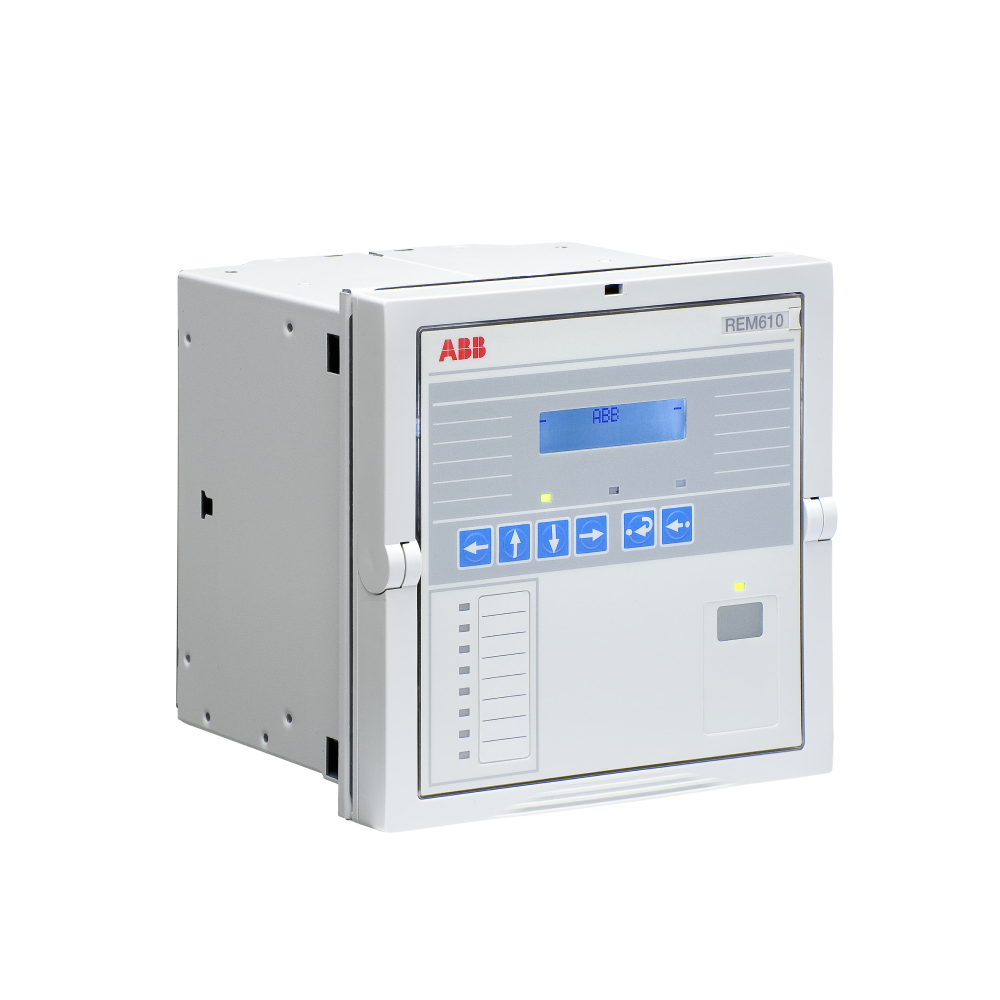

Multifunction Protection for Industrial Motors
The REM610 is a compact and intelligent motor protection relay designed for reliable performance in various industrial environments. It protects medium-voltage motors during startup, running, and shutdown. With a clear LCD display and simple interface, it ensures quick setup and easy local or remote control.
Key Protection Functions
- Three-phase motor startup supervision using thermal stress calculation
- Overcurrent and short-circuit protection with adjustable delay
- Earth-fault and undercurrent (loss of load) protection
- Thermal overload and phase unbalance detection
- Phase reversal monitoring
- Breaker failure protection and restart inhibit logic
- Temperature monitoring with RTD/PTC sensor support
- Emergency start feature for critical scenarios
Inputs & Outputs
- 4 precise current inputs
- 3 digital inputs (expandable with RTD module)
- 3 power output contacts + 2 configurable signal outputs
- Digital time-sync input for system coordination
Built-in Disturbance Recorder
The REM610 includes a recorder that logs up to 80 seconds of data from 4 analog and 8 digital channels, supporting both internal and digital trigger inputs. Adjustable sampling ensures accurate diagnostics.
User-Friendly HMI
- Alphanumeric backlit LCD screen
- 8 programmable status LEDs
- Easy navigation with password-protected access
- Multi-language support
Communication Options
- Front optical port for local access
- Rear port with support for Modbus, IEC 60870-5-103, or SPA-bus
- Battery-backed real-time clock for reliable logging
Applications
Ideal for motors in pumps, fans, mills, crushers, and conveyor systems. The REM610 supports both circuit breaker and contactor-controlled drives and also offers feeder and transformer protection.
Protection Codes (IEC / IEEE)
| Function | IEC Code | IEEE No. |
|---|---|---|
| Thermal overload | θ> | 49M |
| Startup supervision | Is²t | 48/14 |
| Overcurrent | Is> | 51/14 |
| Short-circuit | I>> | 50/51 |
| Phase unbalance | I2> | 46 |
| Phase reversal | REV | 46R |
| Undercurrent | I< | 37 |
| Earth-fault | I0> | 50N/51N |
| Start time limit | ∑tsi | 66 |
| Breaker failure | CBFP | 62BF |
| Temperature (RTD/PTC) | ThA>, ThB> | 49/38 |
Technical Specifications
- Nominal Voltage: 24V DC
- Nominal Current: 100mA
- Display: LCD with backlight
- Relay Type: Multifunction motor protection
- Communication: Modbus RTU/ASCII, IEC 60870-5-103, SPA-bus
- Mounting: Compact, panel-friendly form factor
Dimensions & Weight
| Component | Size |
|---|---|
| Width (Frame) | 177 mm |
| Width (Case) | 164 mm |
| Height (Frame) | 177 mm (4U) |
| Height (Case) | 160 mm |
| Depth (Case) | 149.3 mm |
| Weight (Relay) | ~3.5 kg |
| Weight (Spare Unit) | ~1.8 kg |
Available Accessories
| Accessory | Order Code |
|---|---|
| Semi-flush mounting kit | 1MRS050696 |
| Inclined semi-flush kit (25°) | 1MRS050831 |
| Wall mounting kit | 1MRS050697 |
| 19” Rack kit (2 relays) | 1MRS050695 |
| 19” Rack kit (single relay) | 1MRS050694 |
| 19” Rack + RTXP18 kit | 1MRS090938 |
| Combiflex kit (relay + RTXP18) | 1MRS090924 |
| Combiflex kit (single relay) | 1MRS050779 |
| Front communication cable | 1MRS050698 |
| RS-485 module | 1MRS050892 |
| Plastic fiber module | 1MRS050889 |
| Glass + plastic fiber module | 1MRS050891 |
More Information
For detailed configuration and safety instructions, download the official manual:
Details
| Weight | 3.5 kg |
|---|---|
| Dimensions | 149.3 × 164 × 160 mm |
