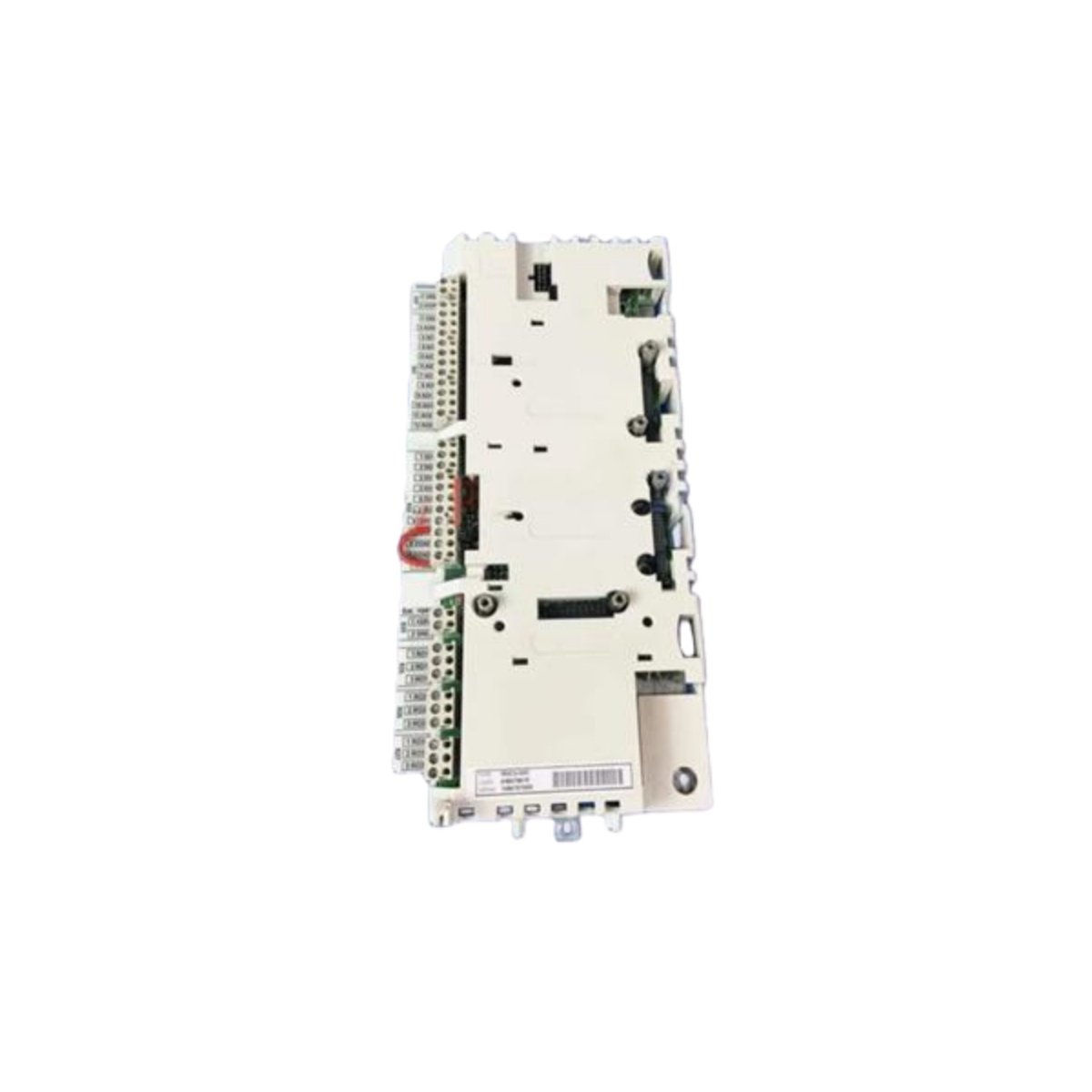

The RDCU-02C control unit manages drive logic and communication for ABB industrial converter systems. This assembly processes control signals and coordinates power stage operation. Engineers rely on it for precise motor regulation in demanding automation environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Drive Control Unit |
| Compatibility | ABB Industrial Drive and Converter Systems |
| Board Function | Drive Logic and Communication Control |
| Processor | Onboard Control Microprocessor |
| Interface | Fiber Optic Links, Backplane Connector, Terminal Blocks |
| Dimensions | 260 mm x 170 mm x 45 mm |
| Weight | Approximately 1.10 kg |
| Component Count | 98 Active Electronic Components |
| Energy Storage | 3.0 V Lithium Backup Battery |
| Power Consumption | 24 VDC at 0.5 A |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | 5% to 95%, Non-Condensing |
Control Architecture
The unit runs an onboard microprocessor dedicated to motor control algorithms. Therefore, it executes torque, speed, and position loops with minimal latency. Furthermore, 98 active components handle signal conditioning, timing, and communication tasks. Consequently, drives respond quickly to changing load conditions.
Interface and Connectivity
Fiber optic links connect the RDCU-02C to power stage boards without electrical noise. As a result, control commands travel safely across high-voltage isolation barriers. Additionally, terminal blocks simplify wiring for external signals and encoders.
Power and Backup
The unit draws 24 VDC at 0.5 A from the drive auxiliary supply. Moreover, a 3.0 V lithium battery preserves parameter settings during outages. Consequently, technicians avoid reloading drive configurations after brief interruptions.
Installation Notes
Operators mount the unit inside the drive enclosure using guided rails. The compact housing fits standard ABB converter frames without adapters. However, users should confirm fiber optic connector types before commissioning the drive.
Details
| Weight | 0.6 kg |
|---|---|
| Dimensions | 180 × 110 × 20 mm |
