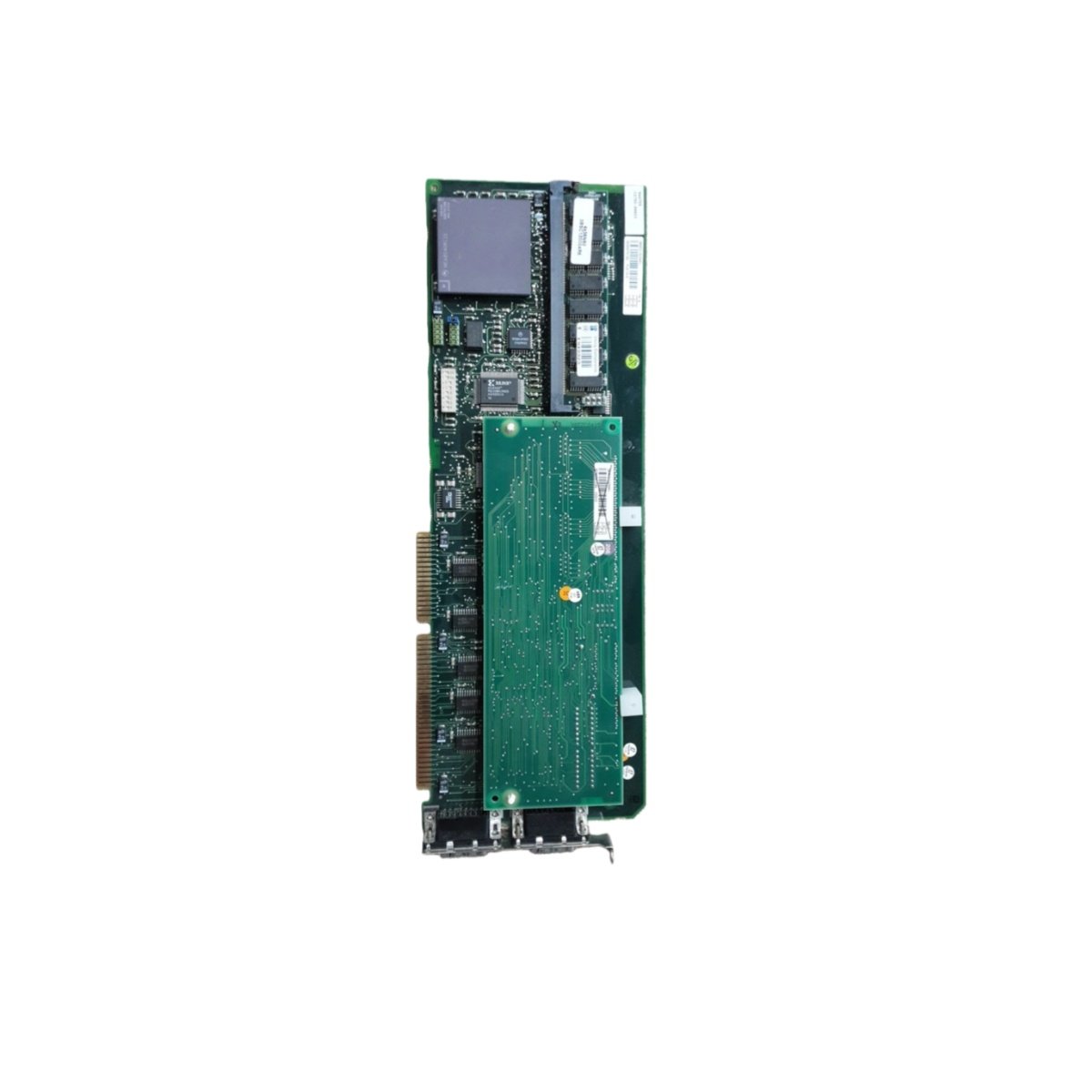

The PU513V2 3BSE013034R1 RTA board manages real-time data acquisition and signal routing within ABB control systems. This printed circuit assembly links field inputs to the main processor through dedicated channels. Engineers rely on it for accurate measurement in process and power automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | RTA Board |
| Compatibility | ABB Control and Automation Systems |
| Part Number | PU513V2 3BSE013034R1 |
| Board Function | Real-Time Data Acquisition |
| Interface | Backplane Connector, Ribbon Headers, Terminal Blocks |
| Dimensions | 280 mm x 180 mm x 25 mm |
| Weight | Approximately 0.60 kg |
| Component Count | 132 Active Electronic Components |
| Energy Storage | 3.0 V Lithium Backup Battery |
| Power Consumption | 5 VDC at 1.1 A |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | 5% to 95%, Non-Condensing |
Board Architecture and Function
The assembly uses a multi-layer PCB to route analog and digital signal traces. Therefore, it captures field data with minimal noise and crosstalk. Furthermore, 132 active components manage conversion, timing, and interface duties. Consequently, one board supports demanding real-time control loops.
Interface and Connectivity
Backplane connectors and terminal blocks link the PU513V2 3BSE013034R1 to host racks and field devices. As a result, measurement and command signals travel through short, shielded paths. Additionally, ribbon headers connect auxiliary boards for expanded channel counts.
Power and Backup
The board draws 5 VDC at 1.1 A from the system supply rail. Moreover, a 3.0 V lithium battery preserves calibration data during outages. Consequently, technicians avoid recalibration after brief power interruptions.
Installation Notes
Operators secure the board with standoffs inside the control enclosure. The footprint fits standard ABB card cages without modification. However, users should follow anti-static precautions before handling the assembly.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 90 × 45 × 100 mm |
