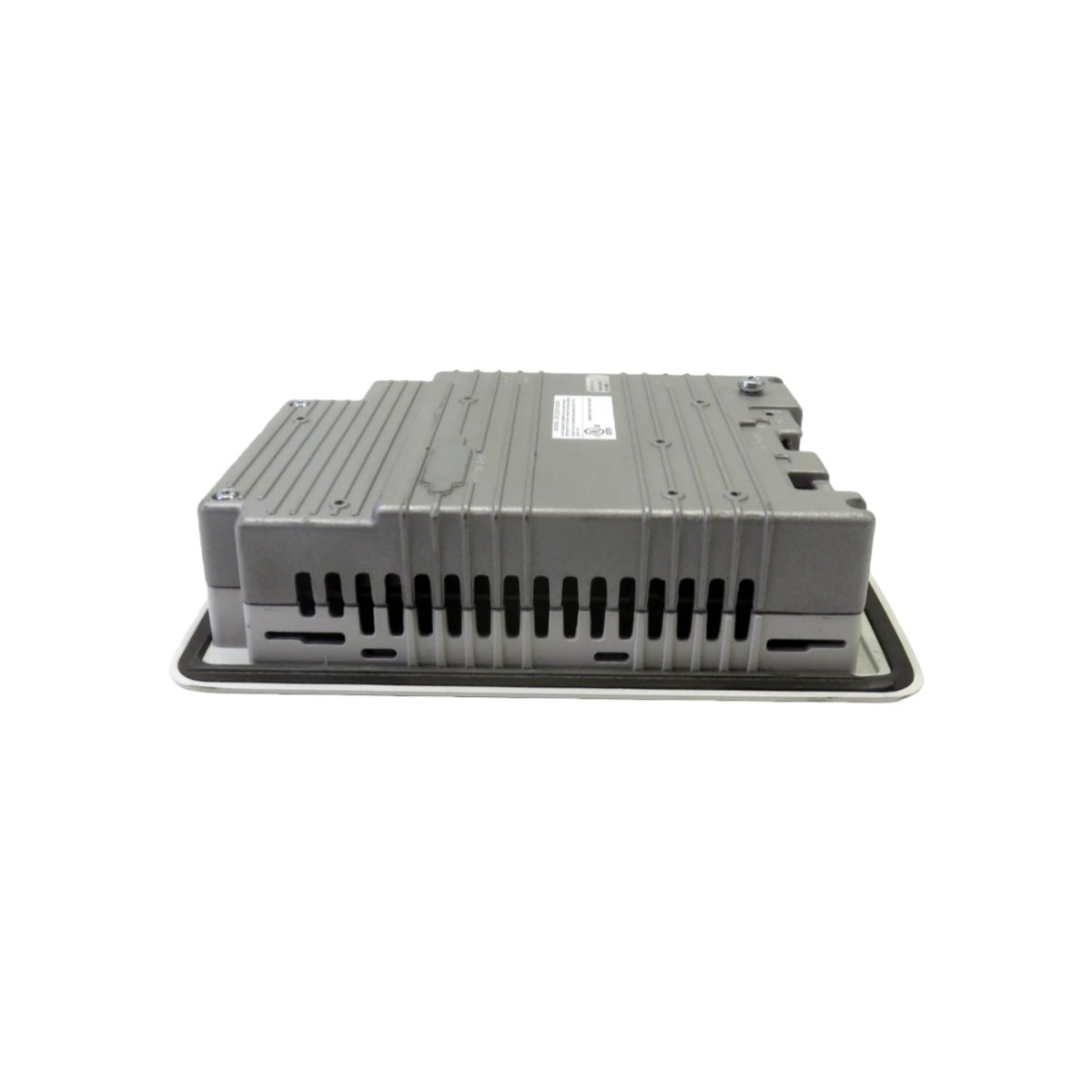

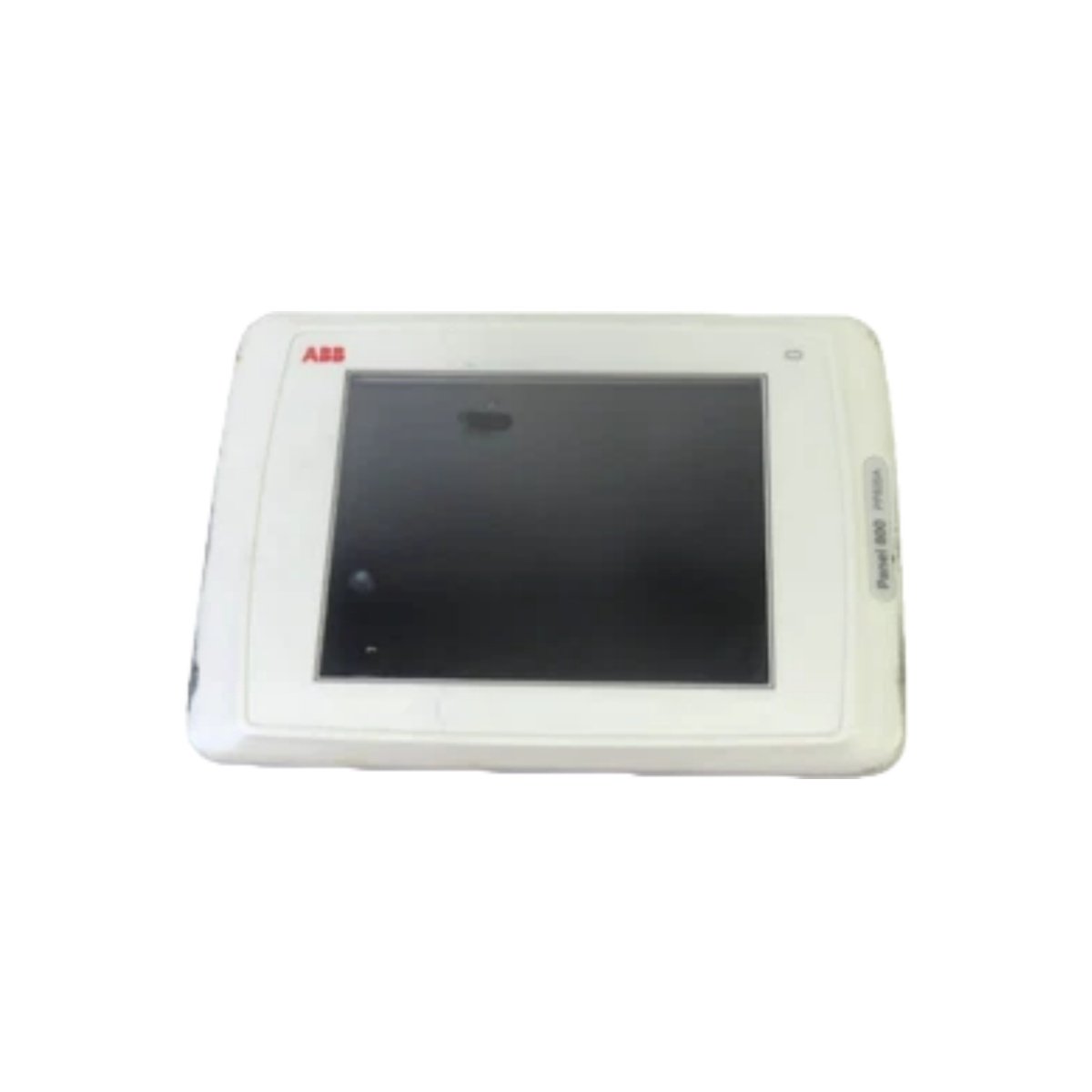

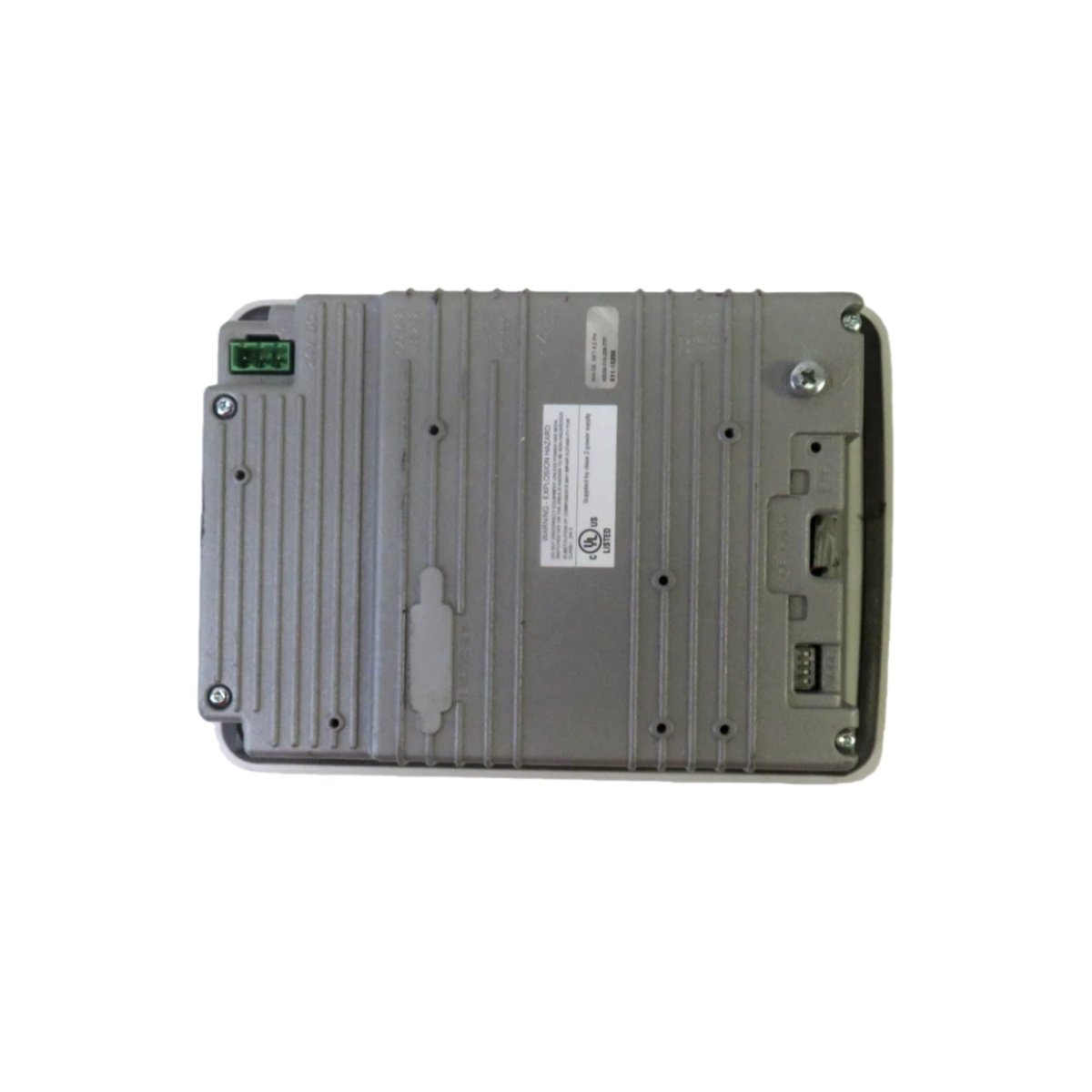

The ABB PP835A touch panel displays process data for industrial automation systems. Engineers select this unit for dependable operator interaction across process control environments. Moreover, its robust housing supports straightforward mounting into existing control cabinets.
Interface and Connectivity
The panel links to controllers through embedded communication ports for fast data exchange. Additionally, it provides Ethernet and serial interfaces for network integration. These ports support multiple protocols, therefore covering common plant connectivity requirements. Touch input allows direct operator commands, which simplifies daily tasks considerably.
Physical Dimensions and Weight
The unit measures 270 mm in width, 210 mm in height, and 60 mm in depth. Furthermore, it weighs approximately 1.8 kilograms, which suits panel-front mounting. Consequently, technicians install it easily using standard cutout dimensions.
Component Count and Energy Storage
The PP835A integrates a color display module for clear process visualization. It also contains one backup capacitor rated at 220 µF for clock retention. Therefore, this energy storage element preserves time settings during brief power interruptions. The assembly carries roughly 380 discrete components for dependable operation.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model | PP835A |
| Category | Touch Panel |
| Display Type | Color TFT with Touch |
| Communication Ports | Ethernet / Serial |
| Dimensions (W×H×D) | 270 × 210 × 60 mm |
| Weight | ~1.8 kg |
| Connector Type | Standard Industrial |
| Energy Storage | 220 µF Backup Capacitor |
| Operating Temperature | 0°C to 50°C |
Why This Panel Suits Industrial Applications
System integrators value the PP835A for its responsive touch input and simple setup. Meanwhile, the backup capacitor protects clock settings from data loss. As a result, operator efficiency improves while maintenance costs decrease.
Details
| Weight | 0.6 kg |
|---|---|
| Dimensions | 180 × 110 × 20 mm |
