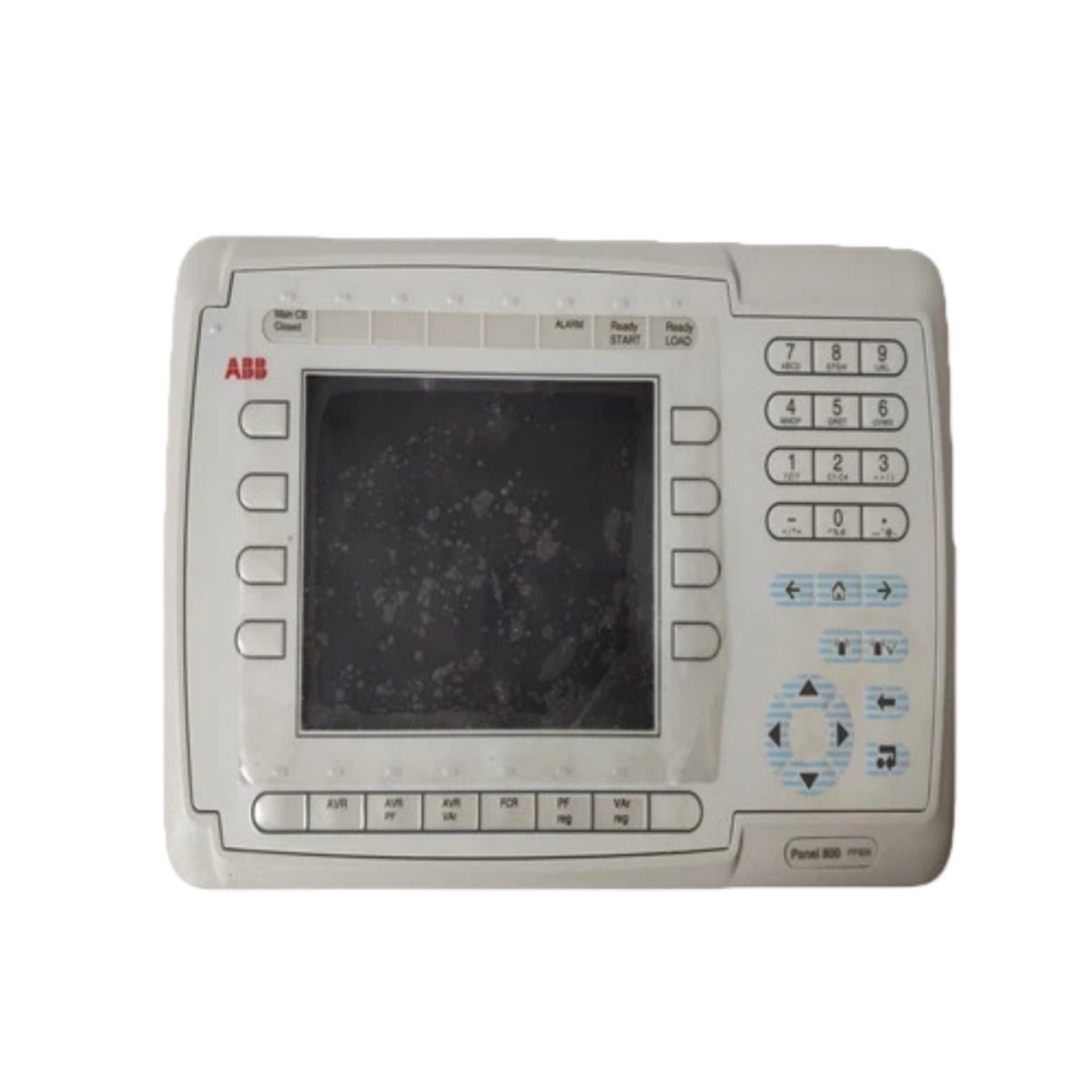

The ABB PP826 3BSE042244R1 human-machine interface displays process data for industrial automation systems. Engineers select this panel for dependable operator interaction across process control environments. Moreover, its robust housing supports straightforward mounting into existing control cabinets.
Interface and Connectivity
The panel links to controllers through embedded communication ports for fast data exchange. Additionally, it provides Ethernet and serial interfaces for network integration. These ports support multiple protocols, therefore covering common plant connectivity requirements. Front-panel keys and touch input allow direct operator commands, which simplifies daily tasks considerably.
Physical Dimensions and Weight
The unit measures 270 mm in width, 210 mm in height, and 60 mm in depth. Furthermore, it weighs approximately 1.8 kilograms, which suits panel-front mounting. Consequently, technicians install it easily using standard cutout dimensions.
Component Count and Energy Storage
The PP826 3BSE042244R1 integrates a color display module for clear process visualization. It also contains one backup capacitor rated at 220 µF for clock retention. Therefore, this energy storage element preserves time settings during brief power interruptions. The assembly carries roughly 400 discrete components for dependable operation.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model | PP826 3BSE042244R1 |
| Category | Panel 800 Human-Machine Interface |
| Display Type | Color TFT |
| Communication Ports | Ethernet / Serial |
| Dimensions (W×H×D) | 270 × 210 × 60 mm |
| Weight | ~1.8 kg |
| Connector Type | Standard Industrial |
| Energy Storage | 220 µF Backup Capacitor |
| Operating Temperature | 0°C to 50°C |
Why This Panel Suits Industrial Applications
System integrators value the PP826 3BSE042244R1 for its clear display and simple setup. Meanwhile, the backup capacitor protects clock settings from data loss. As a result, operator efficiency improves while maintenance costs decrease.
