The ABB PM645B 3BSE010535R1 processor module serves as a core computing unit within ABB’s Advant Controller 450 platform. Engineers rely on this board for real-time control logic, data handling, and system communication tasks. Consequently, it fits process industries, power plants, and heavy manufacturing lines.

Technical Specifications and Hardware Details

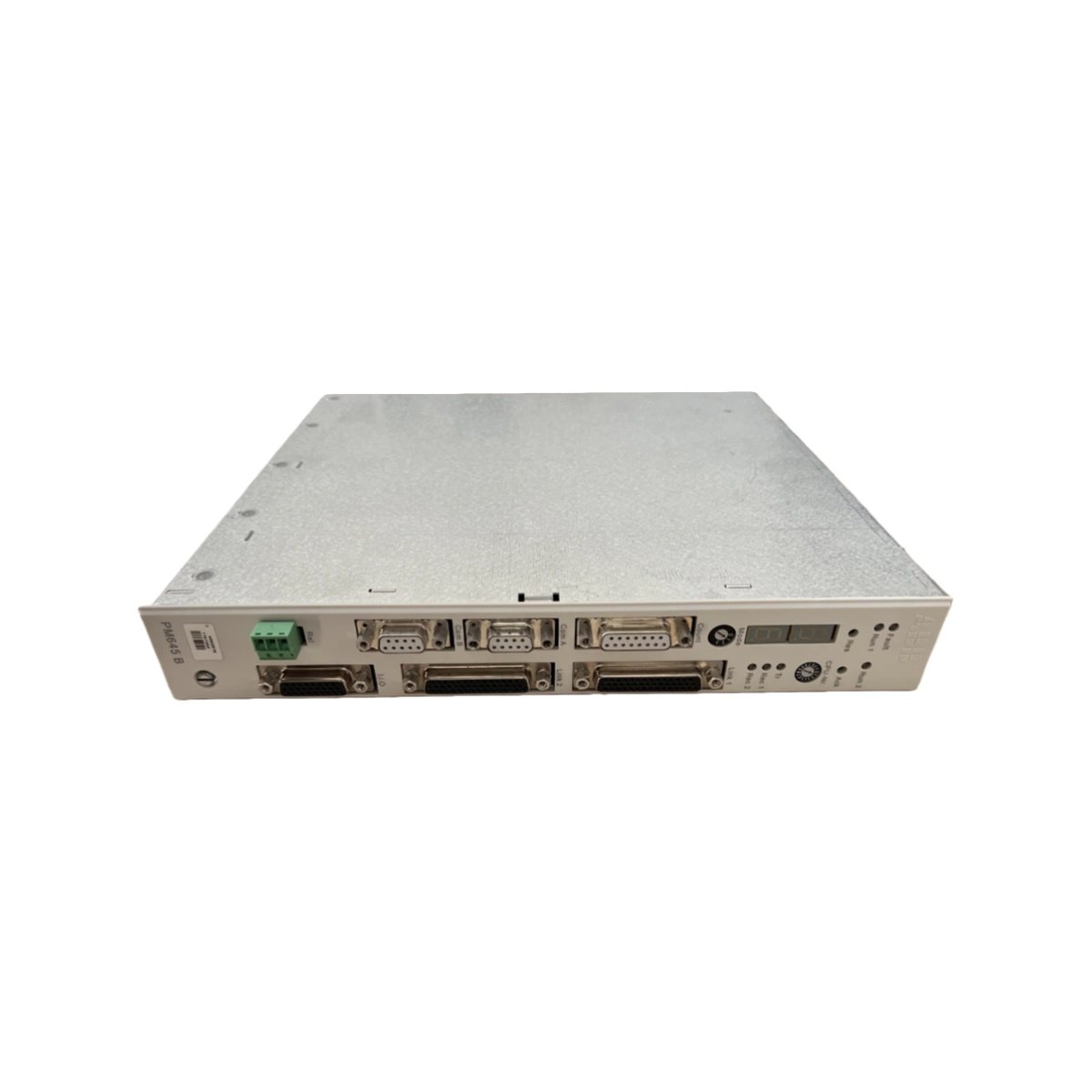

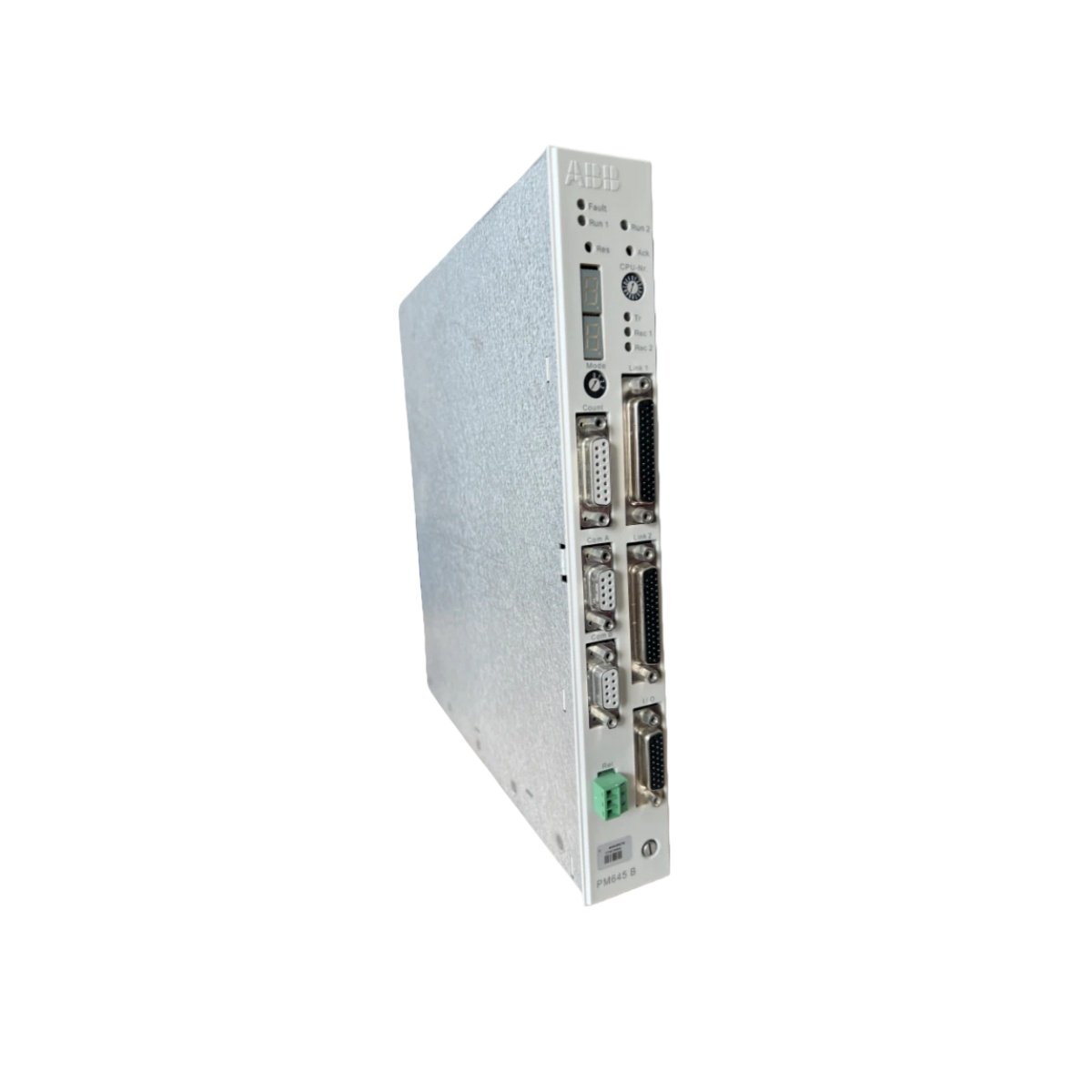

This module occupies a single slot and measures 234 mm high, 18 mm wide, and 253 mm deep. Moreover, it weighs approximately 0.45 kg, so technicians can install it quickly. The front panel carries LEDs for run status, fault alerts, and diagnostics.

Functional Capabilities and System Integration

The processor executes control programs while it manages data acquisition and bus communication. Meanwhile, the backplane connector links it to I/O modules and other rack components. A lithium battery preserves volatile memory, therefore configuration data survives short power outages.

Additionally, the unit supports redundant setups for high-availability operations. As a result, plant operators minimize unplanned downtime and protect critical processes. Natural convection cools the board, so no cooling fan requires maintenance. The compact footprint also allows dense mounting inside standard ABB cabinets.

Installation and Maintenance Guidelines

Technicians should check backplane voltage before they insert the 3BSE010535R1 module. Afterward, monitoring the LED indicators confirms successful initialization. Replacing the backup battery every three to five years protects stored parameters. Finally, consult ABB documentation for firmware updates and fault diagnosis.
