Product Overview

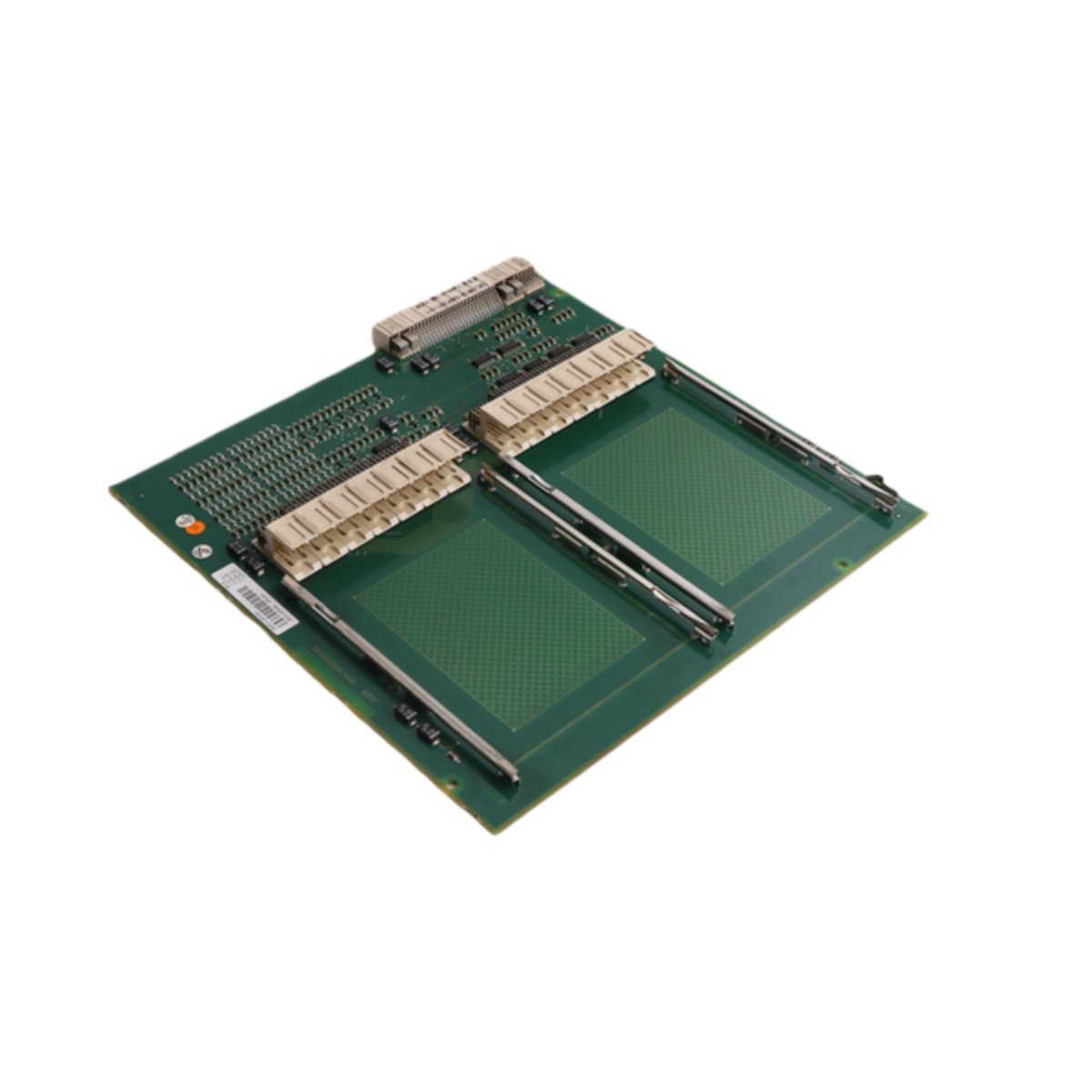

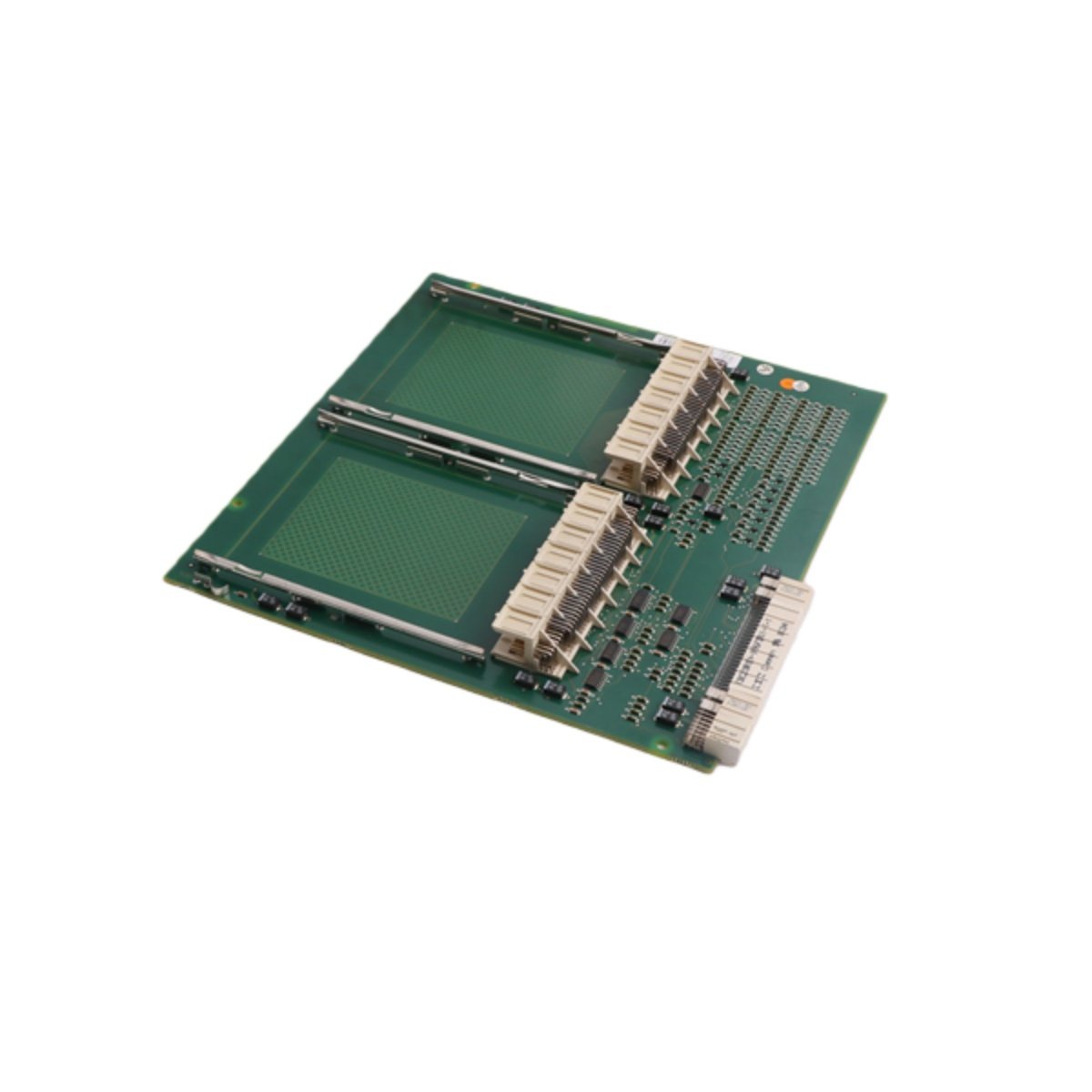

The ABB PM154 3BSE003645R1 serves as a dedicated communication interface module for Advant OCS and Symphony Plus distributed control systems. This module bridges field devices and higher-level networks, enabling seamless data exchange between process equipment and control servers. Accordingly, the PM154 3BSE003645R1 plays a crucial role in modern industrial communication architectures.
Technical Specifications
The PM154 3BSE003645R1 supports multiple communication protocols for interoperability with various field devices and third-party systems. This module handles both periodic and aperiodic data transmission, ensuring timely delivery of process information. Furthermore, the module incorporates robust error-checking mechanisms to guarantee data integrity under demanding conditions.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Order Number | 3BSE003645R1 |
| Product Type | Communication Interface Module |
| Compatible Systems | Advant OCS, Symphony Plus DCS |
| Communication Protocols | PROFIBUS DP, MB300, MasterBus 300 |
| Physical Interface | RS-485 |
| Data Transmission | Periodic and aperiodic |
| Error Checking | CRC and parity validation |
| LED Indicators | Status, communication error, and power LEDs |
| Galvanic Isolation | Yes |
| Dimensions (W x H x D) | 234 x 99 x 216 mm |
| Net Weight | Approx. 1.5 kg |
| Operating Temperature | 0°C to +55°C |
| Origin | Sweden |
Key Design Features
The PM154 3BSE003645R1 provides a robust RS-485 physical interface that ensures reliable communication over extended distances . Moreover, this module features comprehensive LED diagnostics that immediately indicate communication status and fault conditions . The module’s galvanic isolation effectively eliminates ground loop issues that frequently plague industrial networks . Additionally, the PM154 3BSE003645R1 supports both MasterBus 300 (MB300) and PROFIBUS DP protocols for versatile system integration.
Application and Integration
The PM154 3BSE003645R1 integrates seamlessly into ABB Advant OCS and Symphony Plus installations, connecting I/O subsystems to higher-level control networks. System integrators commonly deploy this module in power plants, chemical facilities, and manufacturing sites requiring robust fieldbus connectivity. Since this module relies on battery-backed memory, operators must follow proper procedures during battery replacement. Furthermore, users should observe all ESD precautions when handling the PM154 3BSE003645R1 to prevent component damage .
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 234 × 99 × 216 mm |
