Product Overview

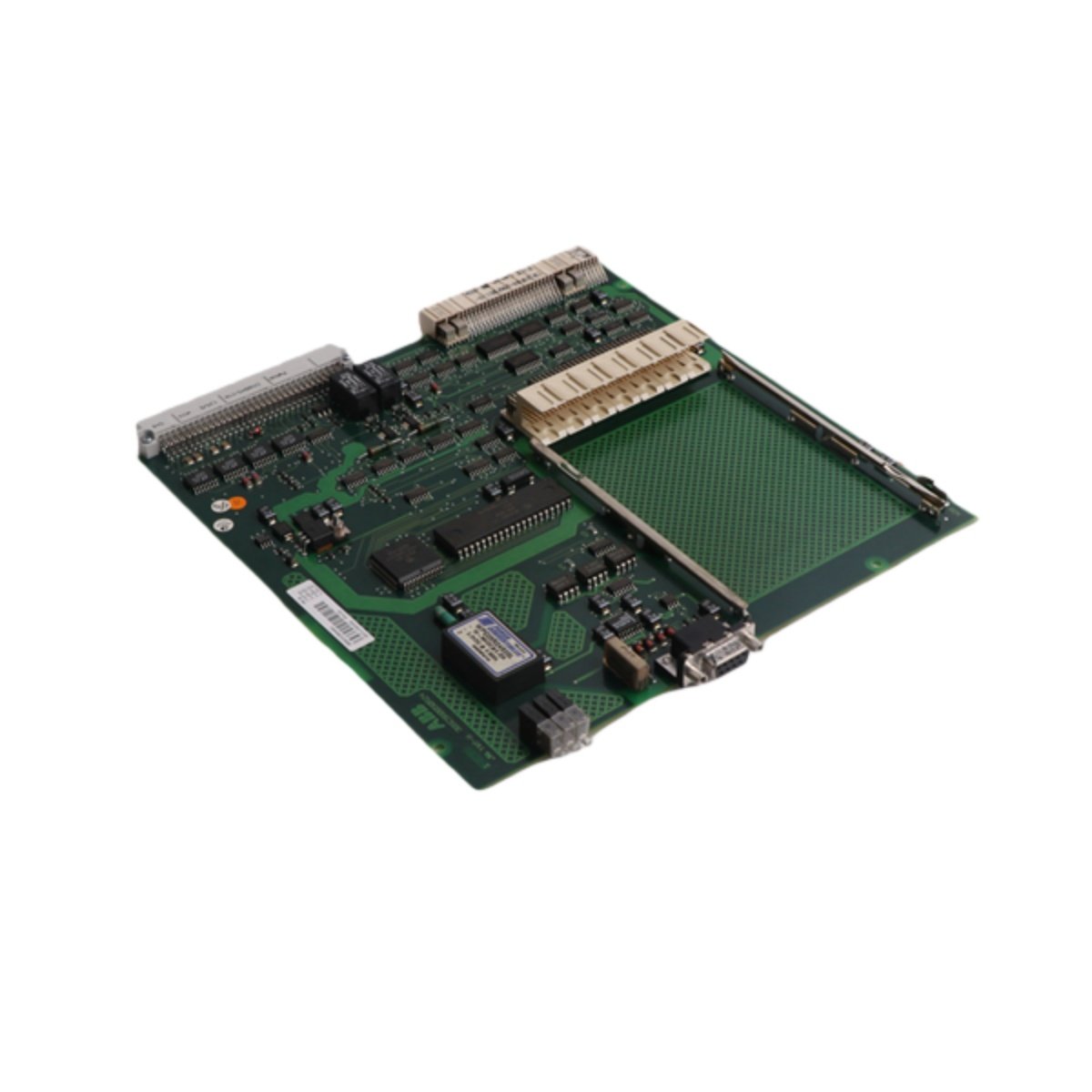

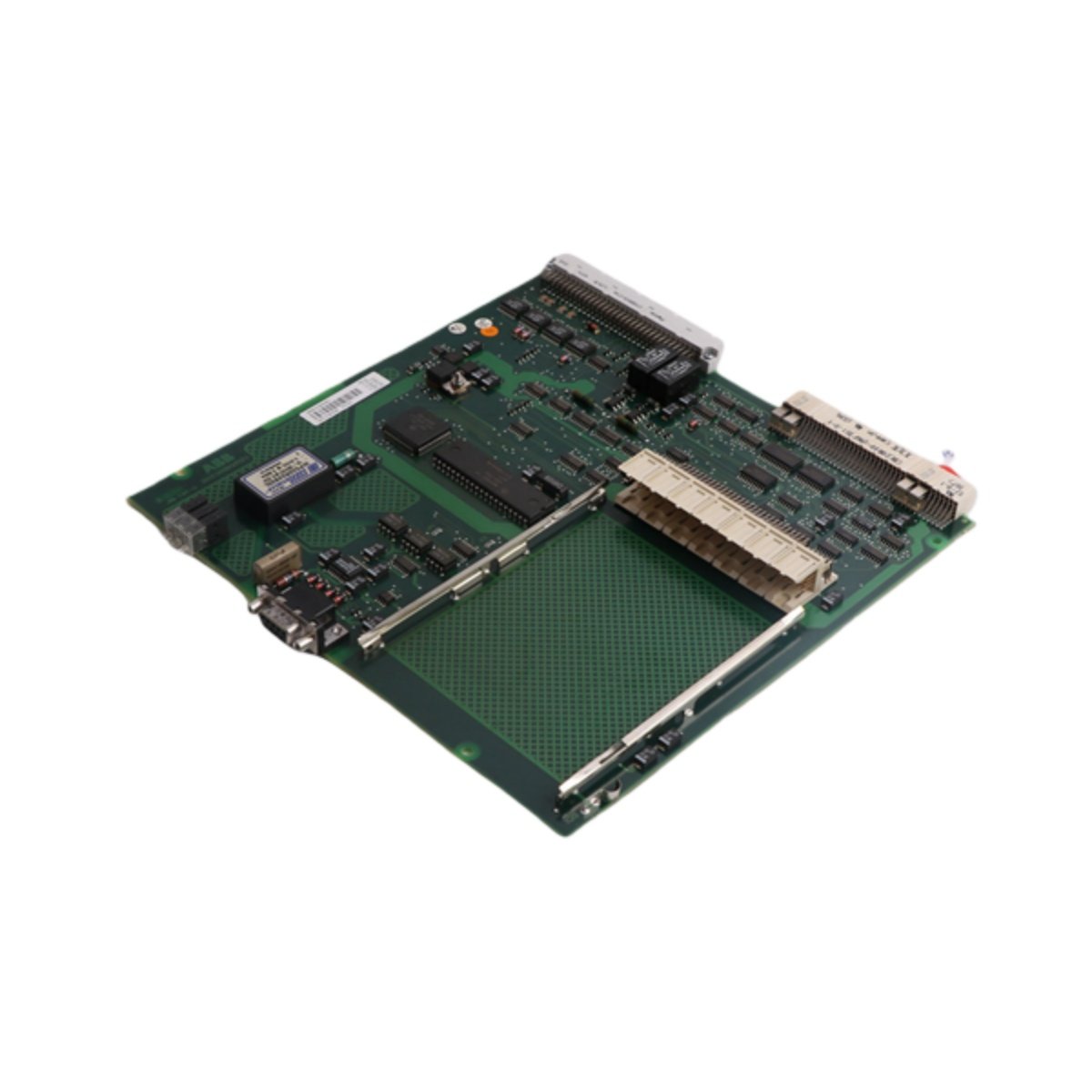

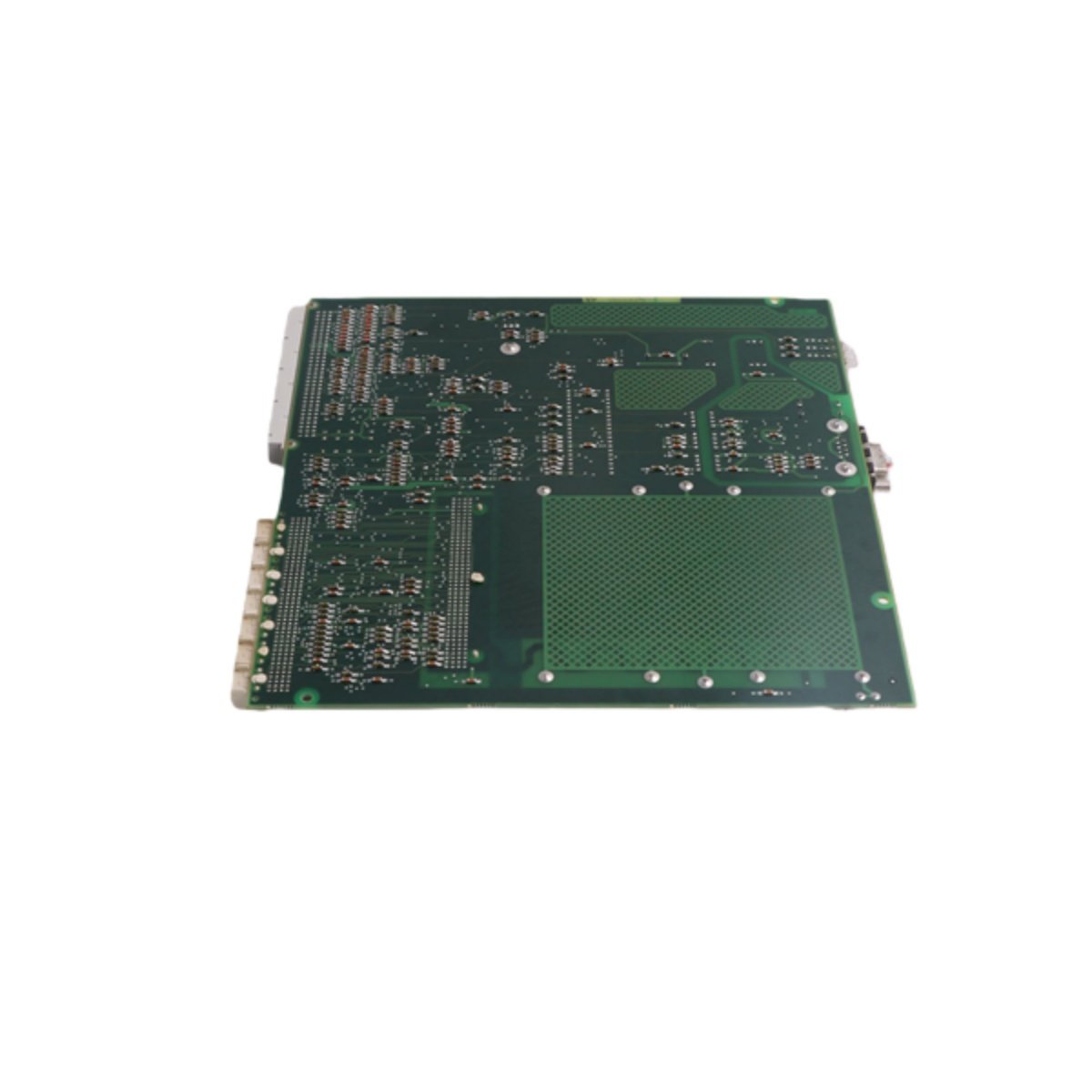

The ABB PM153 3BSE003644R1 combines analog and digital functionalities into a single compact I/O module for Advant OCS and Symphony Plus systems. This hybrid module handles both continuous process signals and discrete logic states, providing versatile connectivity for diverse field instrumentation. Consequently, the PM153 3BSE003644R1 reduces the total module count needed for complex control applications.
Technical Specifications
The PM153 3BSE003644R1 offers configurable input and output channels that support multiple signal types for maximum flexibility. This module accommodates both voltage and current signals, making it suitable for various transmitters and sensors. Furthermore, the integrated design simplifies wiring and reduces cabinet space requirements.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Order Number | 3BSE003644R1 |
| Product Type | Hybrid I/O Module |
| Compatible Systems | Advant OCS, Symphony Plus DCS |
| Analog Input Channels | Configurable (voltage/current) |
| Analog Output Channels | Configurable (voltage/current) |
| Digital Input Channels | Configurable (24 V DC) |
| Digital Output Channels | Configurable (24 V DC, 0.5 A) |
| Galvanic Isolation | Module-wise isolated |
| Protection | Short-circuit and overvoltage protection |
| LED Indicators | Status and diagnostic LEDs per channel |
| Origin | Sweden |
Key Design Features
The PM153 3BSE003644R1 includes comprehensive diagnostic capabilities, with yellow LEDs on the front panel indicating channel activation states . Additionally, the module supports HART communication for smart field device integration on analog channels. This hybrid design allows engineers to combine multiple I/O types within a single slot, thus optimizing rack utilization. The module also provides transmitter power supervision with current-limiting protection for enhanced safety .
Application and Integration
The PM153 3BSE003644R1 integrates smoothly into ABB Advant OCS and Symphony Plus DCS installations. Process engineers find this module ideal for applications requiring both analog measurements and discrete control in the same area. For instance, mixing vessels often need temperature and pressure readings along with pump start/stop signals. Maintenance teams must observe proper ESD precautions when handling this module to prevent electrostatic damage . Furthermore, the battery-backed RAM requires careful attention during battery replacement to avoid data loss .
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 233 × 160 × 20 mm |
