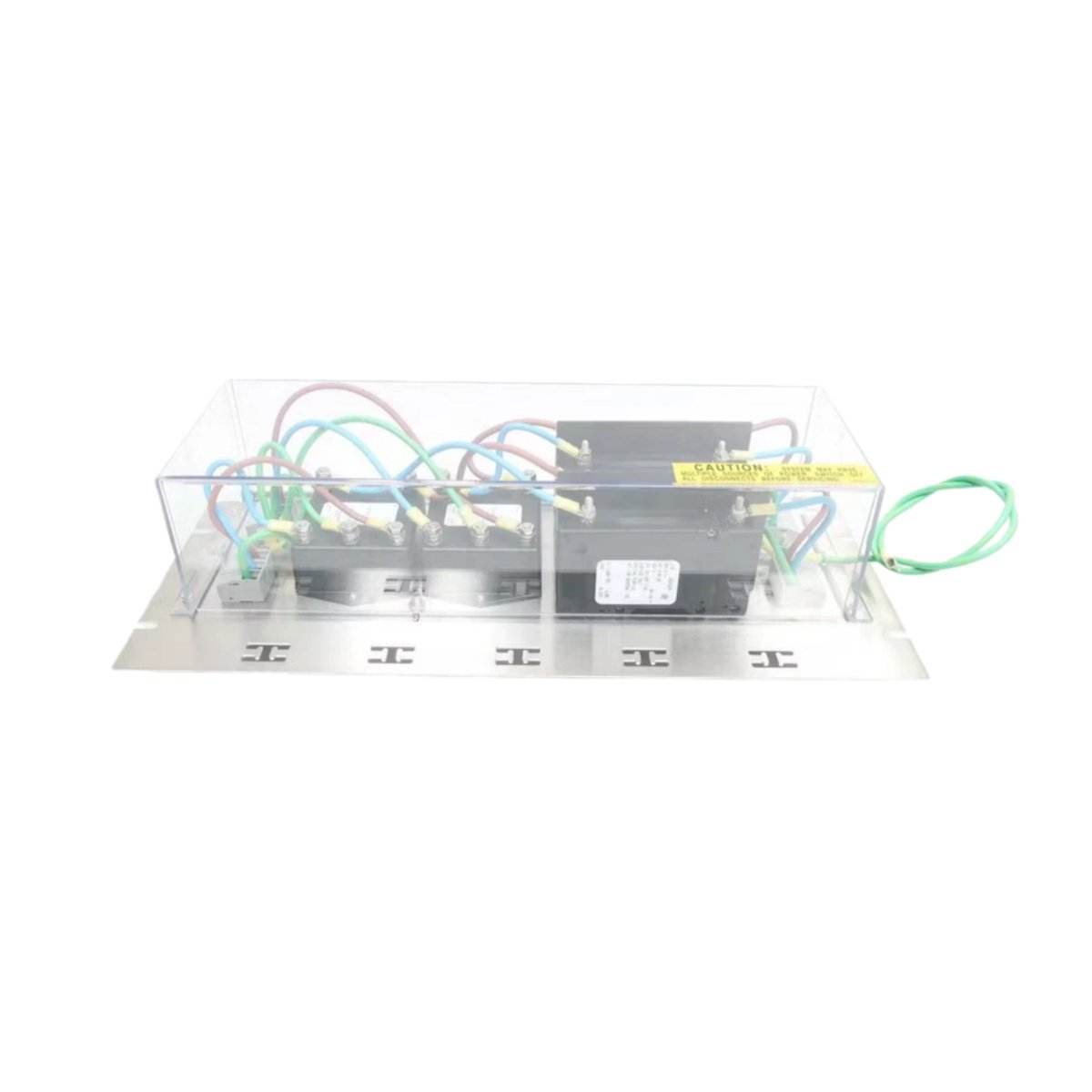

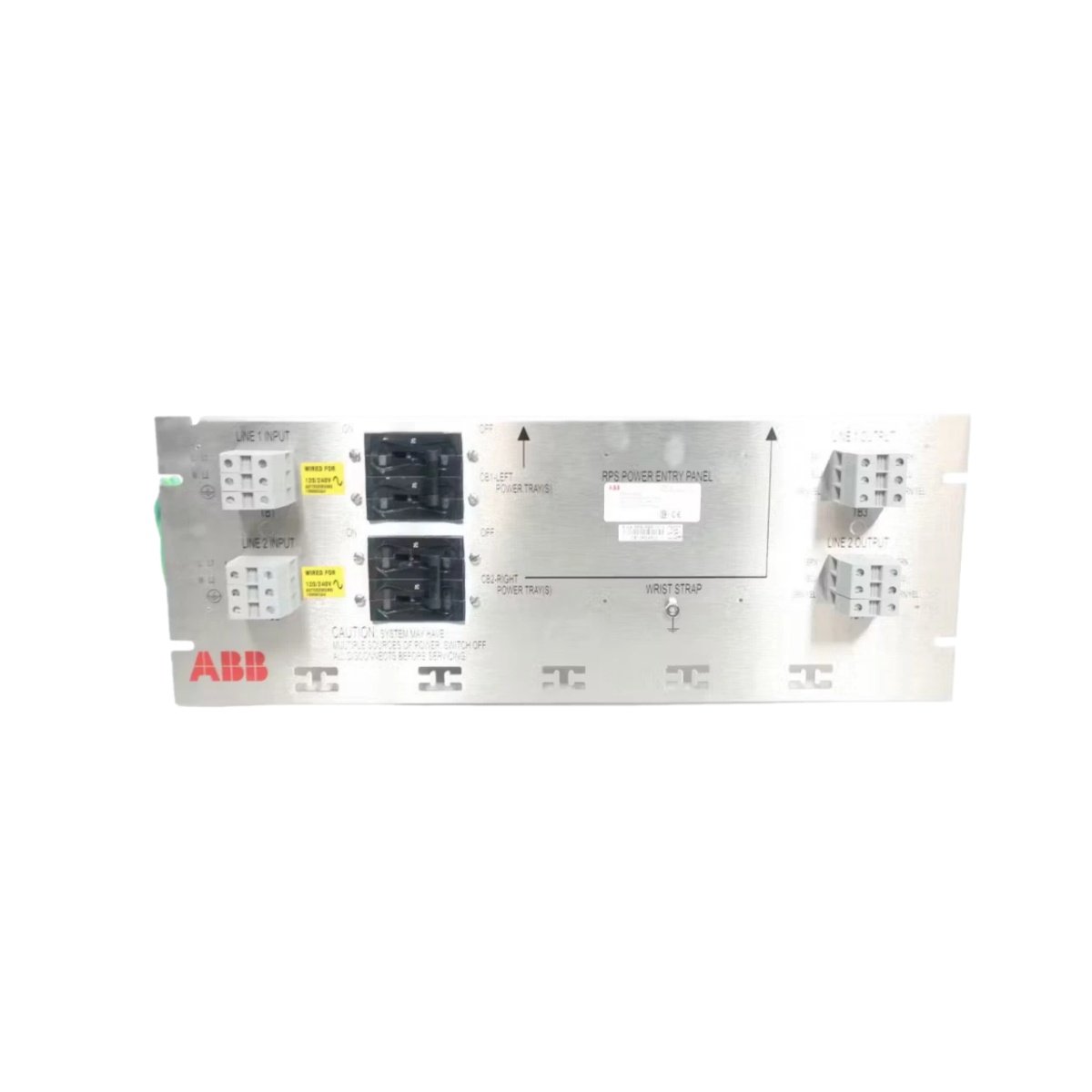

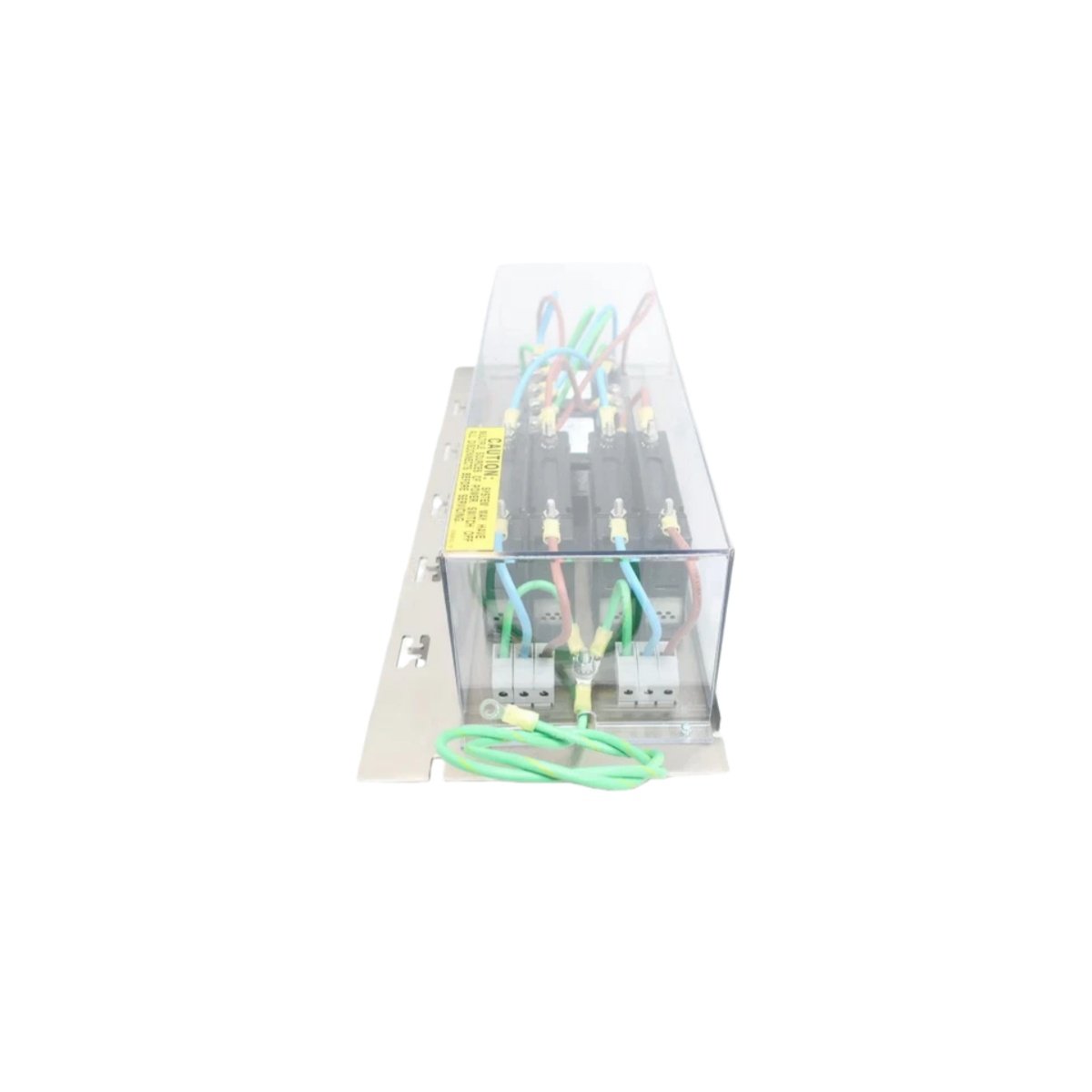

800xA Series Power Distribution and Control Panel
The PHARPSPEP11013 serves as a comprehensive power supply panel within the ABB 800xA system. This panel integrates power conversion, distribution, and monitoring functions into a single assembly. It delivers regulated DC power to multiple system components simultaneously. The unit also provides centralized protection and control capabilities.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | PHARPSPEP11013 |
| Category | Power Supply Panel |
| System Compatibility | 800xA Series DCS |
| Input Voltage | Accepts 100-240 Vac at 47-63 Hz |
| Output Voltage | Delivers +24 Vdc nominal |
| Output Current | Provides 10 A maximum |
| Output Power | Offers 240 W maximum |
| Distribution Outputs | Features 8 fused outputs |
| Circuit Protection | Includes individual circuit breakers |
| Monitoring | Provides voltage and current indicators |
| Alarm Contacts | Includes dry contact alarm outputs |
| Efficiency | Achieves 85% typical |
| Ripple and Noise | Maintains < 100 mV peak-to-peak |
| Operating Temperature | Functions from -10°C to +55°C |
| Storage Temperature | Withstands -40°C to +85°C |
| Dimensions | Measures 500.0 mm x 400.0 mm x 200.0 mm |
| Weight | Weighs approximately 8.0 kg |
| Mounting | Supports wall or rack mounting |
| Enclosure Rating | Offers IP20 protection |
| Compliance | Meets CE, UL, and CSA standards |
Power Distribution and Control Features
This panel combines power supply modules with distribution and monitoring circuitry. It routes power to individual system components through individual fused outputs. The unit also includes circuit breakers for overcurrent protection. Furthermore, it monitors output voltage and current continuously. The panel provides alarm contacts to signal fault conditions.
Installation and Configuration
First, mount the PHARPSPEP11013 securely to the designated wall or rack location. Ensure adequate clearance for ventilation around the panel. Next, connect the AC mains supply to the input terminals. After that, route the DC power cables to each system component. You can then apply power and verify the panel status indicators.
Maintenance and Operational Reliability
This panel includes replaceable fuses and circuit breakers for easy servicing. Therefore, you can quickly restore power after a fault event. We recommend you inspect the panel status indicators during routine checks. You should also verify the output voltages remain within specification periodically.
Details
| Weight | 8.0 kg |
|---|---|
| Dimensions | 500 × 400 × 200 mm |
