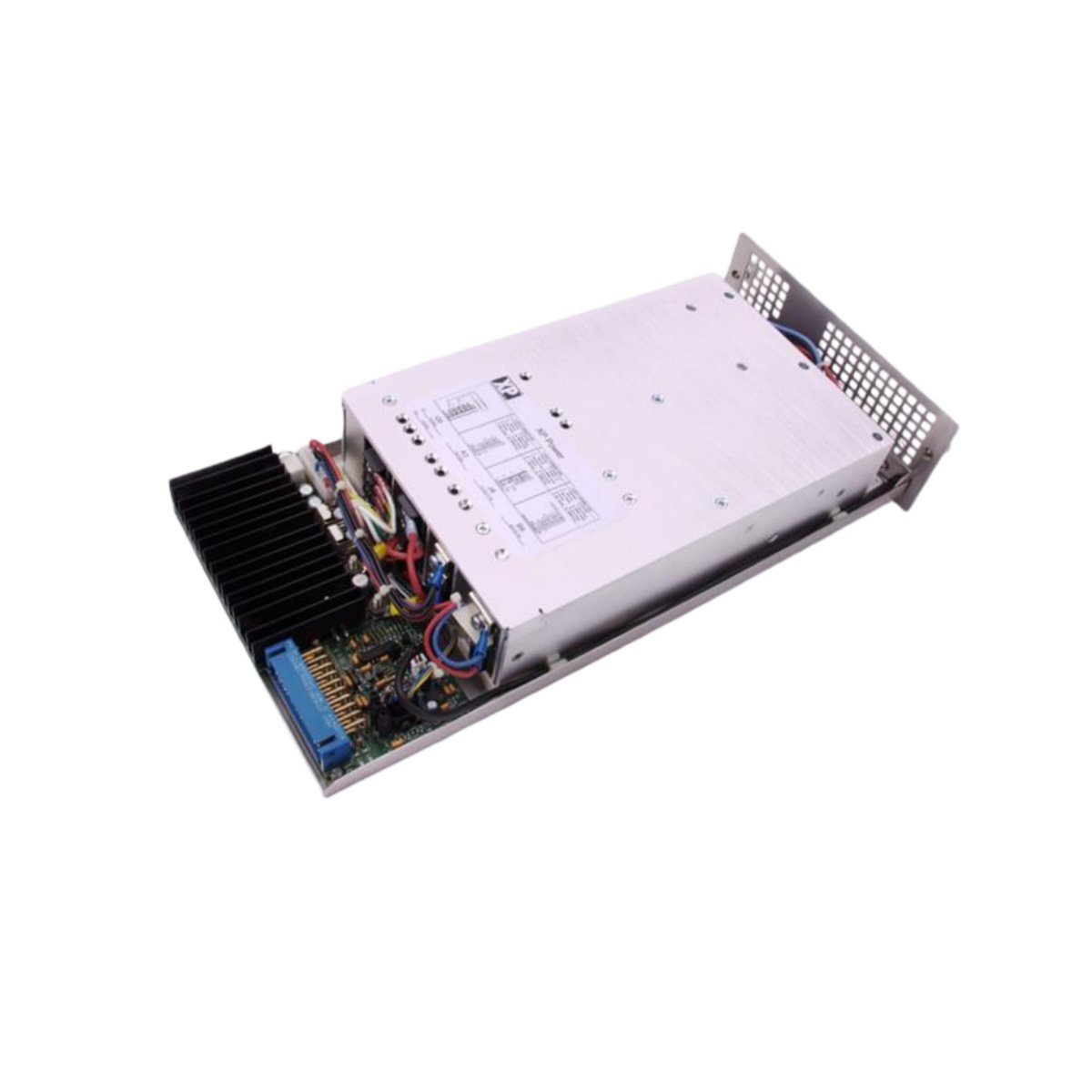

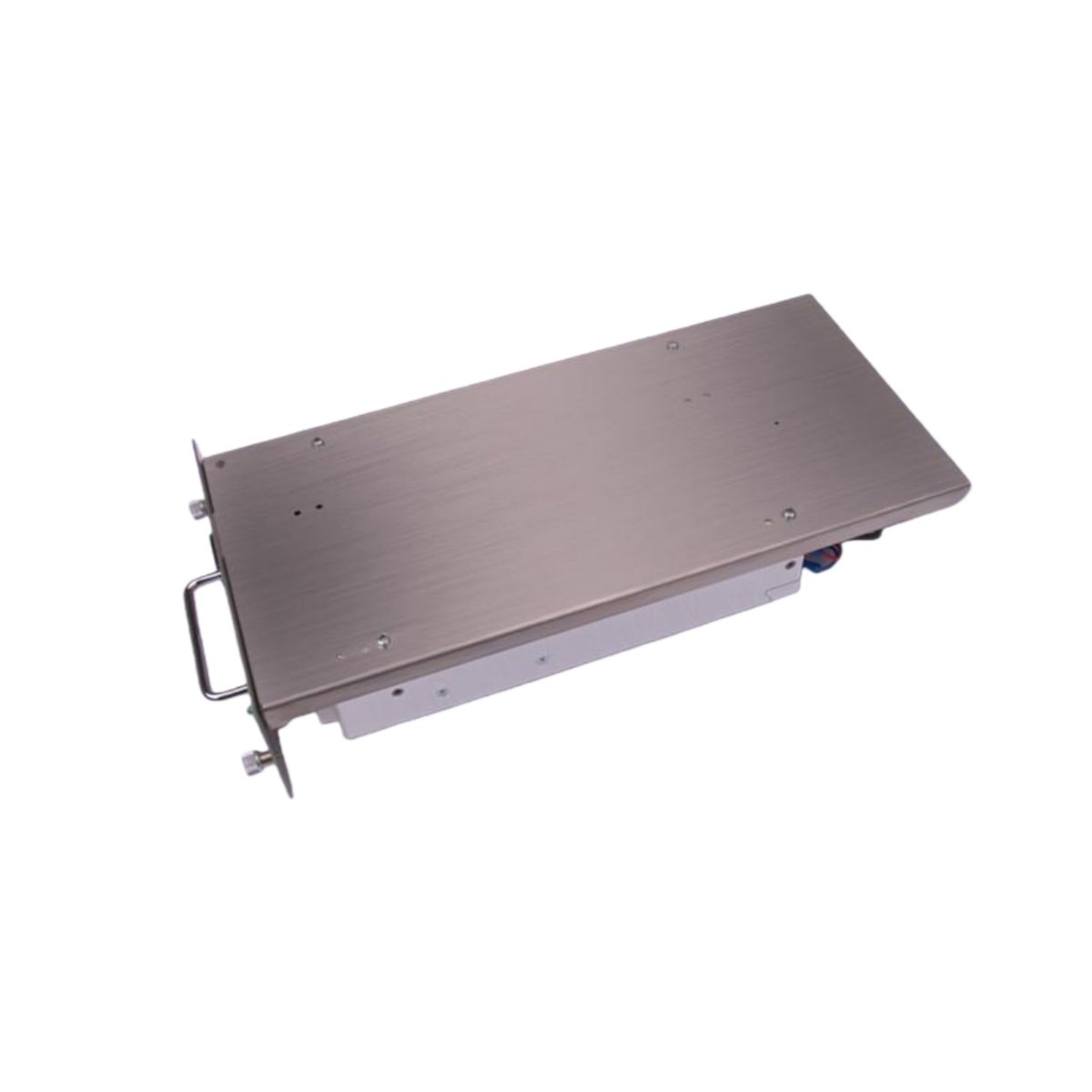

800xA Series High-Capacity Power Supply Unit
The PHARPS62200000 delivers robust power conversion for the ABB 800xA distributed control system. This module accepts wide-range AC input and provides regulated DC output. It supplies sufficient current to support multiple system components. The unit also incorporates comprehensive protection mechanisms for reliable operation.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | PHARPS62200000 |
| Category | Power Supply Module |
| System Compatibility | 800xA Series DCS |
| Input Voltage | Accepts 100-240 Vac at 47-63 Hz |
| Output Voltage | Delivers +24 Vdc nominal |
| Output Current | Provides 5.0 A continuous |
| Output Power | Offers 120 W maximum |
| Ripple and Noise | Maintains < 50 mV peak-to-peak |
| Efficiency | Achieves 87% typical at full load |
| Hold-up Time | Provides 30 ms minimum at full load |
| Overvoltage Protection | Activates at 28 Vdc ± 5% |
| Overcurrent Protection | Limits output at 6.5 A typically |
| Short Circuit Protection | Includes auto-recovery foldback |
| Cooling | Uses convection cooling design |
| Operating Temperature | Functions from -10°C to +60°C |
| Storage Temperature | Withstands -40°C to +85°C |
| Dimensions | Measures 200.0 mm x 120.0 mm x 90.0 mm |
| Weight | Weighs approximately 2.0 kg |
| Mounting | Supports DIN-rail mounting |
| Compliance | Meets CE, UL, and CSA standards |
Power Delivery and System Protection
This high-capacity module converts AC input to stable 24 Vdc output for powering system components. It maintains excellent voltage regulation across varying load conditions. The unit offers built-in protection against overvoltage and overcurrent faults. Additionally, it includes short-circuit protection with automatic recovery after fault clearance. The module’s higher current capacity suits larger system configurations with multiple I/O modules.
Installation and Configuration
First, mount the PHARPS62200000 securely onto a standard DIN rail. Ensure the module locks firmly into position with the locking clip. Next, connect the AC input wires to the appropriate L, N, and ground terminals. After that, connect the DC output to the system’s power distribution bus. You can then apply power and verify the output voltage using a calibrated meter.
Maintenance and Operational Reliability
This module uses convection cooling, eliminating the need for internal fans. Consequently, it operates with greater reliability and lower maintenance requirements. We recommend you periodically check both input and output voltage levels. You should also examine the terminal connections for tightness and inspect for signs of overheating during routine checks.
Details
| Weight | 2.0 kg |
|---|---|
| Dimensions | 200 × 120 × 90 mm |
