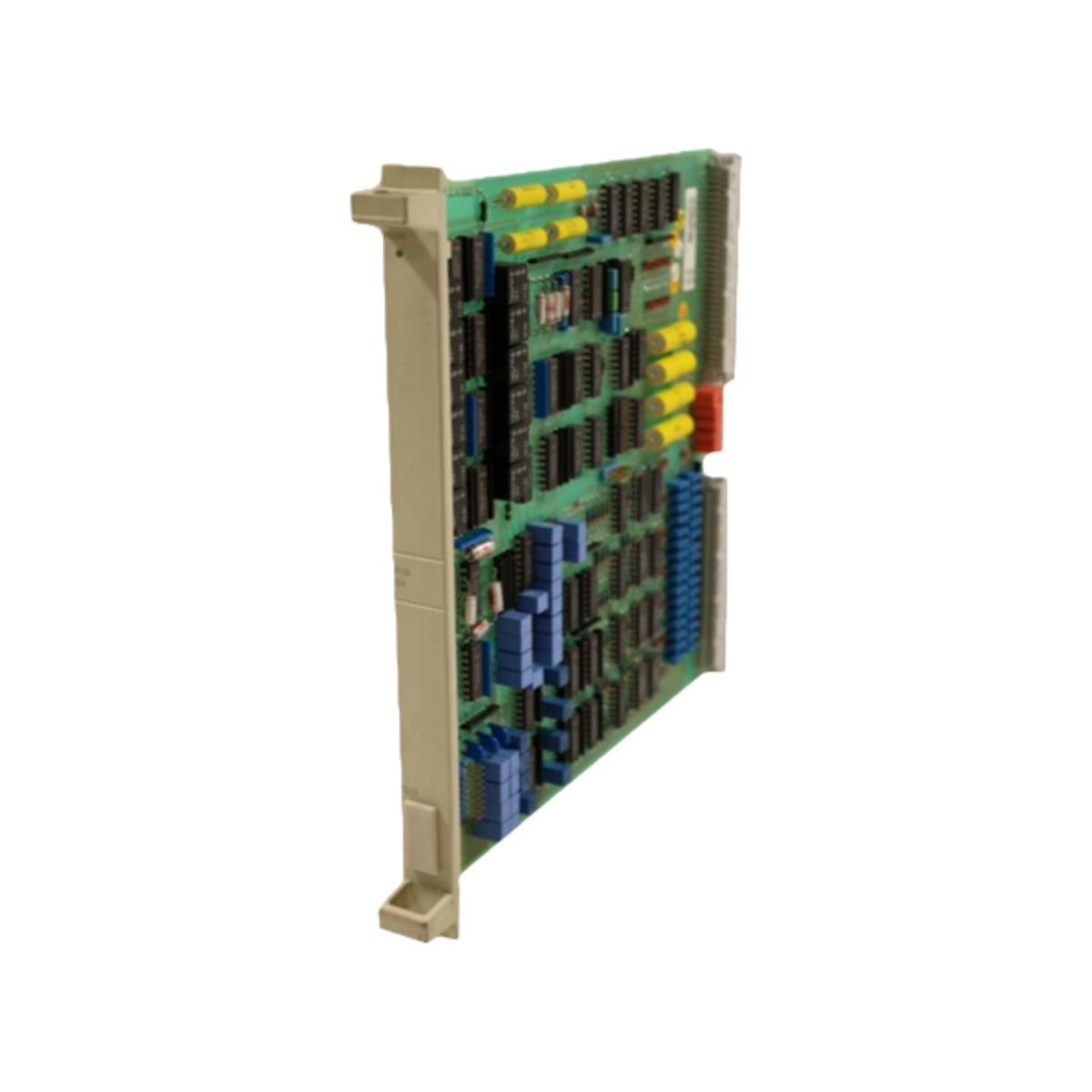

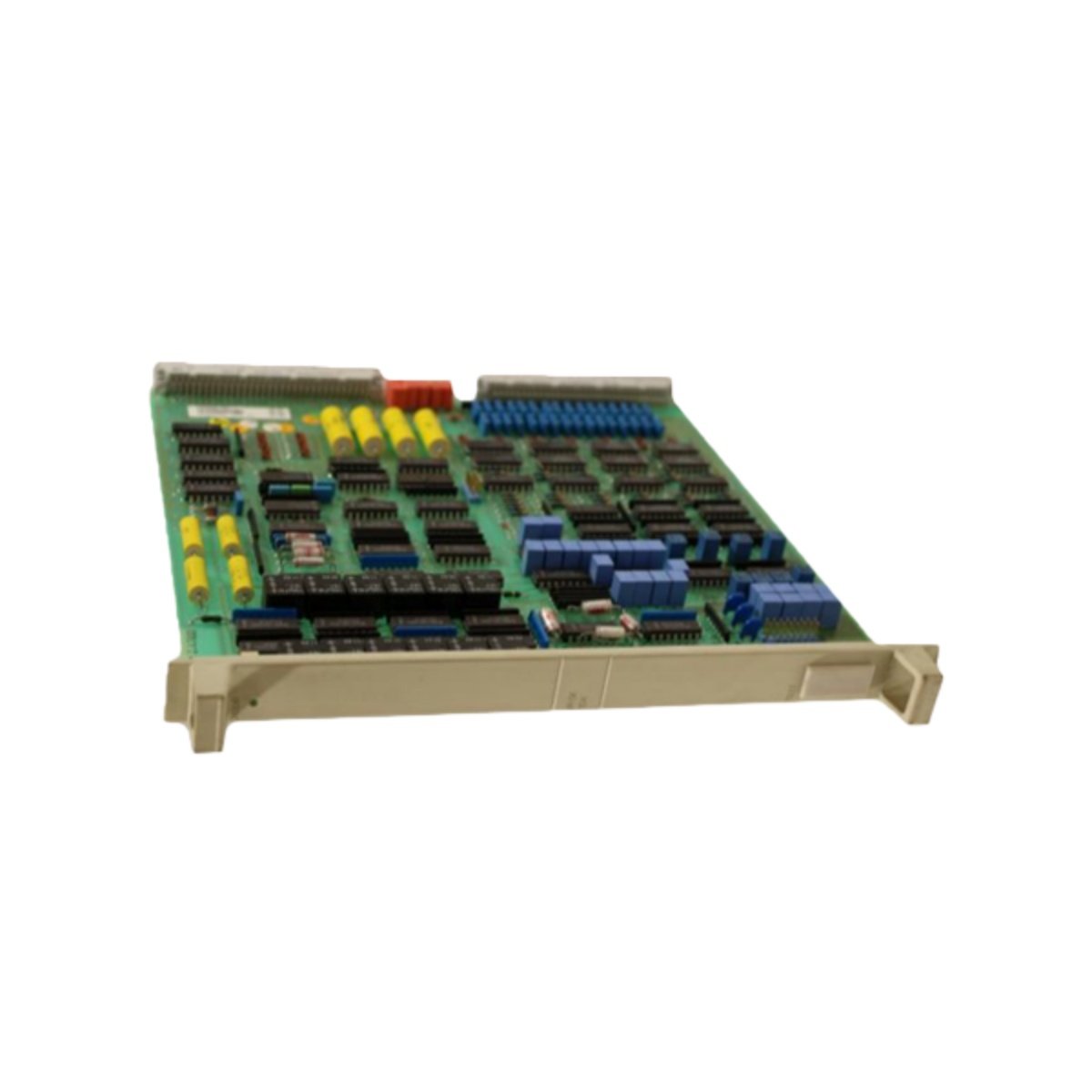

This control board manages power distribution and monitoring functions within ABB drive systems. It coordinates voltage regulation and fault detection across multiple connected modules. The unit processes analog feedback signals for precise output adjustment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | PFSK104 YM322001-EB |
| Product Type | Control Board / Power Management PCB |
| Supply Voltage | 24 V DC ±15% |
| Power Consumption | 10 W (typical) |
| Analog Inputs | 4 x 0–10 V DC / 0–20 mA (software-selectable) |
| Analog Outputs | 2 x 0–10 V DC / 4–20 mA |
| Digital Inputs | 6 x 24 V DC (optically isolated) |
| Digital Outputs | 4 x 24 V DC, 0.3 A per channel |
| Communication Interface | 1 x RS-485 (Modbus RTU) |
| Fault Memory | 16 event logs (non-volatile storage) |
| Mounting | 4 x M4 screw holes |
| Dimensions (W x H x D) | 160 mm x 100 mm x 25 mm |
| Weight | 0.28 kg |
Mechanical Design and Board Layout
This PCB features a four-layer construction for improved signal integrity and noise reduction. Its 160 mm by 100 mm footprint fits standard mounting plates and backplanes. The board weighs only 0.28 kilograms and includes four M4 mounting holes. All connectors use latching mechanisms to ensure secure cable retention.
Power Supply and Electrical Characteristics
The board operates from a 24 V DC supply with a ±15 percent tolerance. It draws approximately 10 watts during normal processing activities. An onboard switching regulator provides clean power for all internal logic circuits. The design includes reverse polarity and overvoltage clamping for component protection.
Signal Acquisition and Control Capabilities
This control board features four software-configurable analog inputs for process signals. It also includes two analog outputs for driving actuators and indicators. Six optically isolated digital inputs accept external 24 V DC signals. Four digital outputs supply 0.3 amperes each for status annunciation. This I/O complement suits most small-to-medium control applications.
Communication and Data Logging
An RS-485 port supports Modbus RTU communication with host controllers. This serial interface enables parameter read/write and remote monitoring functions. The board stores up to 16 fault events in non-volatile memory. This event log retains time-stamped records for diagnostic analysis.
Energy Storage and Backup Features
An onboard supercapacitor maintains configuration settings during short power interruptions. This energy reserve supports the real-time clock for up to 72 hours. The backup feature ensures seamless recovery after temporary supply losses. The board also includes a jumper for manual reset and factory default restoration.
Diagnostic and Status Indication
Six front-edge LEDs provide real-time operational status at a glance. Two LEDs indicate communication activity on the RS-485 port. The remaining LEDs display power-on, fault, and output status conditions. These visual aids facilitate rapid troubleshooting during commissioning.
Application Versatility
This control board integrates into various ABB and third-party automation systems. It suits power supply monitoring, motor control, and process regulation tasks. The device also performs well in building automation and energy management systems. Its operating range covers temperatures from 0°C to +55°C.
Details
| Weight | 0.28 kg |
|---|---|
| Dimensions | 160 × 100 × 25 mm |
