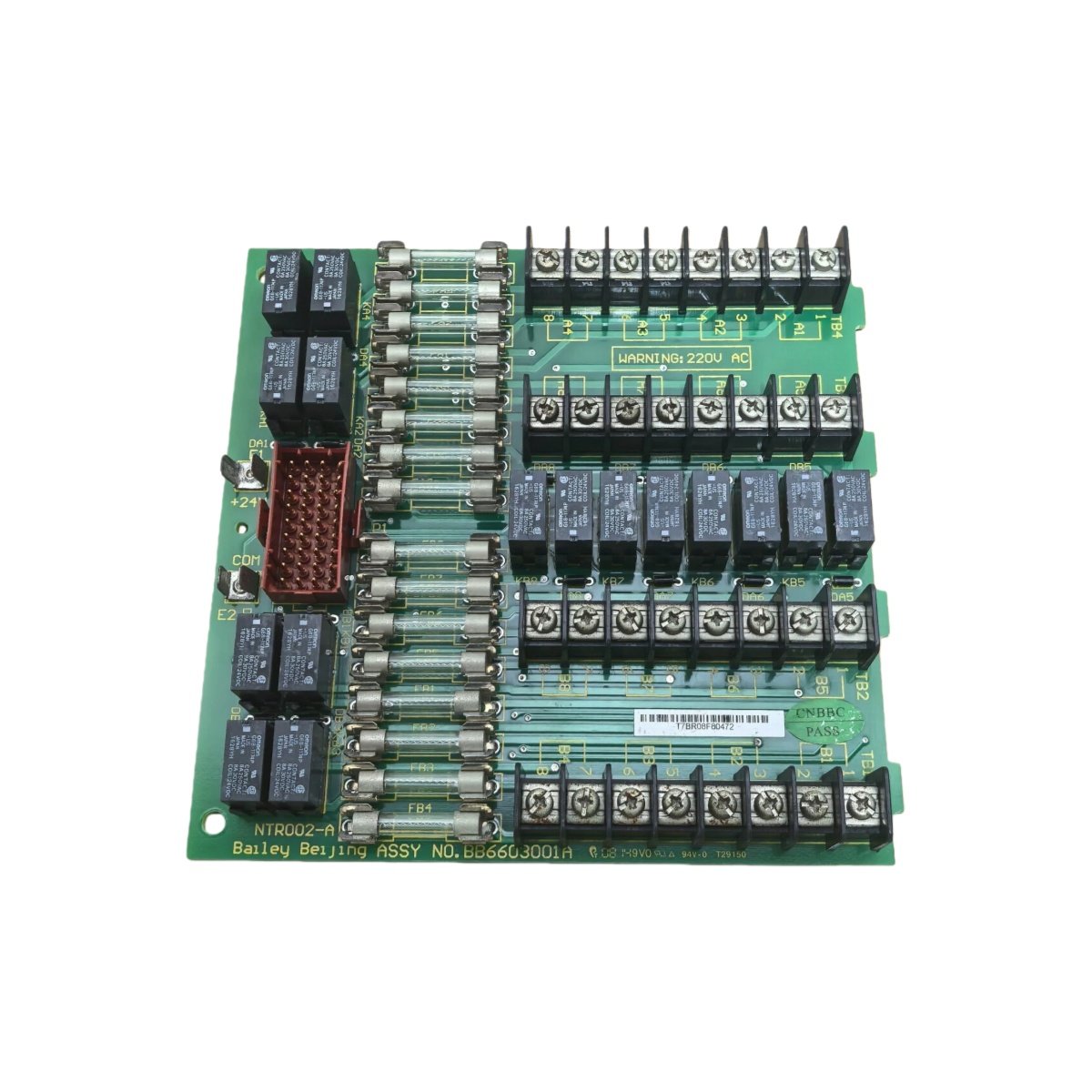

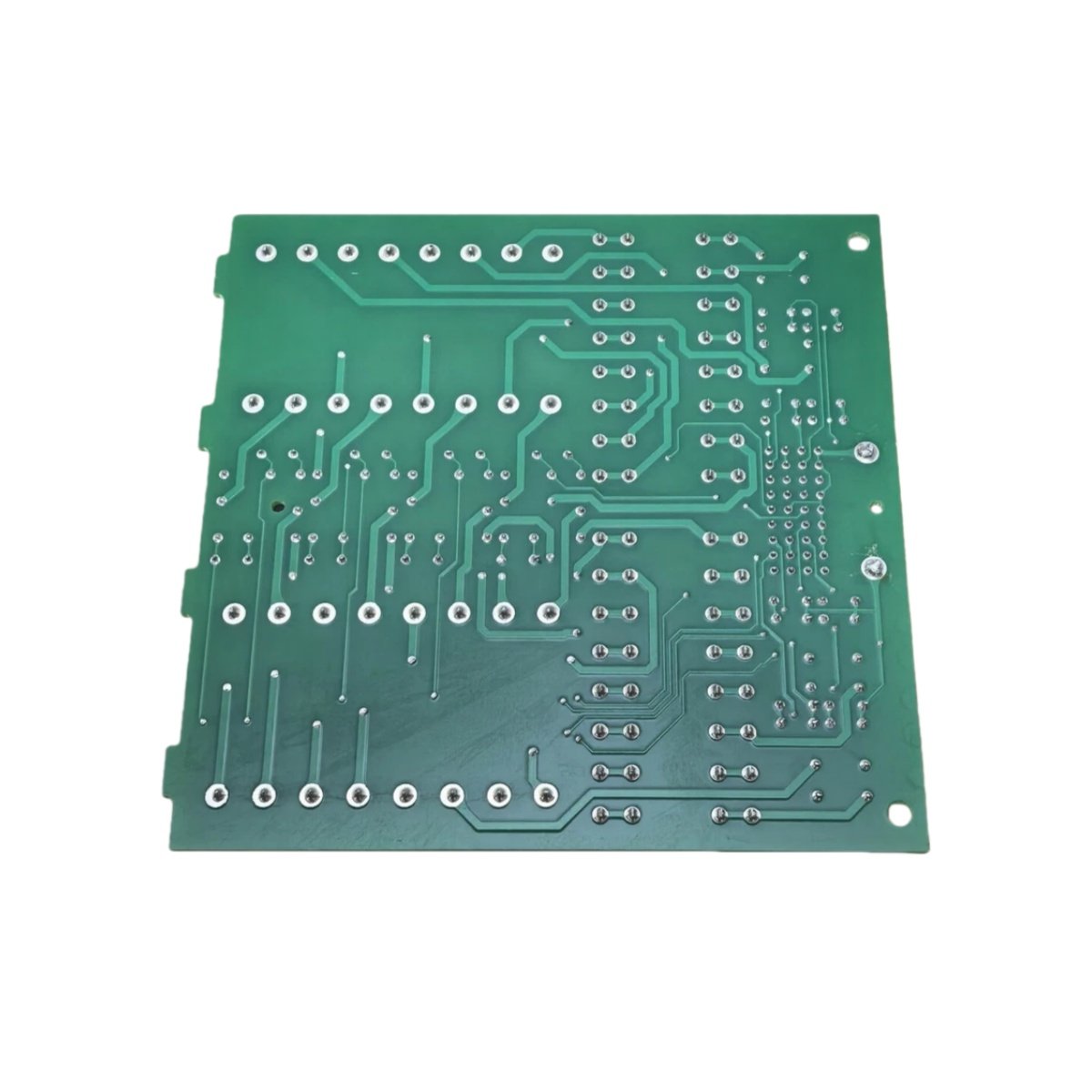

Critical I/O Interface and System Role
This critical I/O interface module manages the most important signals in ABB control systems. It handles up to 32 digital or analog channels for essential process functions. The module provides screw-clamp terminals for reliable field wiring connections. Built-in redundancy features ensure continuous operation during component failures. Therefore, this unit serves applications requiring high availability and safety integrity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model Number | NTRO02-A NTRO02 |
| Channel Count | 32 I/O terminations |
| Termination Style | Screw-clamp terminals |
| Wire Gauge | 16–20 AWG |
| Signal Types | Digital input, digital output, analog |
| Output Fuse Rating | 2.5 A fast-acting per channel |
| Operating Voltage | 250 VAC / 125 VDC max |
| Continuous Current | 2 A per channel |
| Contact Resistance | <20 mΩ |
| Insulation Voltage | 2000 VAC for 1 minute |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Redundancy Support | Built-in for critical channels |
| Operating Temperature | –25°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 140 mm x 240 mm x 80 mm |
| Weight | 0.90 kg |
| Mounting | 35 mm DIN-rail or panel |
| System Interface | 50-pin flat ribbon connector |
| LED Indicators | Power and channel status |
Redundancy Architecture and Fault Tolerance
The NTRO02-A NTRO02 incorporates dual signal paths for critical I/O channels. This design automatically switches to the backup path upon detecting a fault. The module monitors each channel continuously for open circuits or shorts. Integrated diagnostics report any anomalies to the main controller immediately. This redundancy scheme ensures uninterrupted process control in safety-critical applications.
Termination and Wiring Interface
Screw-clamp terminals provide secure connections for all field wiring. Each channel features clearly labeled positive and negative termination points. The unit includes a common ground bus for return signal consolidation. Integrated fuse holders protect each output from short-circuit damage. This wiring arrangement simplifies installation and future maintenance tasks.
Signal Compatibility and Channel Flexibility
This interface module accommodates digital inputs, digital outputs, and analog signals. Each channel operates independently based on the connected field device. The unit supports 24 VDC digital signals and 4–20 mA analog loops simultaneously. Mixed signal configurations require no hardware modifications. Consequently, this flexibility reduces the number of termination units required in a cabinet.
Construction Quality and Component Materials
The housing uses high-strength polyamide with glass fiber reinforcement. Terminal contacts feature copper alloy with protective tin plating. The PCB employs FR-4 laminate with 1.6 mm thickness for stability. All metal hardware undergoes corrosion-resistant treatment. This robust construction ensures reliable operation in harsh industrial environments.
Installation and Mounting Instructions
Mount the unit on a standard 35 mm DIN-rail using the spring clips. Alternatively, use the four corner holes for panel mounting. Maintain at least 50 mm clearance above and below the unit. Strip wire ends to 7–8 mm for optimal terminal insertion. Tighten each screw to 0.5–0.6 Nm with a calibrated torque driver.
Environmental Performance and Maintenance
The NTRO02-A NTRO02 operates reliably from –25°C to +70°C ambient conditions. It tolerates humidity between 5% and 95% without condensation. The unit meets IP20 protection standards for indoor installations. Replace blown fuses with the correct 2.5 A fast-acting type. Perform regular visual inspections of terminal tightness and fuse condition.
Details
| Weight | 0.90 kg |
|---|---|
| Dimensions | 140 × 240 × 80 mm |
