Versatile Termination Interface and Application Scope

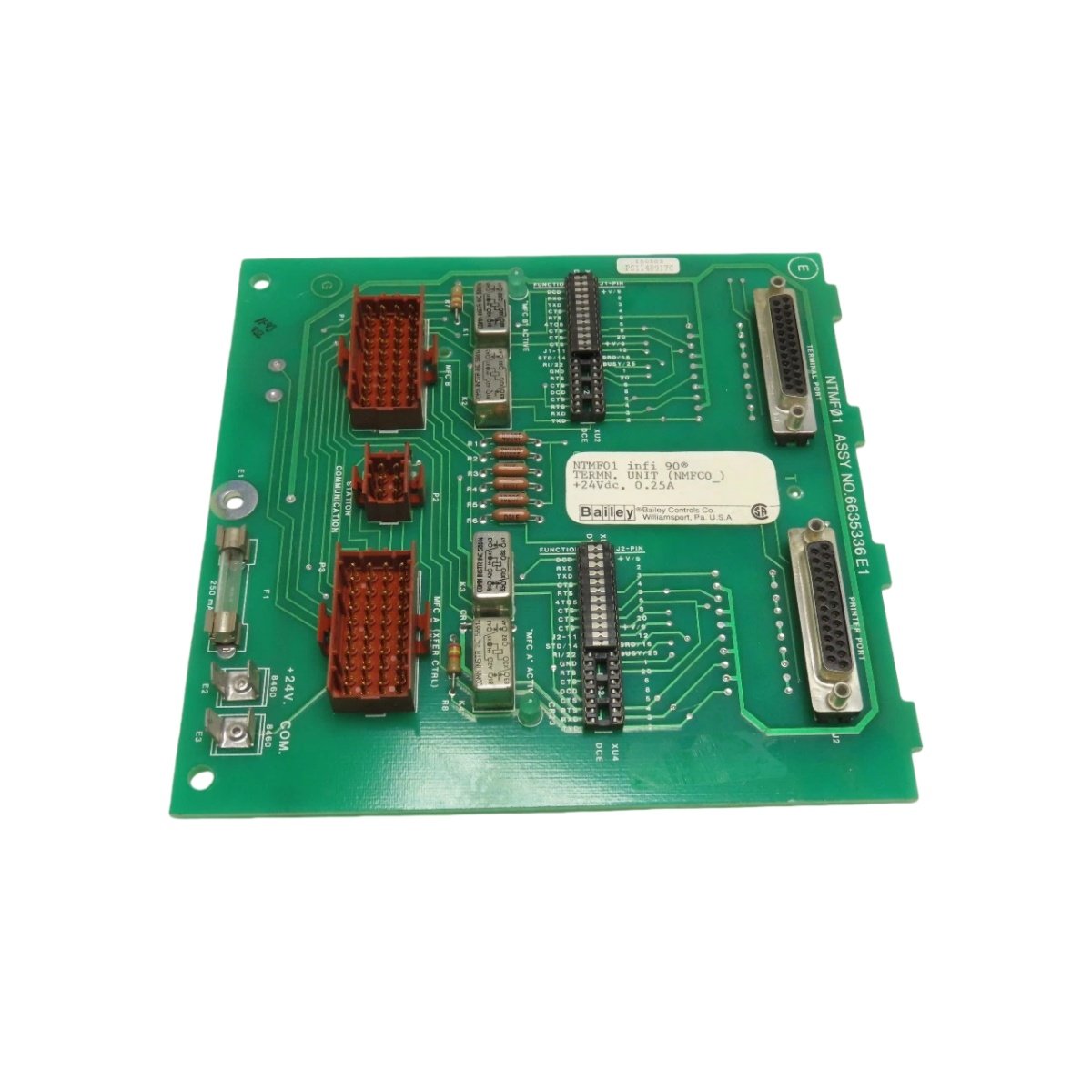

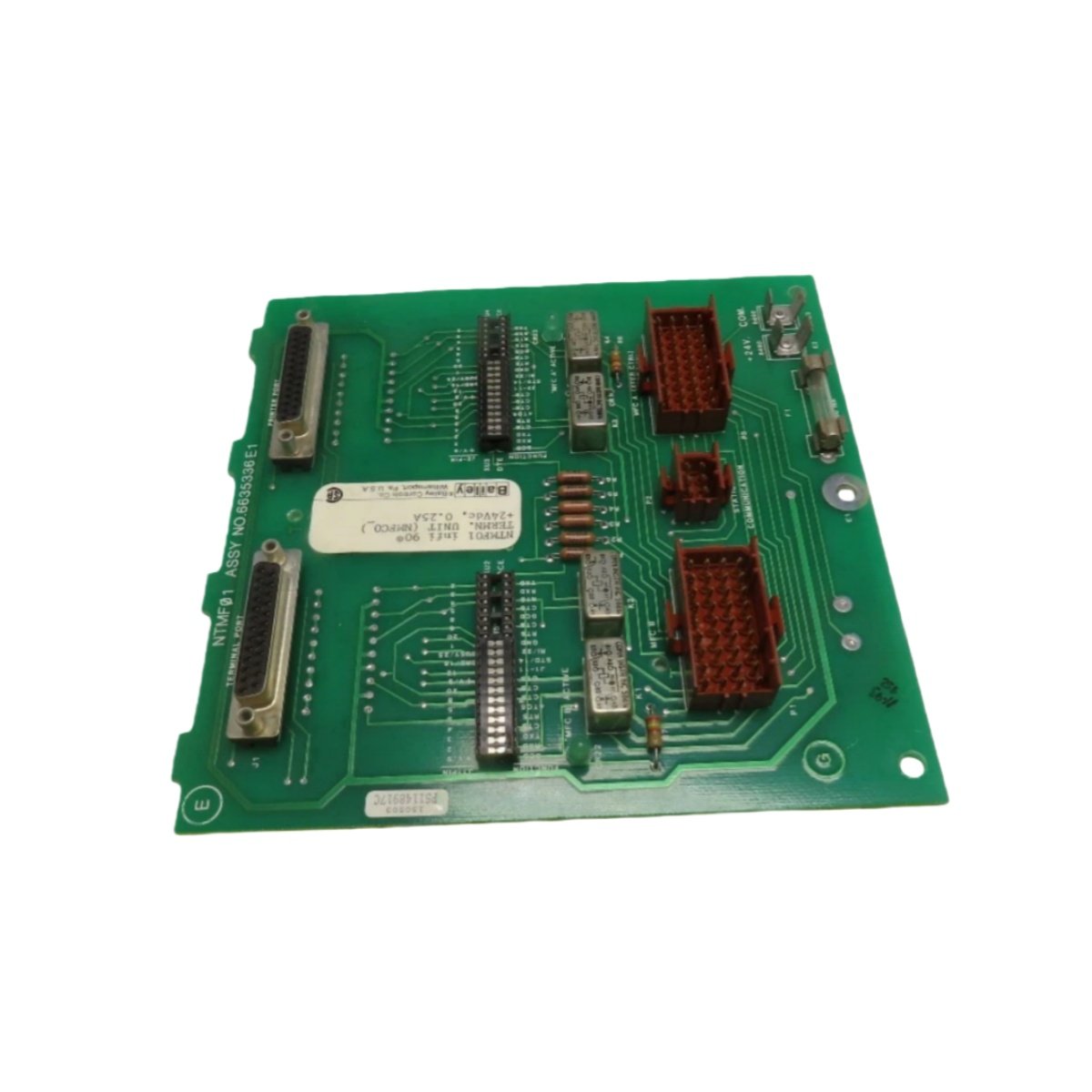

This multi-function termination unit provides a flexible wiring interface for various I/O signal types. It accommodates digital inputs, digital outputs, and analog signals within a single assembly. The unit features 32 termination channels with screw-clamp connections for secure field wiring. A built-in fuse protects each output channel from overcurrent events. This versatility streamlines cabinet design and reduces the need for multiple termination types.

Technical Specifications

Signal Compatibility and Channel Flexibility

The NTMF01 handles a wide range of signal types without requiring hardware modifications. It supports 24 VDC digital inputs, 24 VDC digital outputs, and 4–20 mA analog signals simultaneously. Each channel serves independently as either input or output based on field wiring. The unit provides individual common terminals for flexible grouping. This adaptability simplifies the interface between field devices and ABB control systems.

Wiring Architecture and Connection Reliability

Screw-clamp terminals with rising cage mechanisms ensure secure wire retention over time. Each channel includes two termination points for signal and return. The unit features a common ground bus for simplified wiring of multiple channels. Integrated fuses guard each output circuit against short-circuit damage. Furthermore, clearly numbered terminals match the corresponding I/O module pinouts.

Protection Features and Circuit Integrity

Individual 2.5 A fuses protect every output channel from excessive current. The fuse holders accept standard 5×20 mm cartridge fuses for easy replacement. Input channels incorporate current-limiting resistors to prevent overdrive. This protection strategy safeguards the connected I/O module from field wiring faults. Consequently, system availability increases through reduced component damage.

Module Interface and Signal Routing

A 50-pin ribbon cable connects the termination unit to the ABB processing module. This single interface transfers all 32 field signals simultaneously. The connector features a polarization key to prevent incorrect installation. Signal mapping follows a predefined pin assignment table. Verify the cable orientation carefully before system startup.

Mechanical Construction and Material Quality

The housing utilizes glass-reinforced polyamide for exceptional mechanical strength. Terminal contacts use copper alloy with a tin plating for low contact resistance. The PCB employs FR-4 material with 1.6 mm thickness for rigidity. All hardware components feature corrosion-resistant finishes. This robust construction ensures reliable performance in industrial settings.

Installation and Setup Instructions

Mount the unit onto a 35 mm DIN-rail using the integrated spring clips. Secure it to a panel using the four corner mounting holes if preferred. Route field wiring through the cable entry points before termination. Strip wire ends to 7–8 mm for optimal terminal insertion. Tighten each terminal screw to 0.5–0.6 Nm of torque.

Environmental Durability and Maintenance

The NTMF01 operates reliably from –25°C to +70°C ambient temperatures. It tolerates 5% to 95% relative humidity without condensation issues. The unit meets IP20 protection standards for enclosed installations. Replace blown fuses immediately with the specified rating. Inspect terminal tightness periodically to maintain signal integrity.
