Technical Specifications Overview

Functional Overview and Network Bridging

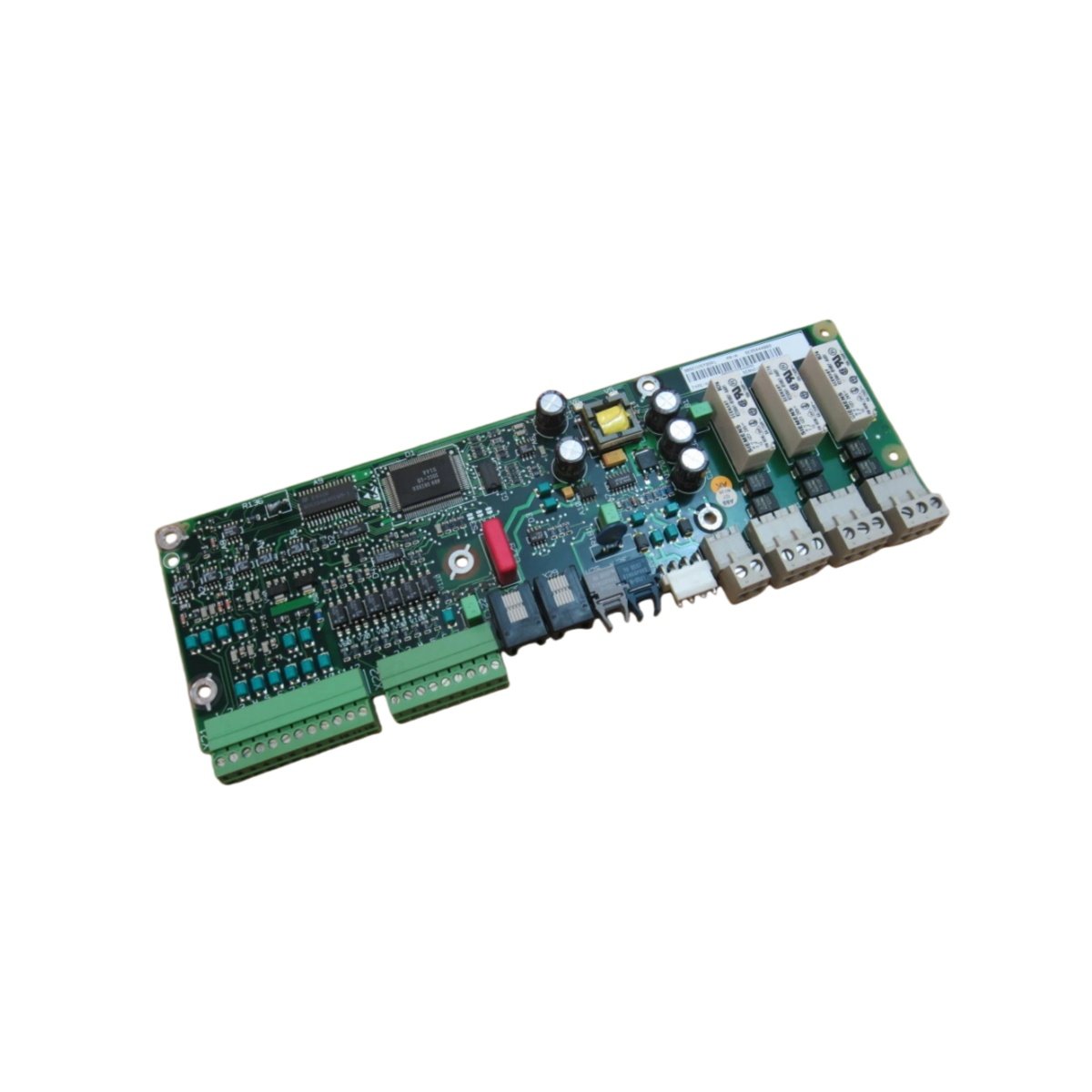

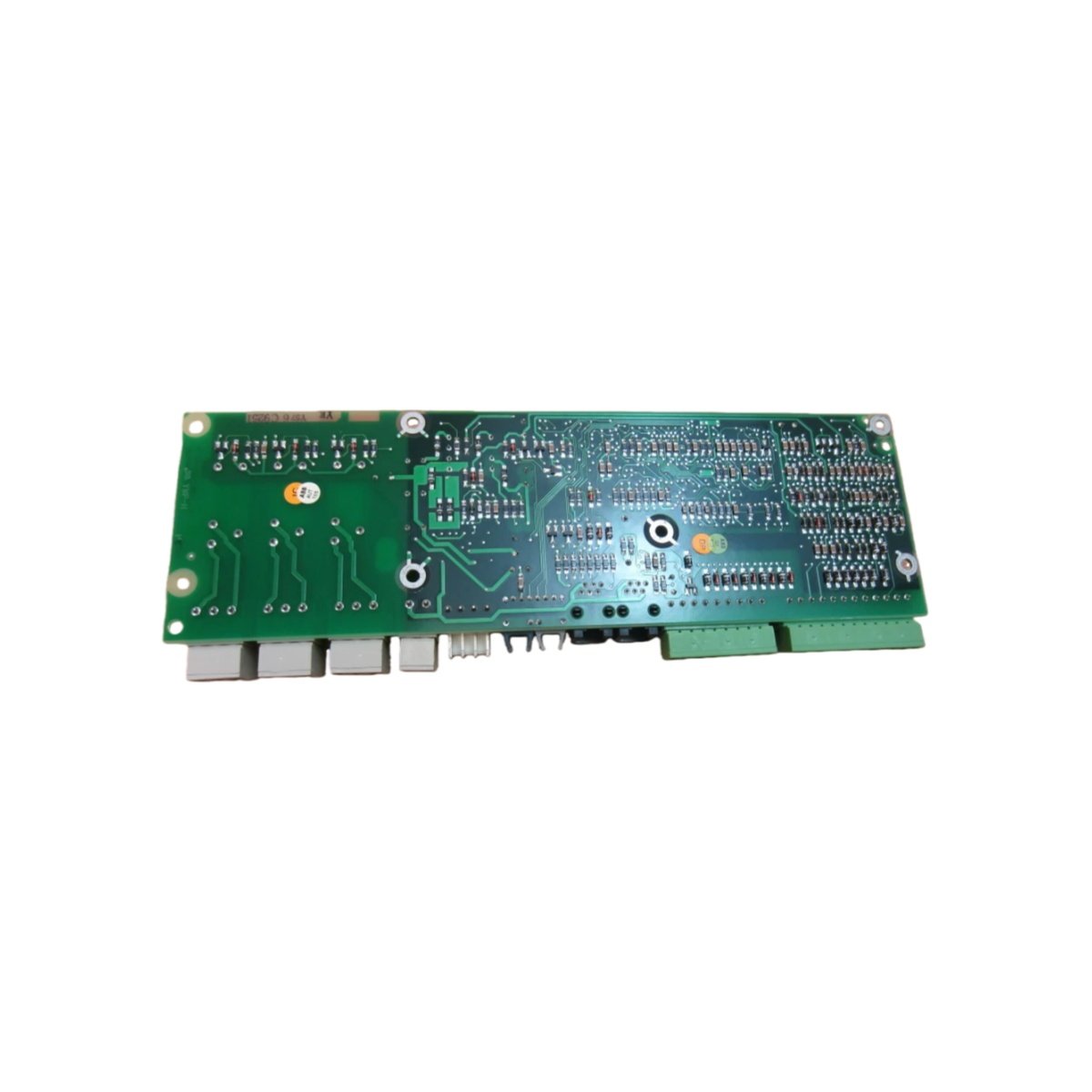

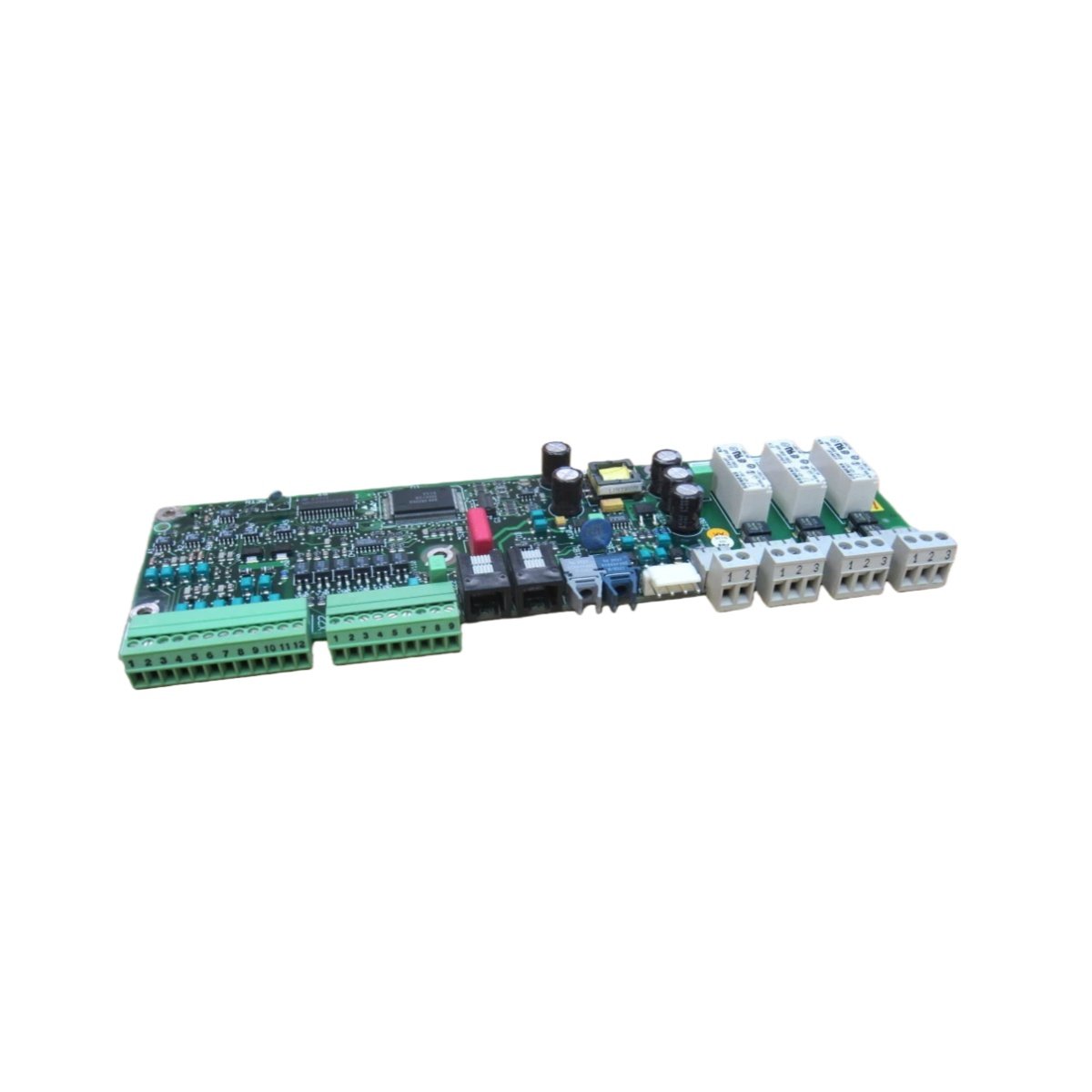

This communication unit bridges ABB control systems with external networks and field devices. It handles protocol conversion for seamless data exchange across different networks. The NI0CP-01 supports both serial and Ethernet communication standards simultaneously. Moreover, the module operates independently of the main CPU for communication tasks. This design offloads protocol handling from the primary controller. The unit also provides data buffering for reliable message delivery. Consequently, field devices with different interfaces can share data with the central system.

Communication Protocols and Interface Configuration

The ABB NI0CP-01 supports multiple industrial protocols for maximum flexibility. MODBUS RTU and TCP enable connectivity with thousands of third-party devices. PROFIBUS DP provides high-speed fieldbus integration for distributed I/O. The module also supports the ABB INN protocol for native system communication. Each of the three interfaces operates with its own protocol settings. You can configure baud rates, parity, and addressing independently per port. The module also supports mixed-mode operation with different protocols simultaneously.

Data Handling and Buffering Architecture

The unit incorporates substantial data buffering to prevent message loss during network congestion. Each serial port includes a 256 KB FIFO for incoming and outgoing data. This buffer stores messages while the CPU processes other tasks. The Ethernet port also includes dedicated packet memory for TCP/IP stacks. The NI0CP-01 automatically handles message fragmentation and reassembly. This capability supports large data transfers across serial networks. The module also implements error checking and retransmission for reliable communication.

Physical Architecture and Mounting Specifications

The module measures 45 mm x 130 mm x 105 mm (1.8″ x 5.1″ x 4.1″) and weighs approximately 0.22 kg. Its compact dimensions suit space-constrained control cabinets. The front panel provides one RJ45 connector for Ethernet cabling. Two removable 5-pin terminal blocks handle RS-485 wiring for serial ports. The backplane connector interfaces with the controller’s communication bus. The module mounts on a standard DIN rail using an integrated latch. The depth of 105 mm ensures easy cable routing behind the panel.

Status Indication and Diagnostic Capabilities

Six front-panel LEDs provide comprehensive status monitoring for technicians. A Power LED confirms the presence of correct supply voltage. A Run LED indicates normal module operation. An Error LED alerts users to configuration faults or protocol errors. An Ethernet Link LED shows active network connectivity with speed indication. Two dedicated LEDs display data activity on each serial port. The module also logs communication statistics and error counters internally. Through the system software, you can access detailed diagnostic information.

Power Supply and Energy Storage Features

The module draws 100 mA from a 24 VDC external power supply. This low consumption makes it suitable for power-sensitive installations. The internal 220 µF capacitor provides ride-through during brief interruptions. The module also includes transient suppression on all communication ports. This suppression protects against electrostatic discharge and voltage spikes. Reverse-polarity protection prevents damage from accidental wiring errors.

Configuration and Commissioning

DIP switches on the module enable basic configuration without software tools. You can set the MODBUS address, baud rate, and parity through these switches. Advanced parameters require configuration through ABB software tools. The module also supports remote configuration via the Ethernet port. This remote access simplifies commissioning of distributed installations. The module retains configuration in non-volatile memory indefinitely.

Environmental Conditions and Certifications

The module operates reliably from 0°C to +60°C. Storage temperatures range from -40°C to +85°C. The unit carries CE, UL, and CSA certifications. Install the module in a clean, dry control cabinet. The module also complies with PROFIBUS DP standards for fieldbus interoperability.
