Technical Specifications Overview

Functional Overview and Control Capabilities

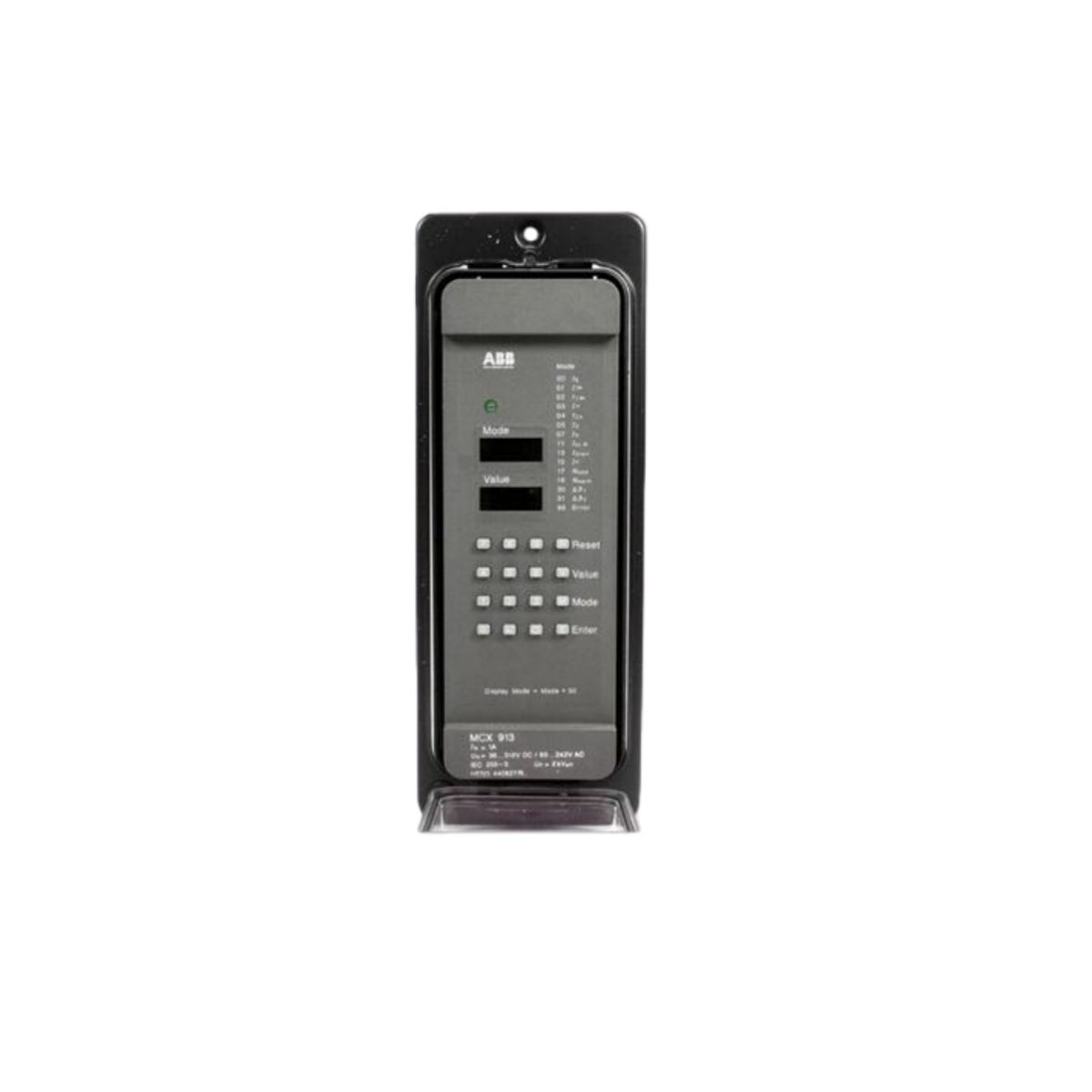

This control board provides a compact, self-contained solution for small to medium automation tasks. It handles both logic control and analog process regulation functions. The MCX913-1-5-1 HESG440827R51 HESG112835/A combines digital and analog I/O in a single module. Moreover, the board integrates communication ports for connectivity to external systems. This integration reduces the need for multiple separate modules. The board runs custom application programs stored in its onboard flash memory. Consequently, it suits standalone control applications or distributed I/O nodes.

I/O Configuration and Signal Processing

The ABB MCX913-1-5-1 HESG440827R51 HESG112835/A offers a balanced mix of I/O channels. Sixteen digital inputs accept 24 VDC signals from sensors, switches, and pushbuttons. Eight digital outputs drive relays, solenoids, or indicator lamps at 0.5 A per channel. Four analog inputs accept standard process signals from transmitters and transducers. Two analog outputs provide control signals for actuators or recorders. Each analog channel delivers 12-bit resolution for precise signal representation. Furthermore, you can individually configure each analog input for current or voltage ranges.

Processing Architecture and Memory Organization

The board features a 16-bit microcontroller running at 40 MHz for responsive control. Its 512 KB SDRAM supports complex logic and data processing tasks. The 1 MB flash memory stores the application program, configuration parameters, and historical data. The HESG440827R51 also includes a real-time clock for scheduled operations and time-stamped events. The processor executes program cycles typically within a 10 ms scan time. This speed meets the demands of most process control applications. The board also supports interrupt-driven inputs for time-critical responses.

Physical Architecture and Mounting Specifications

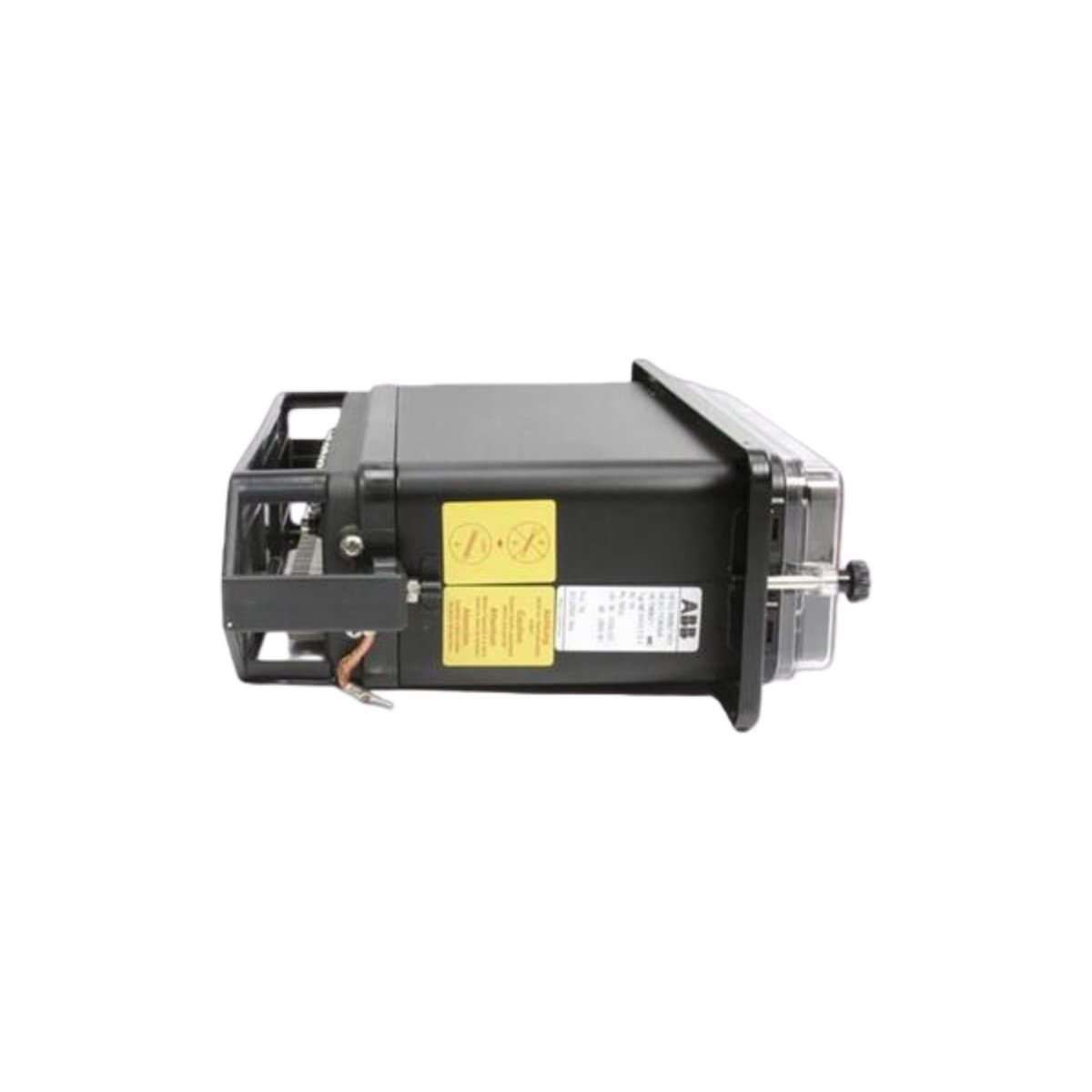

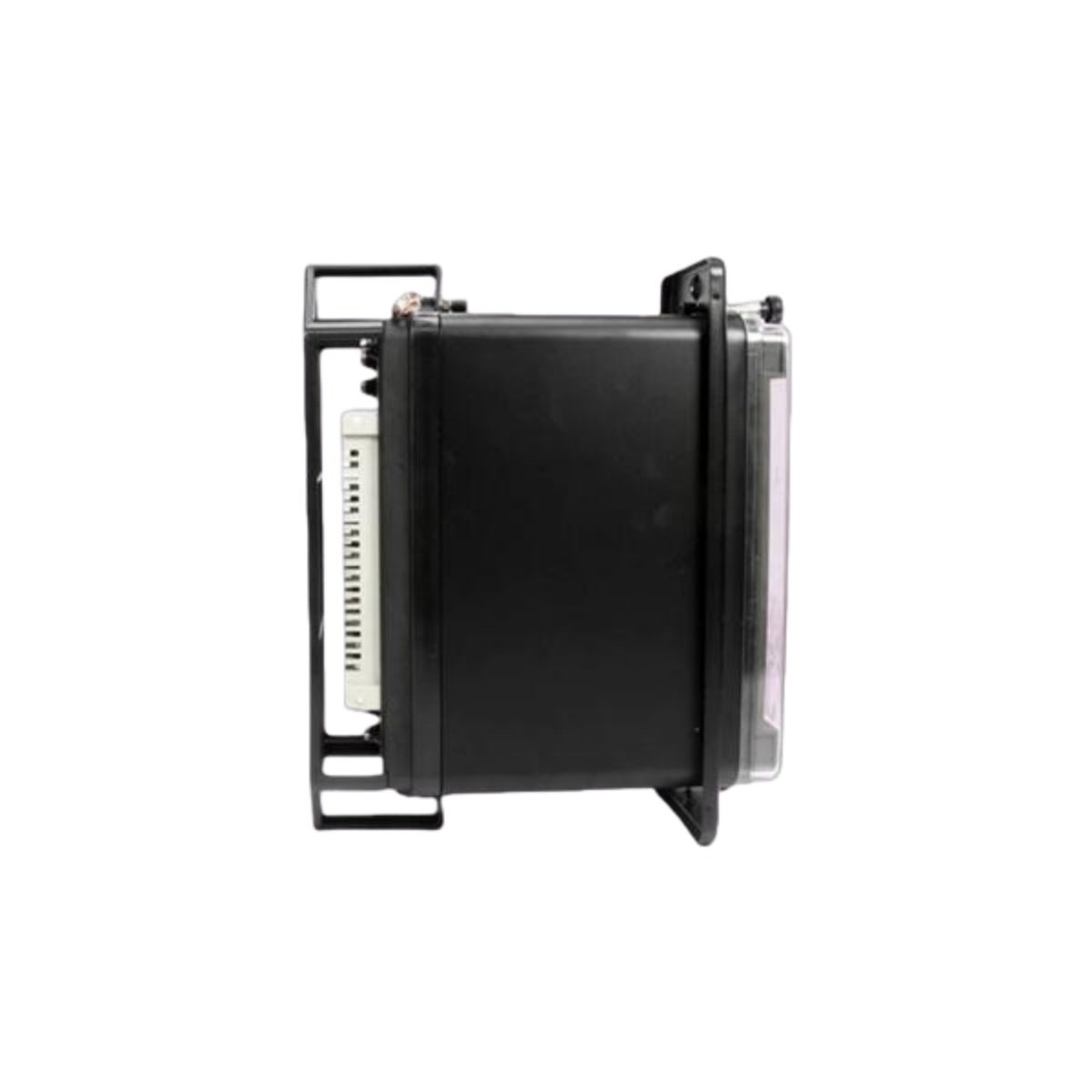

The module measures 50 mm x 160 mm x 120 mm (2.0″ x 6.3″ x 4.7″) and weighs approximately 0.65 kg. Its robust construction suits industrial panel mounting. The front panel provides removable terminal blocks for all I/O connections. This design simplifies wiring and maintenance procedures. A 40-pin backplane connector interfaces with the system bus. The module also includes a DIN rail latch for secure installation. The depth of 120 mm accommodates standard enclosure clearances.

Power Supply and Energy Storage Features

The board draws 200 mA from a 24 VDC external power supply. The internal 1000 µF bulk capacitor provides substantial energy storage. This capacitance supports operation through brief power interruptions. The power supply section includes transient suppression and filtering. These features ensure reliable performance in electrically noisy environments. The board also includes reverse-polarity and overvoltage protection.

Communication and System Integration

The module provides RS-232 and RS-485 ports for versatile connectivity. You can use these ports for programming, data exchange, or SCADA integration. The board supports MODBUS RTU protocol for communication with external devices. It also supports a simple ASCII protocol for custom interfaces. Engineers can configure the board using standard ABB programming tools. The module also supports remote firmware updates via the communication ports.

Environmental Conditions and Certifications

The module operates reliably from 0°C to +55°C. Storage temperatures range from -40°C to +85°C. The unit carries CE, UL, and CSA certifications. Install the board in a clean, dry environment. The module also complies with IEC 61131-2 for programmable controllers.
