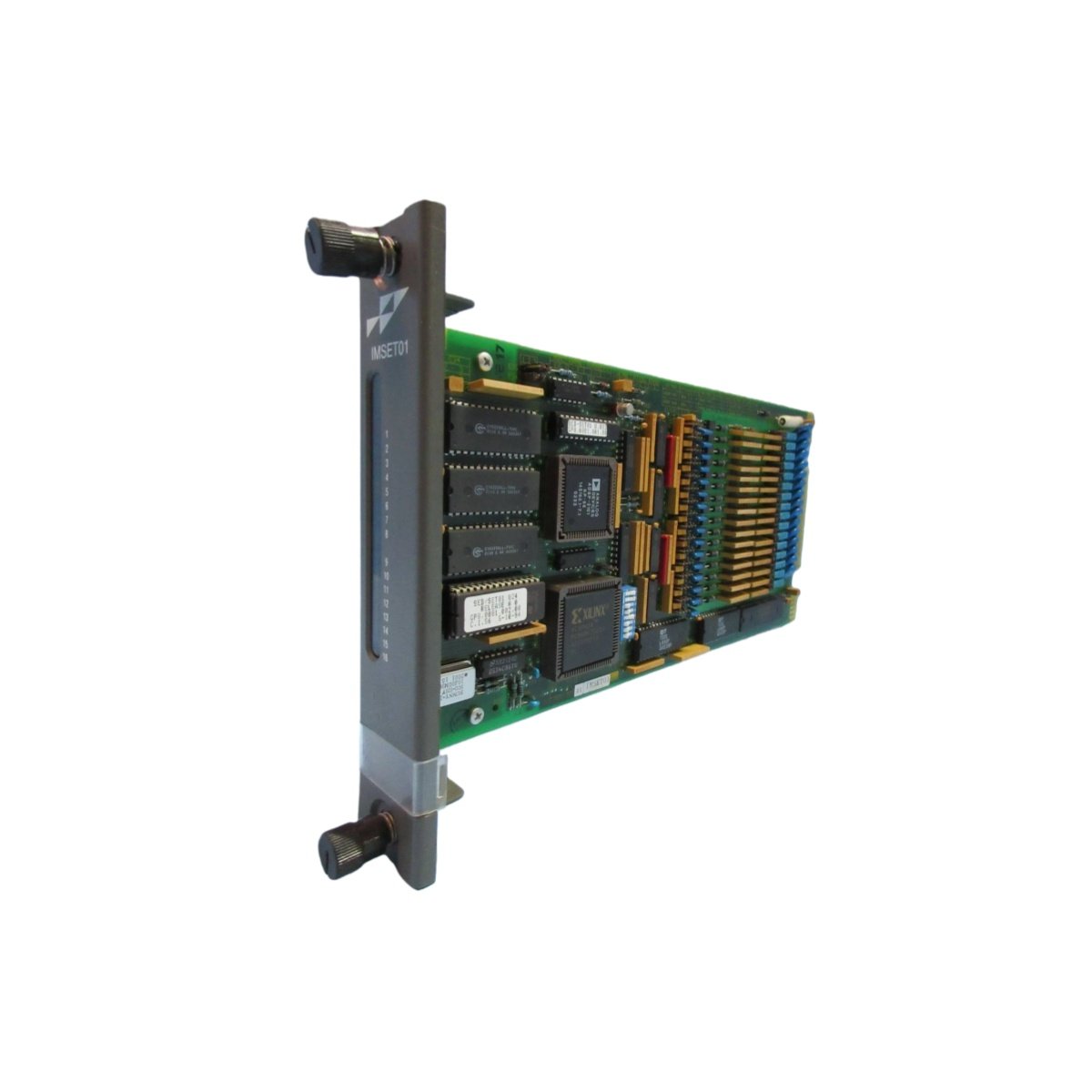

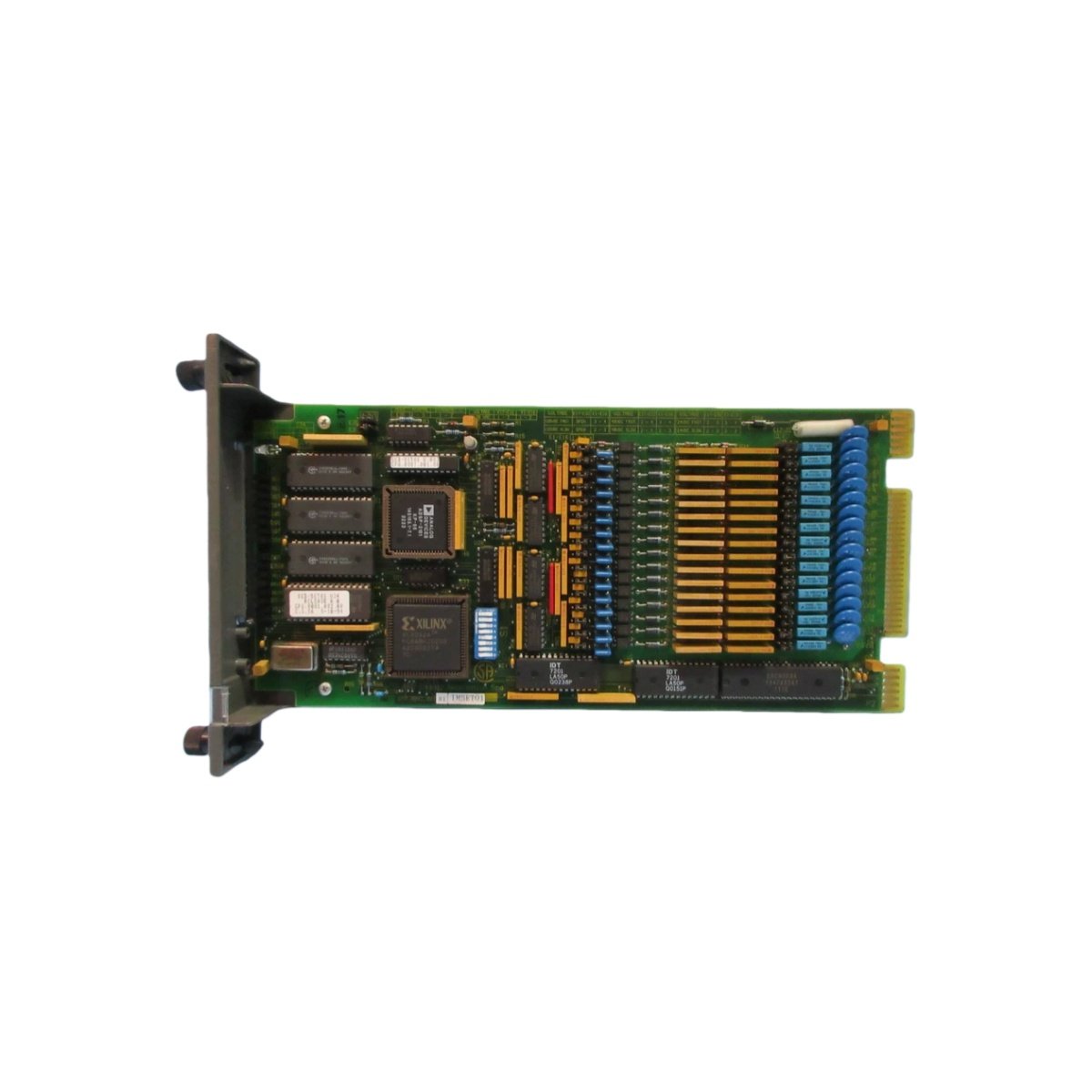

This precision time synchronization module maintains accurate timing across ABB distributed control systems. The ABB IMSET01 provides a reliable real-time clock reference for time-stamped events and sequence-of-events recording. It synchronizes multiple controllers and I/O modules to a common time base. Process engineers rely on this module for fault diagnosis and production analysis. Its battery-backed design ensures continuous timekeeping during power interruptions.

Technical Specifications Summary

Precision Timekeeping and Synchronization

The module maintains exceptional time accuracy with its quartz oscillator reference. This oscillator achieves ±5 parts per million stability at 25 degrees Celsius. Such precision translates to less than 2.6 minutes of drift per year. The ABB IMSET01 accepts external synchronization from GPS, IRIG-B, or 1 PPS signals. It automatically adjusts its internal clock to match the selected reference source. When the primary source fails, the unit continues operating with its internal oscillator. This fallback ensures uninterrupted time services during temporary signal loss periods. The module distributes synchronized time to all connected system components.

Time-Stamped Event Recording and Storage

For sequence-of-events analysis, the module records events with 1-millisecond resolution. It captures state changes from digital inputs and alarms with precise timestamps. The onboard 512 KB memory buffer stores up to 8000 individual events. Once the buffer reaches capacity, older events overwrite automatically in cyclic fashion. Users can retrieve event logs through the controller’s communication interface. Plant engineers use this data for fault diagnosis and root cause analysis. The high-resolution timing reveals event sequences that standard PLC scans might miss. This capability proves essential for troubleshooting intermittent faults and nuisance trips.

Battery-Backed Data Preservation

A replaceable 3.6 V lithium battery safeguards the timekeeper’s settings and memory. This battery maintains the real-time clock and event buffer during power outages. The battery provides a minimum of 10 years of backup under normal operating conditions. A low-battery indicator alerts maintenance personnel well before depletion occurs. Replacing the battery does not require removing the module from the chassis. This hot-swappable design eliminates downtime for preventive maintenance activities. The module retains all programmed parameters during battery replacement procedures. Ultimately, this design ensures continuous time-keeping through the module’s entire service life.

Communication Interfaces and System Integration

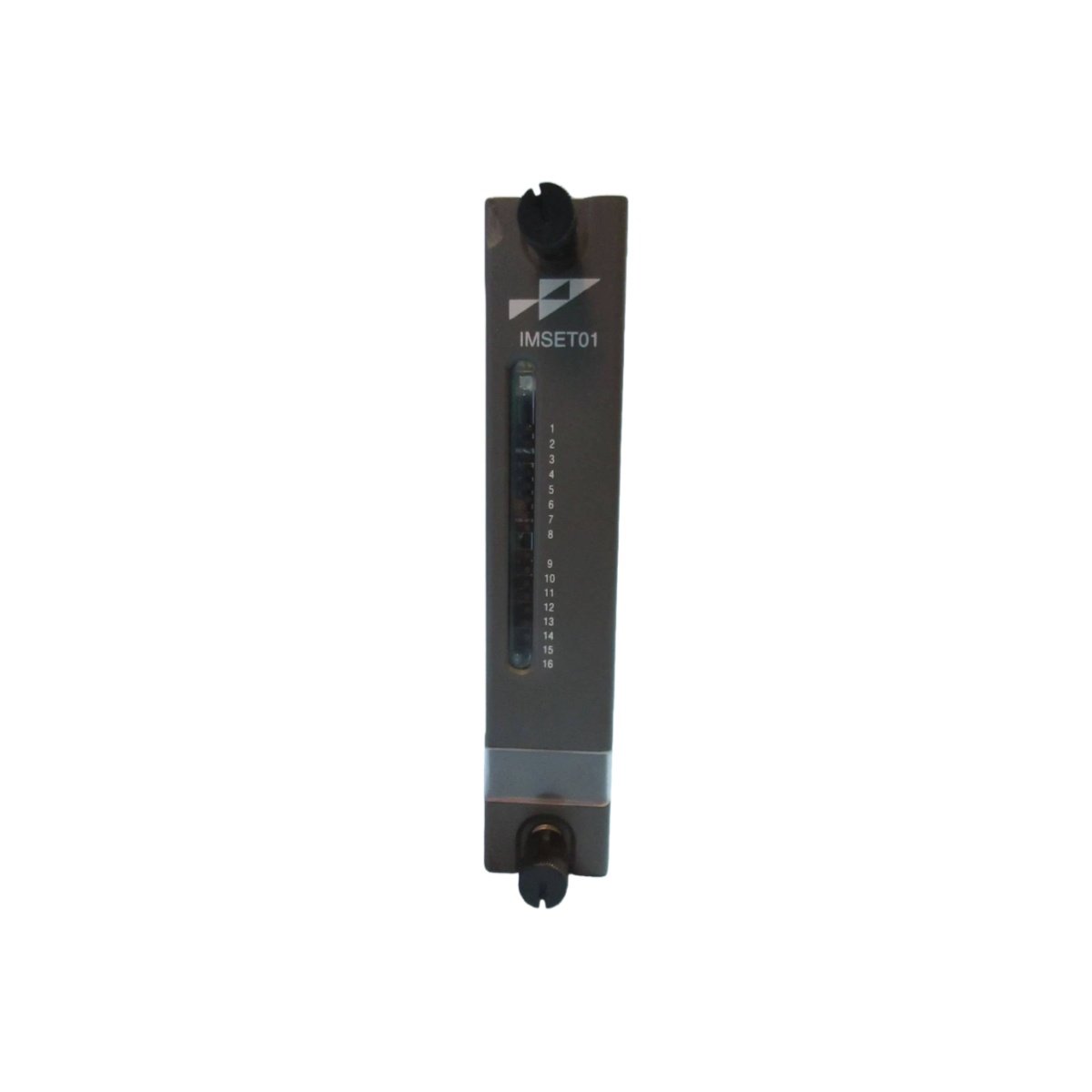

The module distributes synchronized time through multiple communication channels. Two independent RS-485 outputs broadcast time information to other system components. These outputs support IRIG-B format, MODBUS time strings, and ABB proprietary protocols. The ABB IMSET01 connects to the host controller via the Module Bus interface. This connection allows the CPU to read the current time and event logs. Front-panel LEDs display synchronization status and power conditions clearly. Users can configure time zone offsets and daylight saving adjustments through software. These integration features make the module adaptable to global installations.

Mechanical Construction and Environmental Specifications

This timekeeper module fits into the standard ABB 7-slot chassis footprint. The unit measures 45 millimeters high, 335 millimeters wide, and 235 millimeters deep. Total weight reaches 1.6 kilograms with all components and shielding. Power consumption averages only 12 watts from the +5 V DC backplane supply. Operating temperature ranges from 0 °C to 55 °C for control room environments. Storage conditions span -25 °C to 70 °C for warehouse and transportation phases. Relative humidity tolerance extends from 5% to 95% without condensation issues. The module’s robust construction ensures reliable long-term operation without maintenance.
