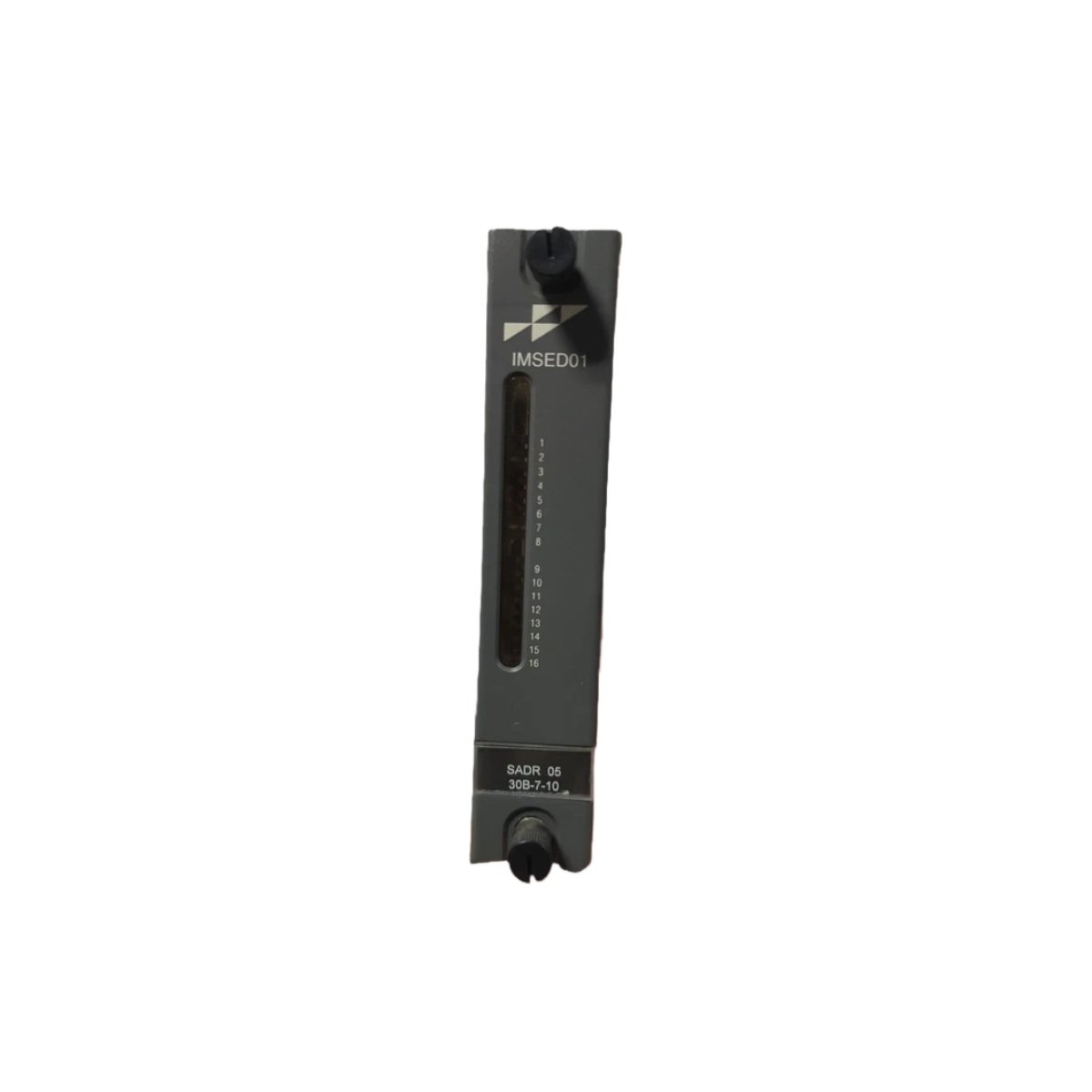

This high-density digital input module captures discrete field signals for ABB control systems. The ABB IMSED01 accepts 24 V DC signals from switches, sensors, and pushbuttons across 64 individual channels. It converts these field states into digital data for the host controller’s logic engine. Control engineers choose this module for its exceptional channel density and space-saving design. Its reliable performance makes it ideal for large-scale discrete manufacturing and process monitoring applications.

Technical Specifications Summary

High-Density Channel Architecture

The module packs 64 digital input points into a single standard chassis slot. This high density saves valuable rack space for additional function cards. Each channel accepts 24 V DC signals from field devices like proximity sensors and limit switches. The input circuitry recognizes ON states from 18 to 30 V DC reliably. Input current draws only 5 milliamperes per channel at nominal voltage. This low current minimizes heat generation and reduces power supply loading. The module scans all 64 channels completely within 2 milliseconds. Such rapid scanning captures fast events and short-duration pulses effectively.

Advanced Input Filtering and Noise Rejection

Industrial environments generate electrical noise that can corrupt digital signals frequently. The ABB IMSED01 incorporates programmable input filters to reject transient disturbances. Users configure the debounce time from 0.5 milliseconds to 10 milliseconds per group. This adjustable filtering accommodates both slow mechanical contacts and fast electronic sensors. The module also includes hysteresis to prevent chatter at switching thresholds. All input circuits feature 1500 V RMS optical isolation from the logic side. This isolation protects the controller from ground loops and voltage surges effectively. Consequently, the module maintains signal integrity even in electrically noisy plant areas.

Communication and Data Exchange

The module interfaces with the host processor through the high-speed Module Bus. This communication link transfers input status data deterministically for real-time control. The ABB IMSED01 supports both polled and interrupt-driven data reporting modes. In polled mode, the controller requests input data at scheduled intervals. In interrupt mode, the module alerts the CPU upon state changes. This flexibility optimizes communication bandwidth for different application requirements. Front-panel LEDs indicate each input channel’s current status for visual verification. Engineers can troubleshoot wiring issues quickly without needing handheld tools or software.

Mechanical Design and Installation

This digital input module features a compact, lightweight design for easy handling. The unit measures 45 millimeters in height, 335 millimeters in width, and 235 millimeters in depth. It occupies one standard 7-slot position in the ABB chassis system. Total weight reaches only 1.5 kilograms, simplifying installation and replacement procedures. The module draws 18 watts from the +5 V DC backplane supply. Field wiring connects through a two-piece terminal block with screw clamps. This removable connector allows pre-wiring before module insertion. DIN-rail mounting provisions accommodate various cabinet configurations conveniently.

Environmental Performance and Reliability

Control room environments demand stable operation under varying temperature conditions. The ABB IMSED01 operates across a 0 °C to +60 °C temperature range reliably. Storage temperatures from -25 °C to +70 °C protect components during shipping. Relative humidity tolerance covers 5% to 95% without condensation affecting performance. Conformal coating safeguards the circuit board from moisture and dust contamination. Quality components ensure a mean time between failures exceeding 500,000 hours. These features deliver dependable service throughout the module’s operational lifetime.
