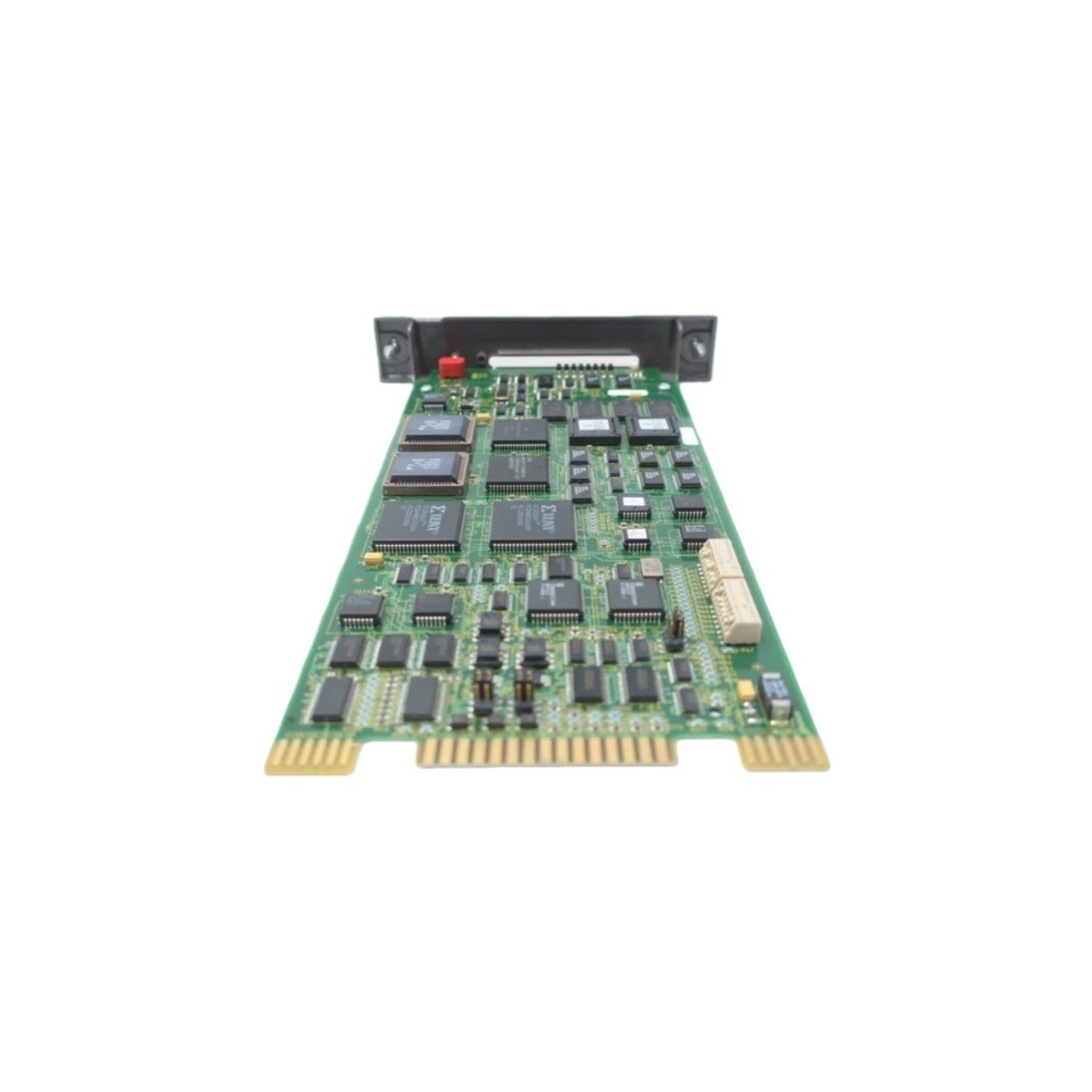

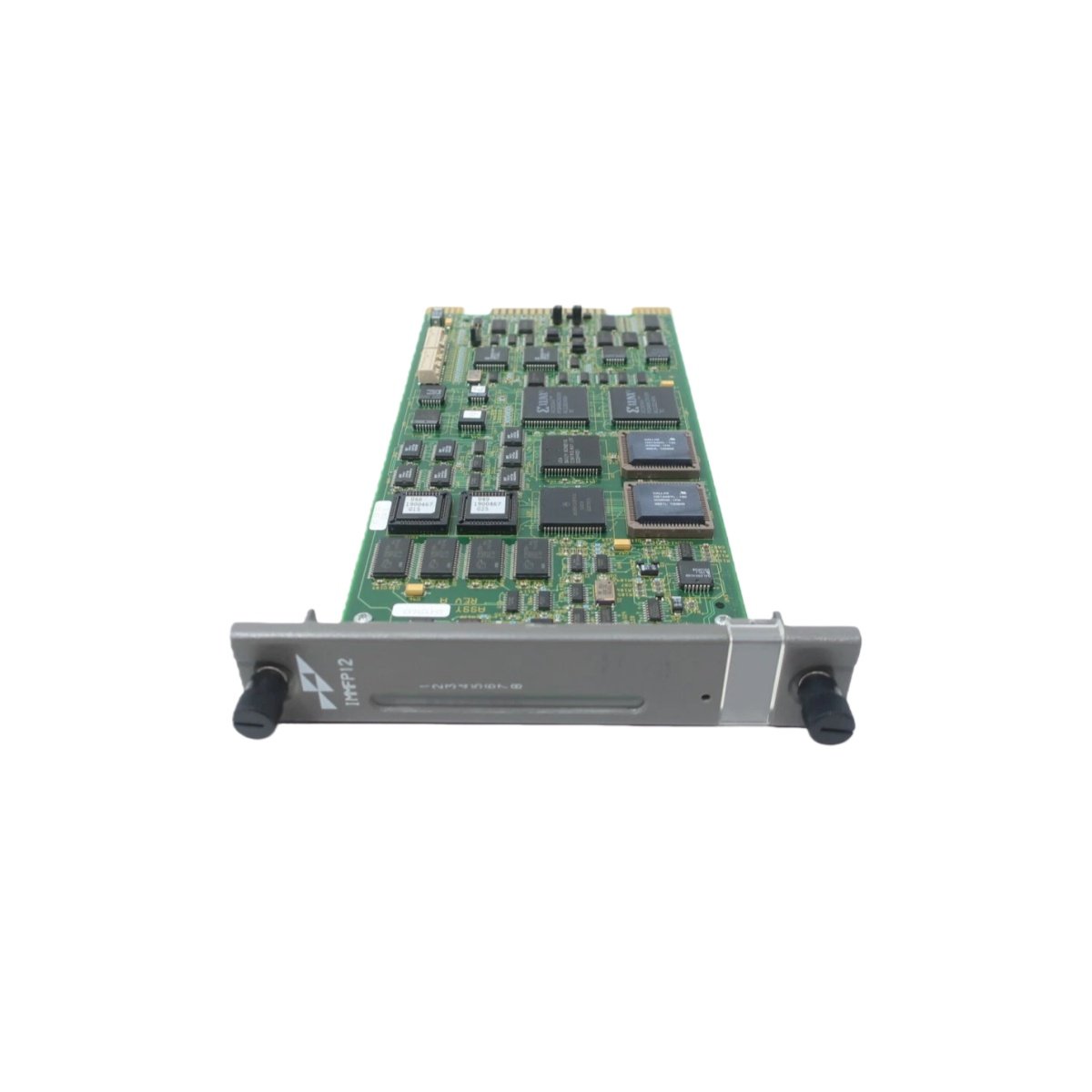

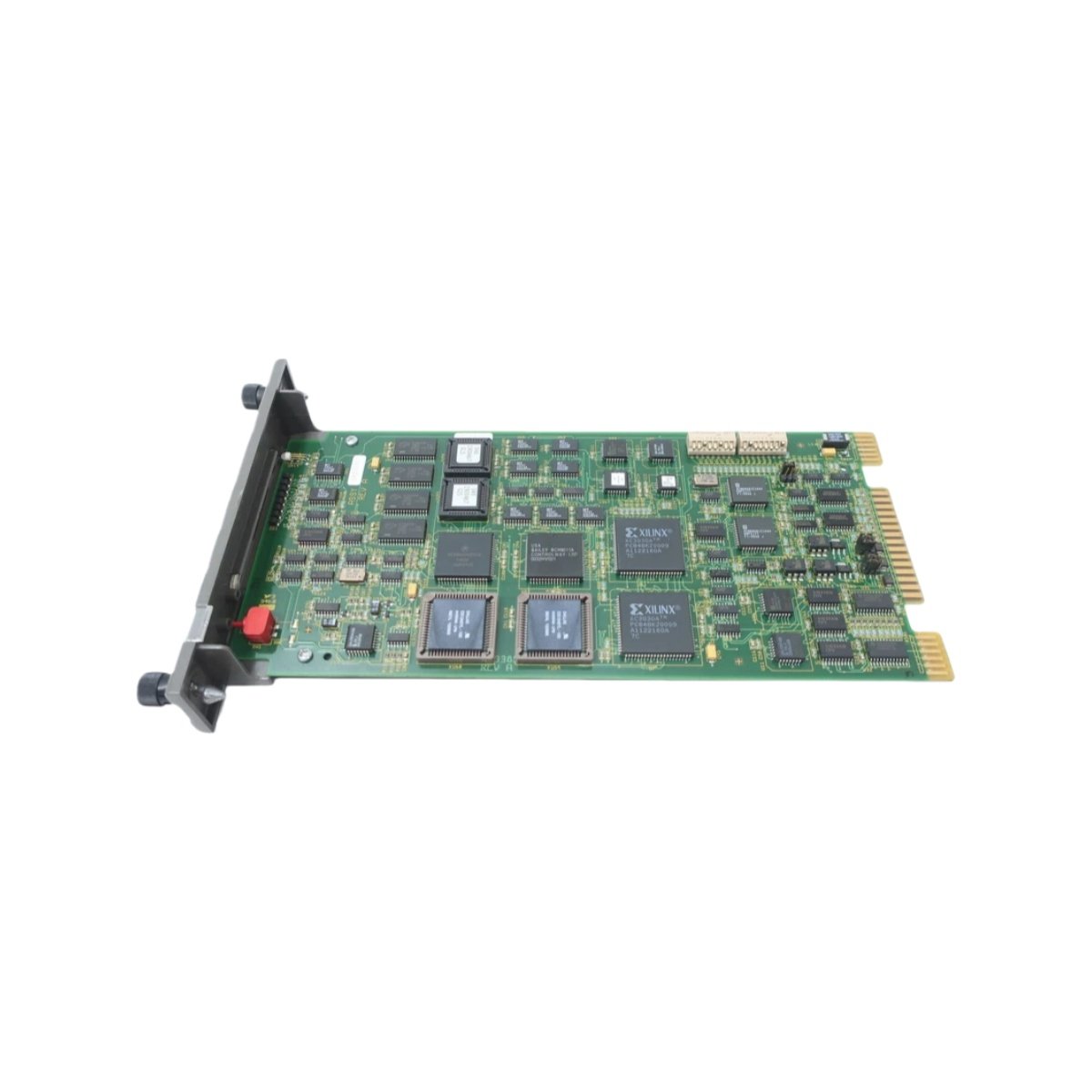

This advanced processor module serves as a high-performance computational engine for ABB distributed control systems. The ABB IMMFP12 combines robust processing power with extensive memory resources for demanding automation tasks. It handles complex regulatory control, sequential logic, and data acquisition functions efficiently. Plant engineers rely on this unit for critical applications in power, chemical, and pulp industries. Its modular design simplifies maintenance and reduces mean time to repair significantly.
Technical Specifications Summary
| Parameter | Specification |
|---|---|
| Processor | 32-bit MC68040 at 40 MHz |
| Flash Memory | 16 MB for firmware and applications |
| DRAM | 32 MB for runtime data storage |
| SRAM with Battery Backup | 2 MB for critical parameter retention |
| Serial Ports | 1x RS-232-C, 1x RS-422/485 |
| Module Bus Speed | 5 Mbps for controller synchronization |
| Digital Inputs | 32 channels, 24 V DC, 0.5 A each |
| Digital Outputs | 32 channels, 24 V DC, 0.5 A each |
| Analog Inputs | 16 channels, 14-bit resolution |
| Analog Outputs | 8 channels, 12-bit resolution |
| Dimensions (H x W x D) | 62 mm x 368 mm x 320 mm |
| Weight | 2.9 kg |
| Power Consumption | 55 W from +5 V DC supply |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Battery Life | Minimum 5 years for SRAM backup |
Processing Capabilities and Memory Architecture
The module features a 32-bit MC68040 processor operating at 40 MHz for balanced performance and reliability. This processor executes floating-point operations and integer calculations with exceptional throughput. Onboard memory includes 16 MB of flash memory storing the operating system and application code. The unit also provides 32 MB of DRAM for dynamic data storage during runtime operations. A dedicated 2 MB SRAM section retains critical configuration parameters through battery backup. This battery-backed memory preserves alarm logs, setpoints, and tuning constants during power loss events. The processor supports multitasking operations for concurrent execution of multiple control loops seamlessly.
Communication Interfaces and Network Integration
For flexible system connectivity, the module includes several communication ports and interfaces. One RS-232-C port facilitates local commissioning, troubleshooting, and firmware upgrades conveniently. A second RS-422/485 port supports long-distance communication with remote I/O stations up to 1200 meters away. The module also incorporates a high-speed Module Bus interface for controller-to-controller data exchange. This interface achieves transfer rates of 5 Mbps for real-time synchronization across multiple processors. An optional fiber-optic adapter provides electrical isolation and noise immunity in electrically harsh environments. These communication options ensure seamless integration with existing ABB Advant OCS and MOD 300 systems.
Input/Output Capabilities and Signal Processing
The ABB IMMFP12 includes comprehensive I/O handling features directly on the processor board. It provides 32 digital input channels and 32 digital output channels with full optical isolation. Each digital channel operates at 24 V DC with a current capacity of 0.5 amperes per point. The module also supports 16 analog input channels with 14-bit resolution for precision measurement applications. Eight analog output channels deliver 0-10 V or 4-20 mA signals with 12-bit resolution. All analog channels include programmable scaling, filtering, and linearization functions for versatile sensor interfacing. This integrated I/O capability reduces the need for separate I/O modules in smaller systems.
Physical Specifications and Power Characteristics
This processor module measures 62 millimeters in height, 368 millimeters in width, and 320 millimeters in depth. The unit occupies a standard 9-slot position within the ABB 800xA chassis system. Total weight reaches 2.9 kilograms, reflecting its reinforced metal enclosure and robust construction. Power consumption typically averages 55 watts from the +5 V DC backplane supply. Peak inrush current reaches 12 amperes during the initial power-on reset sequence. The module incorporates an efficient heat sink for passive thermal management. Operating temperature spans 0 °C to +60 °C for reliable performance in control rooms and local panels. Storage temperature tolerates extremes from -40 °C to +85 °C without compromising component integrity.
Environmental Endurance and System Reliability
Harsh industrial conditions demand equipment that resists vibration, humidity, and temperature variations effectively. The ABB IMMFP12 features conformal-coated circuit boards to protect against moisture and airborne contaminants. Relative humidity tolerance covers 5% to 95% without condensation forming on any internal surfaces. The onboard lithium battery maintains SRAM data integrity for a minimum of five years of continuous operation. An integrated watchdog timer monitors processor activity and triggers automatic resets if faults occur. The module also includes diagnostic LEDs for immediate status indication of power, communication, and I/O health. These reliability features minimize maintenance interventions and maximize system uptime consistently.
Details
| Weight | 2.9 kg |
|---|---|
| Dimensions | 62 × 368 × 320 mm |
