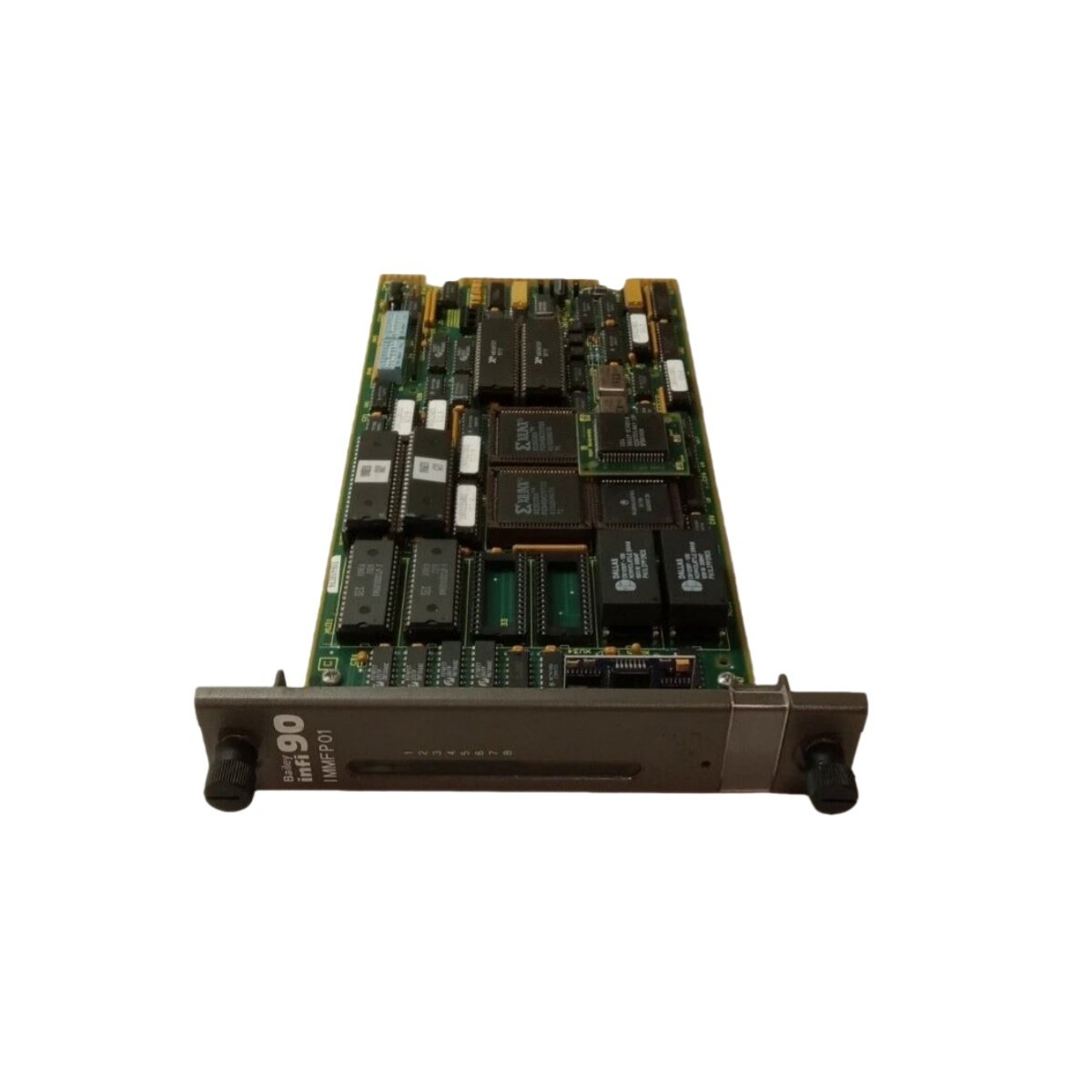

Industrial control systems demand precise, reliable processing cores for uninterrupted operation. The ABB IMMFP01 multi-function processor module delivers high-speed data handling for critical automation tasks. This versatile unit seamlessly integrates into ABB’s Advant OCS or MOD 300 networks. It provides a robust processing solution for complex logic, sequencing, and regulatory control applications. Engineers will appreciate its straightforward installation and proven compatibility with existing system architectures.
Key Technical Specifications
The IMMFP01 module combines substantial processing power with a compact, rugged form factor. Its design focuses on efficient operation within harsh industrial environments.
| Parameter | Specification |
|---|---|
| Processor Type | 32-bit MC68020 microprocessor |
| Clock Speed | 32 MHz |
| Memory Capacity | 4 MB DRAM for user configuration and application execution |
| Backup Memory | 512 KB SRAM with battery backup for data retention |
| Communication Ports | One RS-232-C port for local configuration and diagnostics |
| Network Interface | Built-in Module Bus interface for controller communication |
| Digital I/O | 16 digital inputs and 16 digital outputs via built-in circuitry |
| Dimensions (H x W x D) | 45 mm x 335 mm x 235 mm (standard 7-slot height) |
| Weight | Approximately 2.1 kg |
| Power Consumption | 30 W (typical) from the +5 V DC chassis supply |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -25 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Battery Life | Minimum 3 years for SRAM backup (replaceable lithium battery) |
Advanced Processing and Memory Architecture

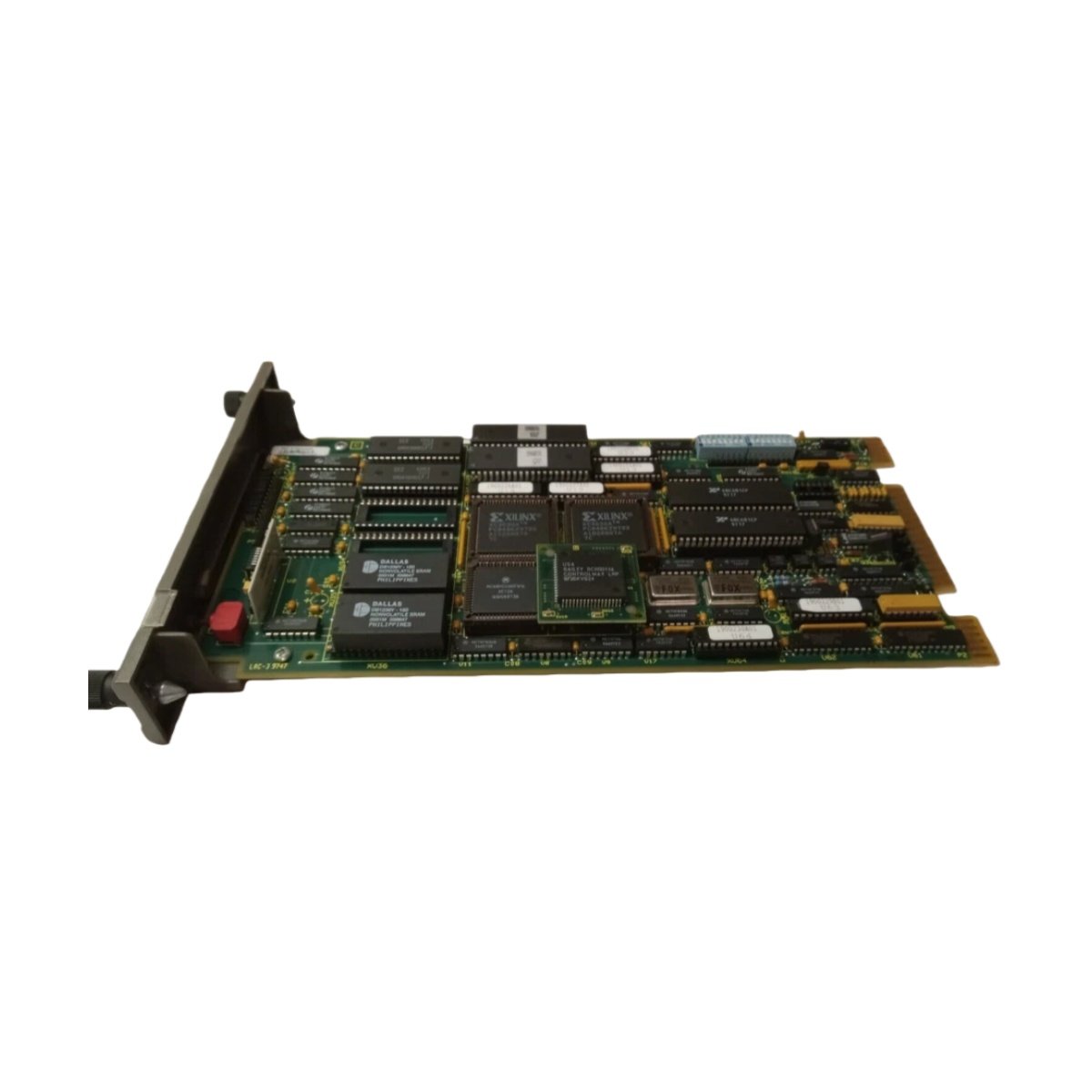

At its core, the ABB IMMFP01 uses a high-performance MC68020 processor to manage complex control algorithms efficiently. This module includes 4 MB of dynamic RAM for executing user programs and storing process data. Furthermore, it features 512 KB of static RAM with a dedicated battery backup system. This battery-backed SRAM securely retains critical configuration and fault-recording information during unexpected power outages. The 32 MHz clock speed ensures rapid execution of PID loops and sequential logic, minimizing scan times. Operators can reliably depend on the module for time-sensitive applications like turbine control or fast material handling.
Comprehensive Connectivity and I/O Capabilities
For seamless system integration, the IMMFP01 offers multiple communication and I/O interfaces. A built-in RS-232-C port enables direct connection to a configuration terminal for easy commissioning and diagnostics. The module also includes a dedicated Module Bus interface, which handles high-speed data exchange with other controllers in the distributed network. Additionally, the integrated digital I/O block provides 16 inputs and 16 outputs directly on the board. These onboard I/O points offer convenient interfacing for local status indicators or simple actuator commands. This design reduces the need for external I/O modules in smaller configurations, saving both space and cost.
Mechanical Design and Power Specifications
The ABB IMMFP01 measures 45 millimeters in height, 335 millimeters in width, and 235 millimeters in depth. This standard 7-slot height module fits securely into the ABB chassis system. Weighing approximately 2.1 kilograms, its sturdy construction reliably withstands the vibrations common in industrial settings. The module typically draws 30 watts of power from the +5 V DC backplane supply. This efficient power consumption helps maintain low thermal output within the cabinet. Furthermore, the unit operates reliably across a broad temperature range from 0 to 55 degrees Celsius. It also tolerates storage conditions from -25 to 70 degrees Celsius without performance degradation.
Environmental Resilience and Data Integrity
Industrial environments often expose equipment to significant temperature and humidity fluctuations. The IMMFP01 demonstrates robust performance under these challenging conditions. It maintains full functionality within a 5% to 95% relative humidity range, provided there is no condensation. The onboard battery, with a minimum service life of three years, preserves SRAM data integrity. This feature proves vital for maintaining system consistency and protecting against data loss. Regular replacement of the lithium battery ensures continued reliability and prevents potential downtime. Ultimately, this module offers a durable and dependable solution for managing critical processes.
Details
| Weight | 2.1 kg |
|---|---|
| Dimensions | 45 × 335 × 235 mm |
