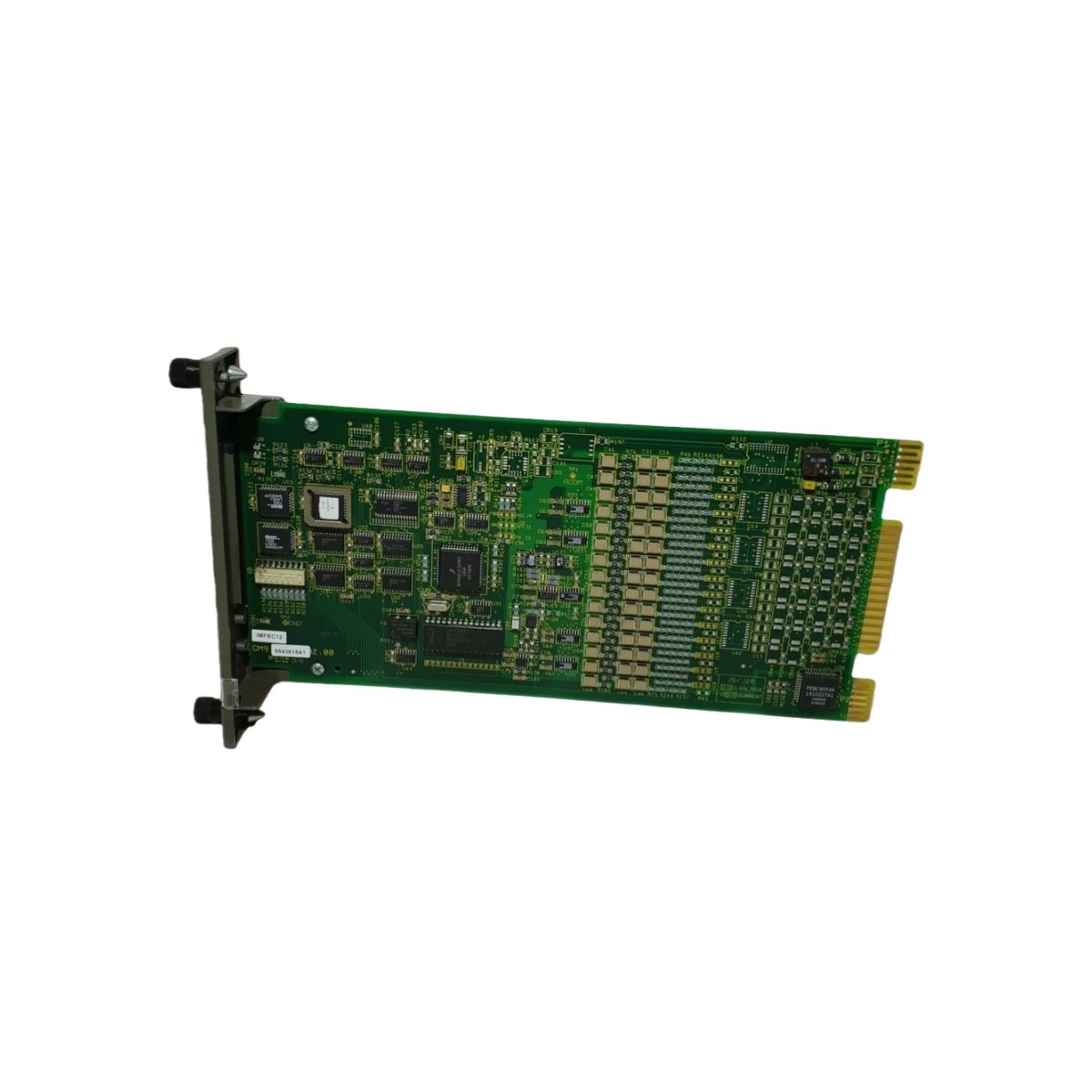

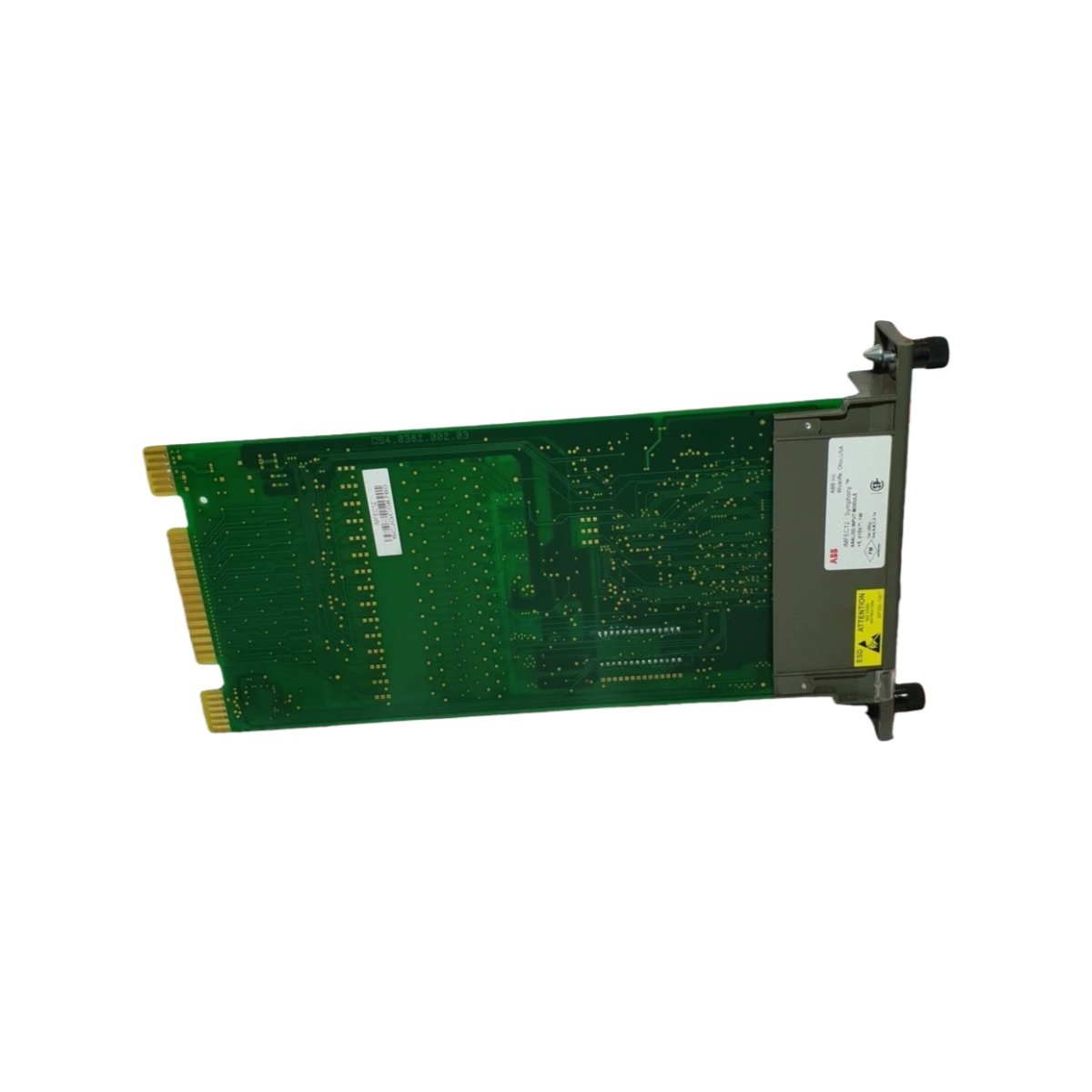

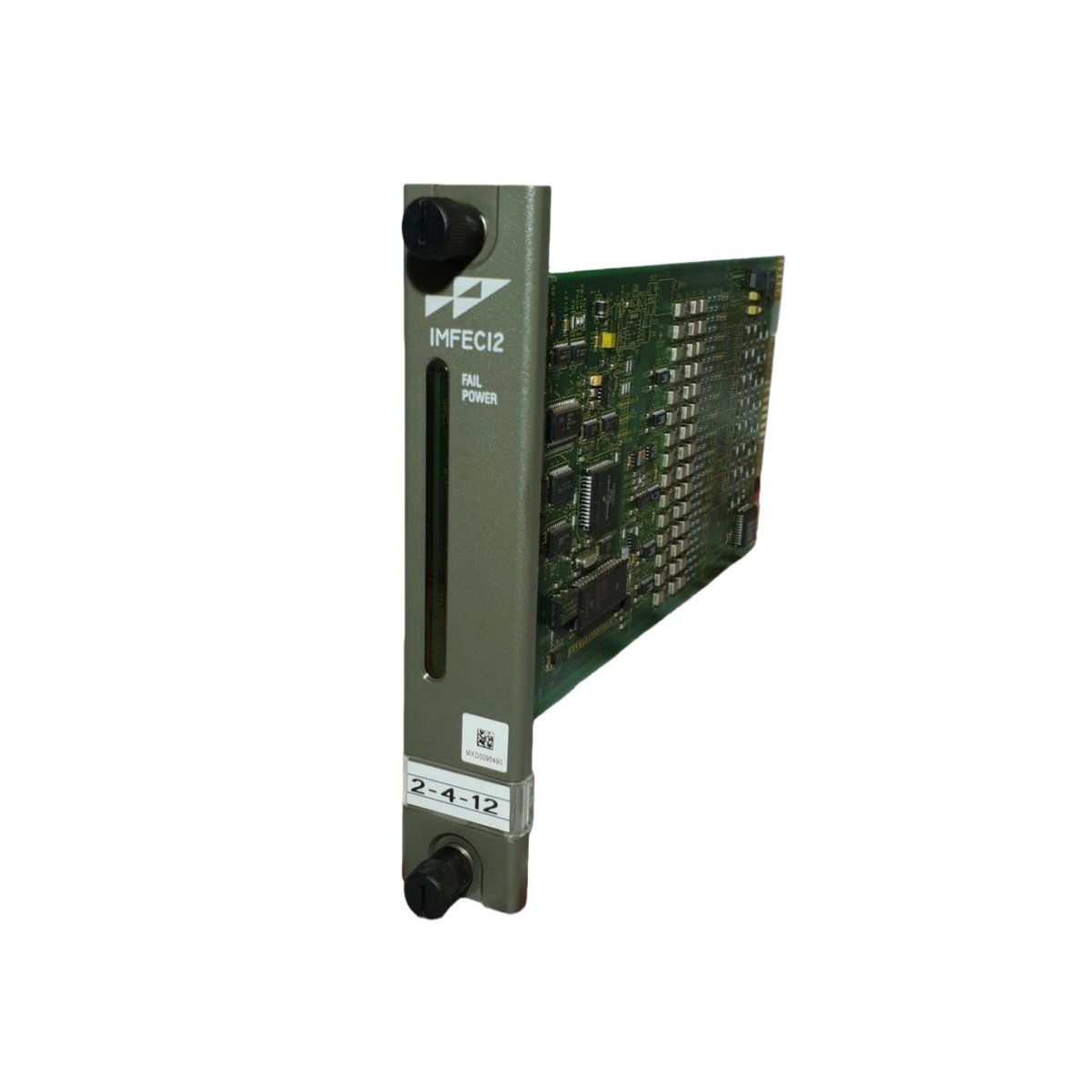

This advanced analog input module supports intelligent field devices with HART communication capability. The ABB IMFEC12 provides eight isolated channels that simultaneously read 4-20 mA process variables and transmit HART digital data. Its dual functionality reduces wiring complexity while enabling predictive maintenance through instrument diagnostics.
Key Technical Specifications
| Parameter | Details |
|---|---|
| Model | ABB IMFEC12 |
| Product Type | Analog Input Module with HART |
| Dimensions (W x H x D) | 45 mm x 120 mm x 130 mm |
| Weight | 0.40 kg |
| Number of Inputs | 8 channels (individually isolated) |
| Input Signal Type | 4-20 mA with HART digital overlay |
| Input Impedance | 250 Ω per channel |
| Resolution | 15 bits (including sign bit) |
| Accuracy | ±0.1 % of span at 25 °C |
| HART Communication | Bidirectional digital overlay on analog signal |
| Isolation Voltage | 1,500 V AC (channel-to-bus and channel-to-channel) |
| Scan Rate | 50 ms per channel (configurable) |
| Bus Interface | S800 I/O backplane connector |
| Power Consumption | 85 mA at 24 V DC (from backplane) |
| Operating Temperature | 0 °C to +55 °C |
| Protection Class | IP20 |
| Field Wiring | Removable screw terminal block (28–12 AWG) |
Dual-Function Signal Processing
The ABB IMFEC12 simultaneously captures 4-20 mA process values and HART digital data from smart transmitters. Its 15-bit resolution delivers high-accuracy measurements for critical process variables like pressure, temperature, and flow. A configurable 50 ms per channel scan rate balances update speed against system processing load. Furthermore, the module supports HART command sets for device configuration and diagnostics.
Input Architecture and Channel Isolation
Each of the eight channels features individual galvanic isolation, preventing ground loop errors and cross-channel interference. A 250 Ω input impedance provides the optimal load for standard loop-powered transmitters while maintaining HART signal integrity. The module delivers ±0.1 % accuracy at 25 °C, ensuring reliable process measurement for control and monitoring. Additionally, 1,500 V AC isolation protects the backplane from surges and transient voltages.
Mechanical Design and Installation
This analog module occupies one slot in the S800 I/O rack and shares the standard 45 mm width of the platform. Its 0.40 kg weight reduces mechanical stress on backplane connectors and simplifies handling during installation. A removable screw terminal block accepts 28 to 12 AWG field wiring, enabling quick cable changes without module removal. LED indicators display channel status, HART communication activity, and overall module health.
HART Communication and Device Integration
The ABB IMFEC12 supports bidirectional HART communication for accessing device variables and diagnostic information. Users can retrieve transmitter calibration data, sensor temperature, and loop current through the digital overlay. The module also forwards HART commands from engineering tools for remote configuration of field devices. Consequently, maintenance teams can perform instrument checks without physical access to the field location.
Power Efficiency and Environmental Suitability
This module consumes 85 mA from the 24 V DC backplane supply, reflecting its dual processing capabilities. Its 0 °C to 55 °C operating temperature range accommodates standard industrial environments without derating. An IP20 protection rating requires enclosure mounting but permits convenient front-panel access for wiring inspection.
System Integration and Application Areas
The ABB IMFEC12 connects directly to AC 800M controllers through the S800 backplane for deterministic data exchange. It integrates seamlessly with 800xA automation platform for unified management of analog and HART data. Consequently, this module serves oil and gas facilities, chemical plants, power generation, and pharmaceutical manufacturing applications effectively.
Details
| Weight | 0.4 kg |
|---|---|
| Dimensions | 45 × 130 × 120 mm |
