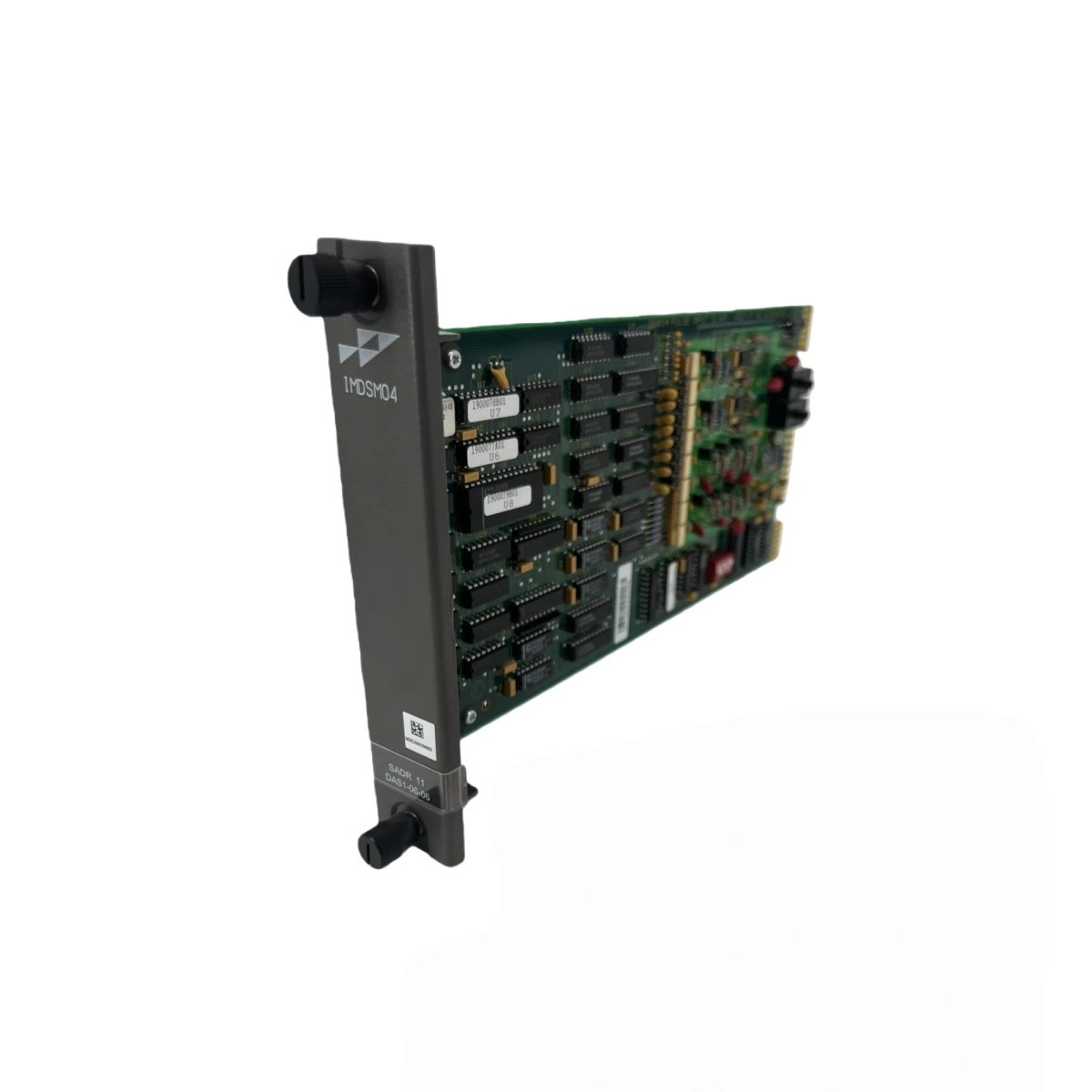

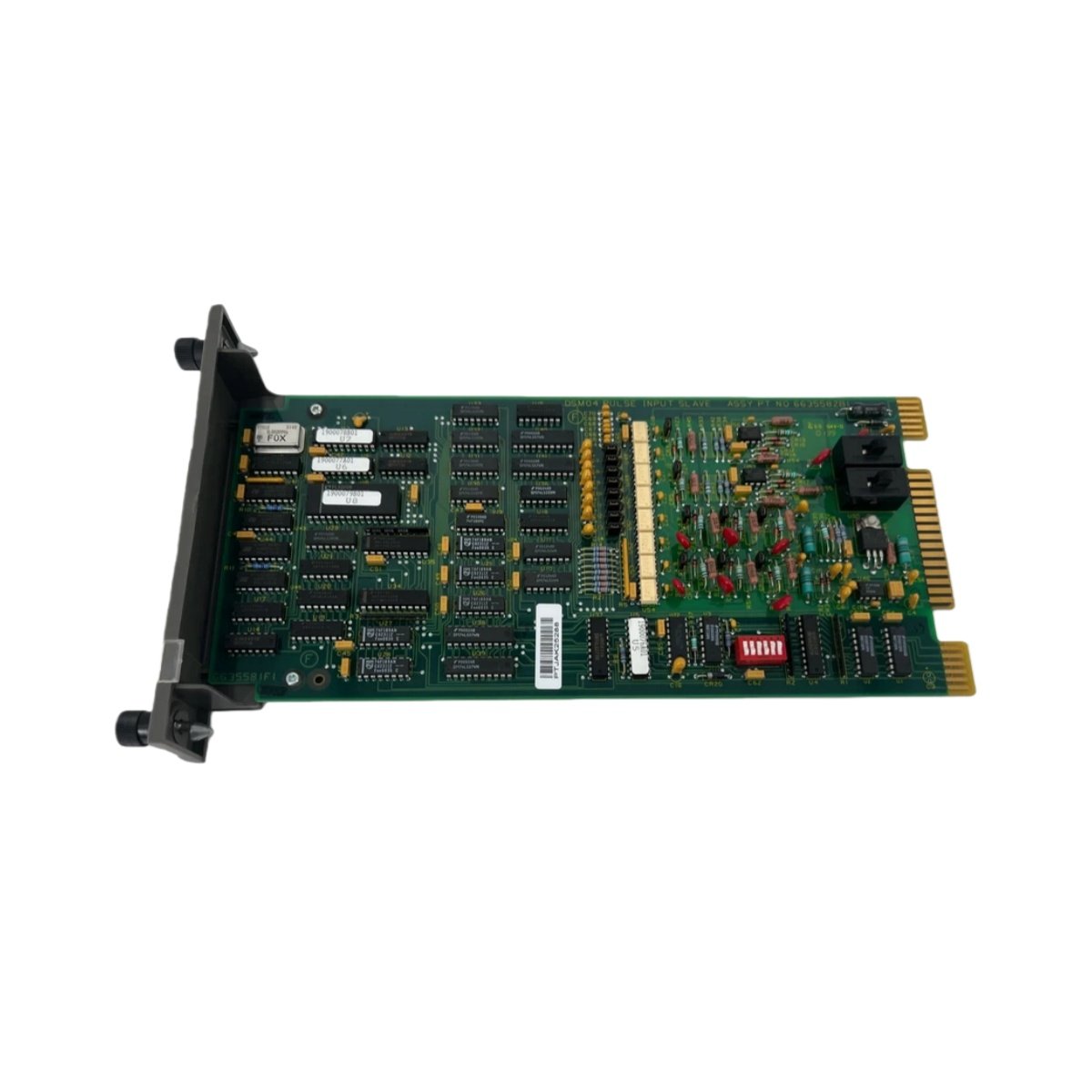

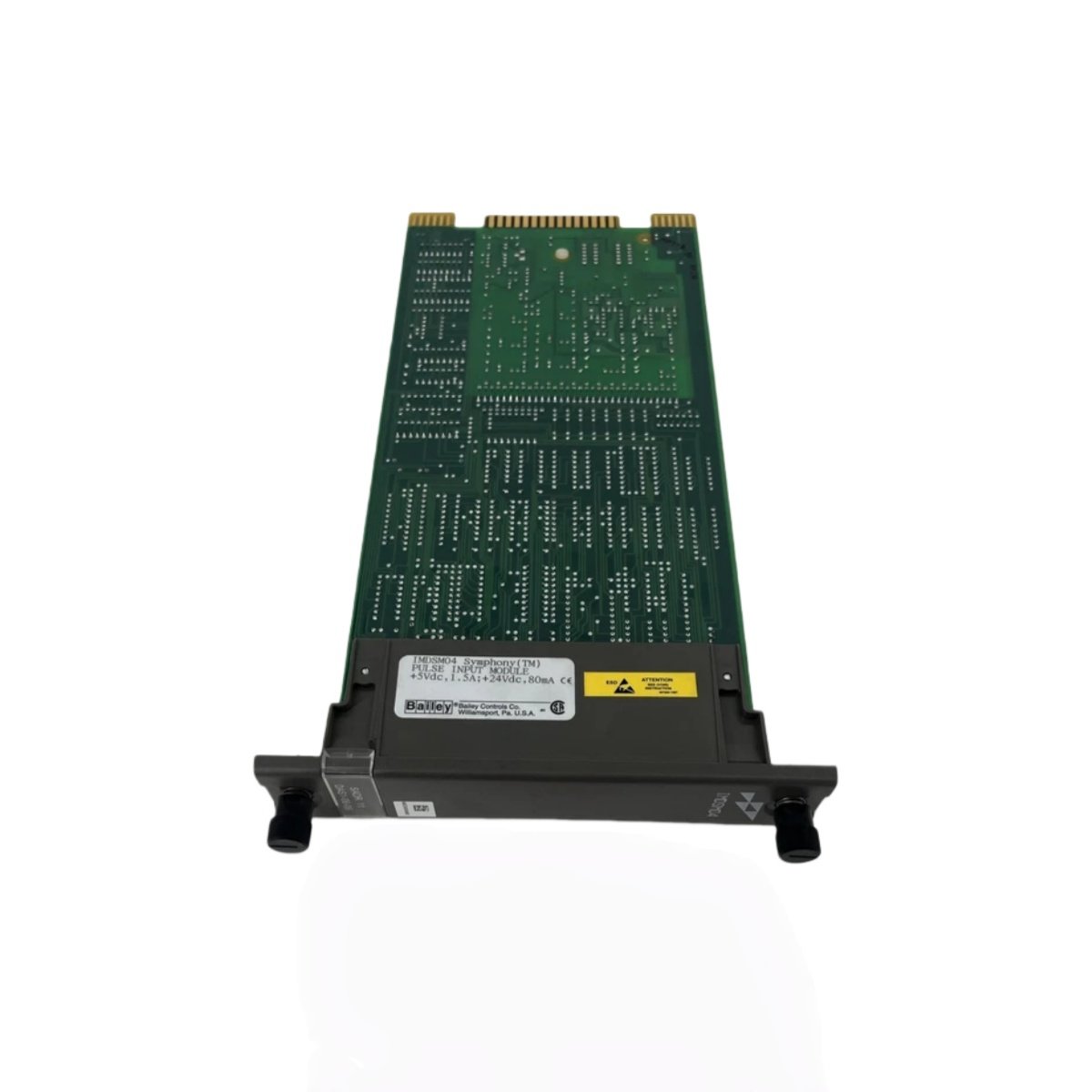

This specialized pulse input module captures high-speed digital signals for ABB distributed control systems. The ABB IMDSM04 provides four channels that accept frequency and pulse train inputs from encoders, flowmeters, and tachometers. Its slave architecture synchronizes counter readings with AC 800M controller scan cycles for accurate totalization.
Key Technical Specifications
| Parameter | Details |
|---|---|
| Model | ABB IMDSM04 |
| Product Type | Pulse Input Slave Module / High-Speed Counter |
| Dimensions (W x H x D) | 45 mm x 120 mm x 130 mm |
| Weight | 0.36 kg |
| Number of Inputs | 4 channels (isolated) |
| Input Signal Types | 24 V DC pulses, frequency, quadrature encoder signals |
| Maximum Frequency | 50 kHz per channel |
| Input Voltage Rating | 24 V DC ± 20 % |
| Input Current per Channel | 5 mA typical at 24 V DC |
| Counter Resolution | 32 bits (unsigned) |
| Isolation Voltage | 1,500 V AC (channel-to-bus) |
| Bus Interface | S800 I/O backplane connector |
| Power Consumption | 50 mA at 24 V DC (from backplane) |
| Operating Temperature | 0 °C to +55 °C |
| Protection Class | IP20 |
| Field Wiring | Removable screw terminal block (28–12 AWG) |
Input Architecture and Pulse Processing
The ABB IMDSM04 accepts four independent pulse inputs with a 50 kHz maximum frequency for precise speed and flow measurements. Each channel features individual galvanic isolation, preventing ground loop disturbances and cross-channel interference. A 32-bit counter resolution allows accurate totalization over extended accumulation periods. Moreover, the slave design synchronizes counter values with the controller’s cyclic data exchange for consistent readings.
Quadrature Encoder and Frequency Modes
This versatile module supports multiple input modes including frequency counting, pulse totalization, and quadrature encoder decoding. The quadrature mode handles A/B phase signals for position and direction sensing in motion control applications. Frequency mode captures speed signals from tachometers and magnetic pickups for rotational monitoring. Additionally, the ABB IMDSM04 offers programmable scaling to convert raw pulse counts into engineering units for process visibility.
Mechanical Construction and Installation
The ABB IMDSM04 occupies a single slot in the S800 I/O rack with its 45 mm width and 130 mm depth dimensions. Its 0.36 kg weight allows straightforward insertion during system assembly and field replacement. A removable screw terminal block accepts 28 to 12 AWG conductors, simplifying field wiring and future modifications. Front-mounted LED indicators display signal presence and module operational status for each input channel.
Isolation Performance and Noise Rejection
This pulse input module delivers 1,500 V AC isolation between input channels and the backplane bus. Galvanic isolation protects counter readings from ground potential variations in industrial environments. The module also incorporates signal conditioning that shapes noisy pulse trains into clean logic-level transitions. Built-in filtering eliminates false counting from contact bounce and electrical noise in harsh factory floors.
System Compatibility and Application Domains
The ABB IMDSM04 connects directly to AC 800M controllers through the S800 backplane for deterministic data exchange. It integrates seamlessly with 800xA automation platform and Compact Control Builder engineering tools. Consequently, this pulse input module serves flow totalization, conveyor speed monitoring, position feedback, and production counting applications effectively.
Details
| Weight | 0.36 kg |
|---|---|
| Dimensions | 45 × 130 × 120 mm |
