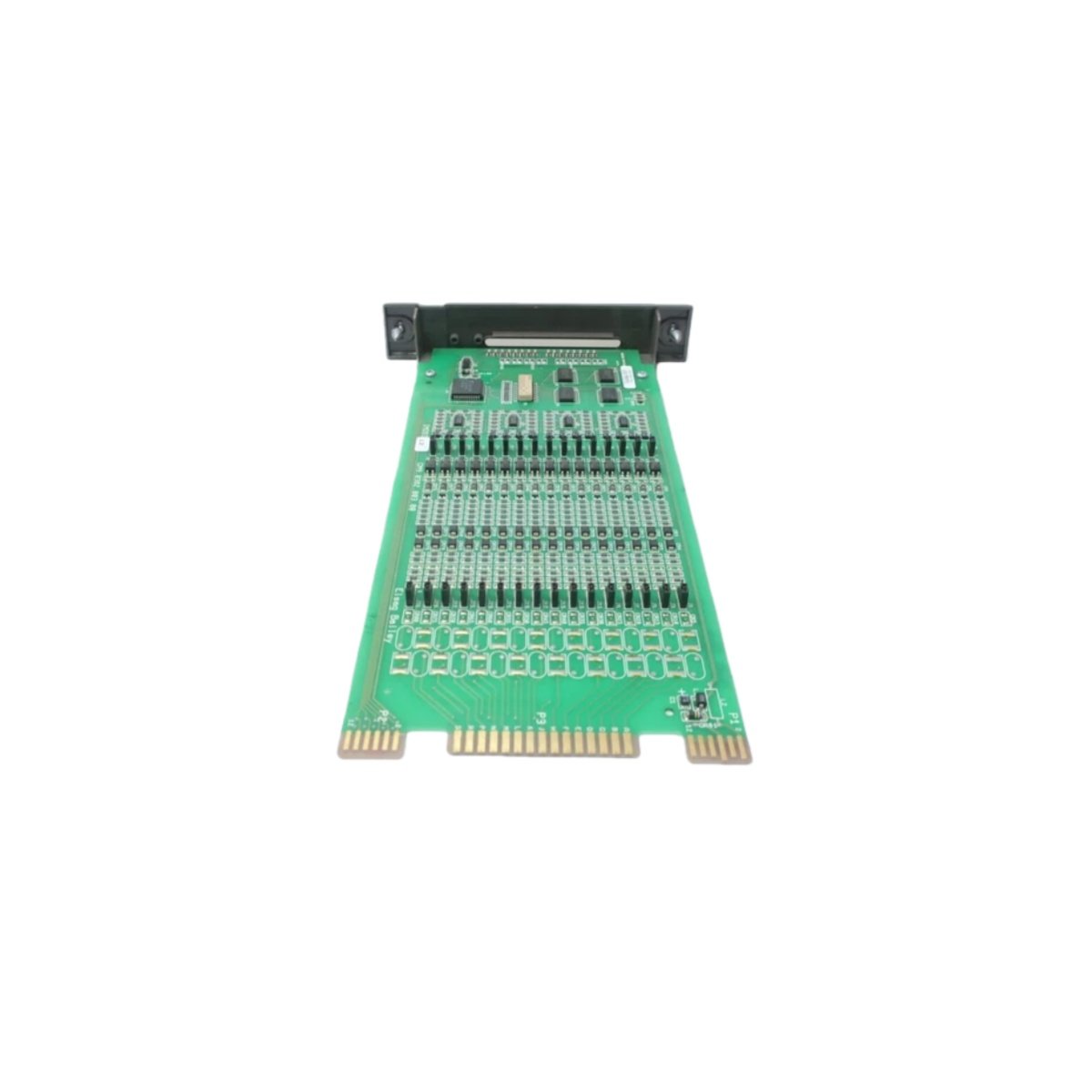

This high-density digital input module captures field contact and sensor signals for ABB distributed control systems. The ABB IMDSI12 provides sixteen isolated channels that accept 24 V DC signals from pushbuttons, limit switches, and proximity sensors. Its robust isolation design ensures reliable data acquisition in electrically demanding industrial environments.
Key Technical Specifications
| Parameter | Details |
|---|---|
| Model | ABB IMDSI12 |
| Product Type | Digital Input Module |
| Dimensions (W x H x D) | 45 mm x 120 mm x 130 mm |
| Weight | 0.37 kg |
| Number of Inputs | 16 channels (individually isolated) |
| Input Voltage Rating | 24 V DC ± 20 % |
| Input Current per Channel | 5 mA typical at 24 V DC |
| On-State Threshold | ≥ 15 V DC |
| Off-State Threshold | ≤ 5 V DC |
| Input Delay (On/Off) | 1 ms typical (software configurable) |
| Isolation Voltage | 1,500 V AC (channel-to-bus and channel-to-channel) |
| Bus Interface | S800 I/O backplane connector |
| Power Consumption | 40 mA at 24 V DC (from backplane) |
| Operating Temperature | 0 °C to +55 °C |
| Protection Class | IP20 |
| Field Wiring | Removable screw terminal block (28–12 AWG) |
Input Architecture and Signal Detection
The ABB IMDSI12 accepts 24 V DC signals from a wide range of field devices with a 5 mA typical input current. Each of its sixteen channels features individual galvanic isolation, eliminating cross-channel interference and ground loop errors. A 1 ms typical input delay ensures rapid detection of fast events such as counter pulses and position feedback. Moreover, software-configurable input filters allow operators to adjust noise immunity for specific application requirements.
Mechanical Design and Installation Convenience
This digital input module occupies a single slot in the S800 I/O rack and measures 45 mm wide, 120 mm high, and 130 mm deep. Its 0.37 kg weight reduces mechanical strain on backplane connectors and simplifies module handling. A removable screw terminal block accepts 28 to 12 AWG conductors, streamlining field cable terminations and maintenance replacements. Front-mounted LEDs provide immediate visual status for each input channel and overall module health.
Isolation Performance and Noise Rejection
The ABB IMDSI12 delivers 1,500 V AC isolation between input channels and between channels and the system bus. This comprehensive isolation protects the backplane from voltage transients generated by heavy inductive loads in the field. The module’s high noise immunity ensures reliable signal acquisition in environments with variable frequency drives and welding equipment. Integrated input filtering attenuates high-frequency interference that could otherwise cause false triggering.
Power Efficiency and Environmental Tolerance
This module draws a modest 40 mA from the 24 V DC backplane supply, minimizing power consumption in multi-module configurations. Its 0 °C to 55 °C operating temperature range supports standard industrial installations without derating requirements. An IP20 protection rating demands enclosure mounting but permits convenient front-panel access for wiring inspection.
System Integration and Application Domains
The ABB IMDSI12 connects directly to AC 800M controllers through the S800 backplane for deterministic data exchange. It integrates seamlessly with 800xA and Compact Control Builder engineering environments for straightforward configuration. Consequently, this digital input module serves conveyor monitoring, material handling, packaging lines, and safety interlock systems effectively.
Details
| Weight | 0.37 kg |
|---|---|
| Dimensions | 45 × 130 × 120 mm |
