Product Overview

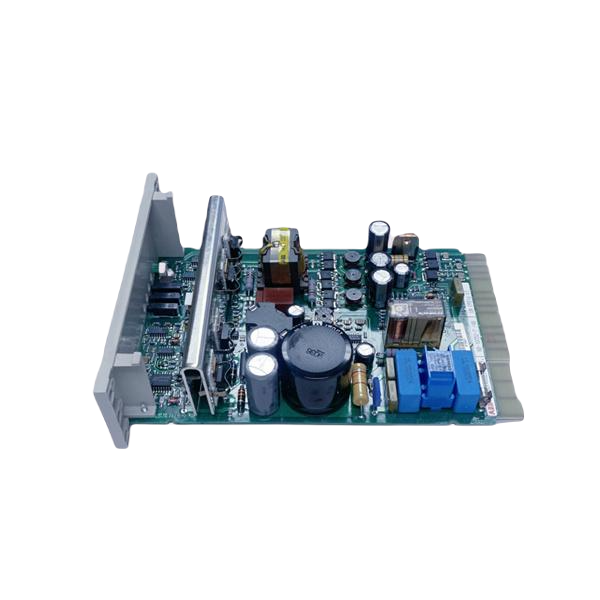

The ABB HIER460279R1/F, model UN 0901D V1, serves as a high-performance circuit board for seamless integration with ABB UNITROL systems. Manufactured in Austria, it supports key functions such as signal processing and power conditioning. By enabling reliable real-time data management, it ensures optimal system performance across diverse applications.
Key Features
- Full Compatibility: The HIER460279R1/F integrates perfectly with ABB UNITROL systems, ensuring precise control and seamless automation.
- Efficient Signal Processing: It handles both input and output signals, improving data management for more efficient operations.
- Power Conditioning: This circuit board supplies clean and stable power to connected components, ensuring smooth system functioning.
- Diagnostic Monitoring: Equipped with onboard LEDs or status indicators, the HIER460279R1/F provides clear feedback for quick diagnostics and troubleshooting.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | HIER460279R1/F |
| Product Code | UN 0901D V1 |
| Country of Origin | Austria |
| Voltage | 24V DC |
| Current Rating | 8A at 250V AC |
| Capacitance | 0.68 µF |
| Capacitance Tolerance | ±10% |
| Rated Frequency | 50/60 Hz |
| Dimensions | Height: 2.0 in (5.1 cm), Width: 6.0 in (15.2 cm), Depth: 7.8 in (19.7 cm) |
| Weight | 1 lbs 1.9 oz (0.5 kg) |
| Mounting | Suitable for panel or rack-mounted installation |
| Connectors | Standard industrial screw terminal blocks |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 (indoor use in industrial settings) |
| Vibration & Shock Resistance | Built to withstand industrial vibrations and shocks |
Applications
- Industrial Automation: The HIER460279R1/F integrates smoothly into ABB-controlled systems, driving efficient automation in diverse industrial sectors.
- Process Control: It is perfect for systems that need real-time monitoring and control, especially for sensors, actuators, and other field devices.
- Energy Systems: Used in ABB UNITROL for power regulation, this board helps optimize energy efficiency and system stability.
Installation and Maintenance
- Simple Installation: You can easily mount the HIER460279R1/F in control racks or cabinets, offering flexibility for various system configurations.
- Maintenance Friendly: Thanks to its diagnostic features, you can perform routine maintenance with minimal downtime.
- Quick Replacement: The circuit board can be replaced quickly, reducing installation time and allowing for smooth integration into ABB systems.
Approvals and Certifications
- CE Certified: Meets EU safety, health, and environmental protection standards.
- RoHS Compliant: The board is free from hazardous materials like lead, mercury, and other restricted substances.
Frequently Asked Questions (FAQ)
Q1: What is the required power supply for the ABB HIER460279R1/F?
A1: The HIER460279R1/F operates with a 24V DC power supply, designed specifically for ABB UNITROL systems.
Q2: Which industries benefit from this circuit board?
A2: It is used extensively in industrial automation, process control, and energy management, especially within the ABB UNITROL series.
Q3: What is the operating temperature range for this circuit board?
A3: The HIER460279R1/F can operate in temperatures ranging from -20°C to +70°C, making it suitable for a variety of industrial environments.
Q4: Is it easy to replace the HIER460279R1/F circuit board?
A4: Yes, the HIER460279R1/F is designed for easy replacement, enabling seamless integration into existing ABB automation systems with minimal downtime.
Q5: Is the HIER460279R1/F RoHS compliant?
A5: Yes, the HIER460279R1/F is RoHS compliant, meaning it is free from harmful substances like lead and mercury.
