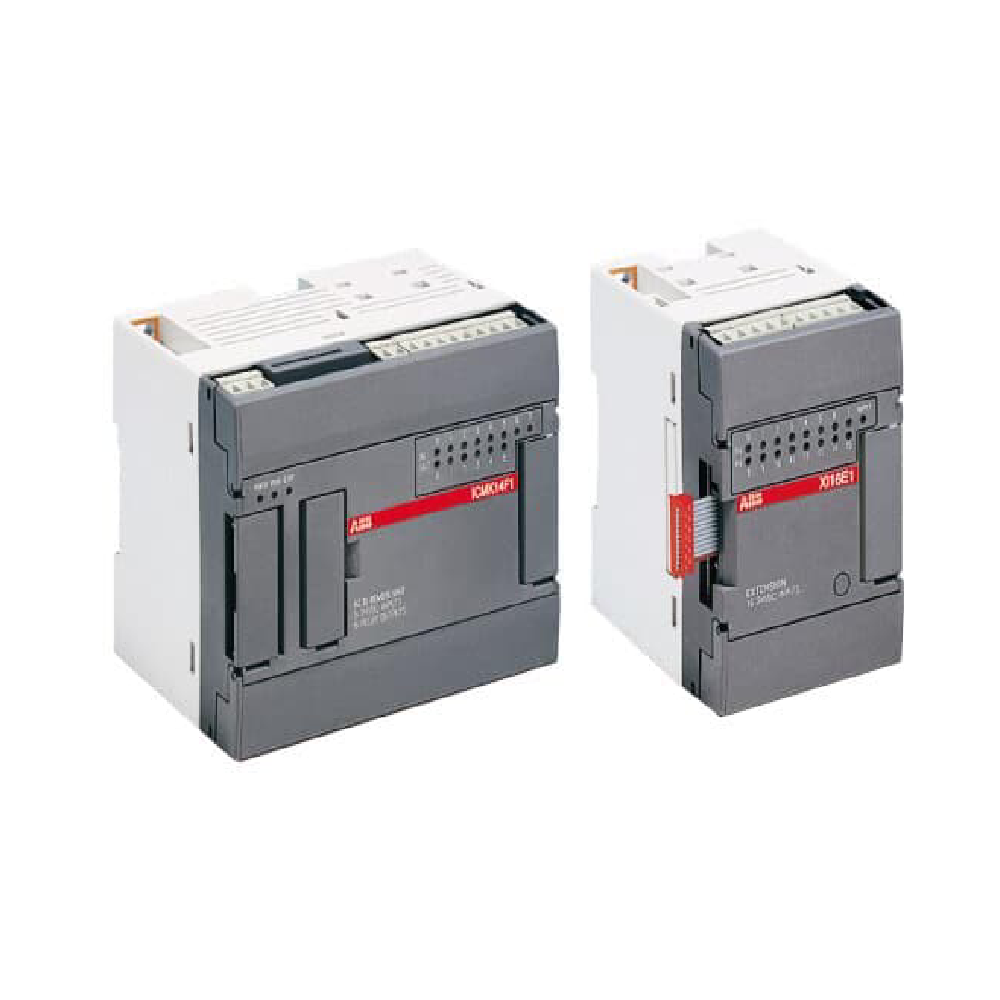

The ABB 07KT97-ARCNET-DP (GJR5253000R0262) is a programmable logic controller (PLC) from the AC31 series, designed for industrial automation and distributed control systems. It supports ARCNET and Profibus DP communication, making it ideal for complex industrial networks.
Key Features
- Product ID: GJR5253000R0262
- ABB Type Designation: 07KT97-ARCNET-DP
- Product Type: PLC-AC31-40/50
- Programming Software: AC1131
- Real-Time Clock: Yes
- Fieldbus Interfaces: ARCNET, Profibus DP (Master/Slave)
- CS31 Bus Support: Yes
Memory & Processing
| Feature | Specification |
|---|---|
| User Program Memory | 480 kB (Flash EPROM, Non-Volatile RAM, SMC) |
| User Data Memory | 256 kB (Flash EPROM) |
| Instruction Speed | 0.3 ms per 1000 instructions (65% Logic, 35% Word Processing) |
I/O Specifications
| Type | Channels / Specs |
|---|---|
| Analog Inputs | 8 (0-10V, ±10V, 0-20mA, 4-20mA, PT100) |
| Analog Outputs | 4 (±10V, 0-20mA) |
| Digital Inputs | 24 (DC 24V) |
| Digital Outputs | 16 (DC 24V, 0.5A) |
| Hardware Counters | 2 (Max Frequency: 50 kHz) |
| Expandable I/Os | Analog: 232 AI, 228 AO; Digital: 1024 |
Communication Interfaces
- Serial Port 1: RS232 (Programming, Modbus Master/Slave)
- Serial Port 2: RS232 (Modbus Master/Slave, ASCII)
Electrical & Mechanical Details
| Feature | Specification |
|---|---|
| Primary Voltage | 24V DC |
| Output Voltage | 24V DC |
| Output Current | 0.5A |
| Operating Temperature | 0 to +55°C |
| Storage Temperature | -25 to +75°C |
| Dimensions | 230 × 140 × 85 mm (W × H × D) |
| Net Weight | 1 kg |
Certifications & Compliance
- ABS: 1SAA960000-0101
- CSA: 1SAA960000-1102
- GL: 1SAA960001-0403
- RMRS: 1SAA960000-0701
- UL: 1SAA960000-1601
- CE Compliance: Yes
- RoHS Compliance: 1SAA960003-4401
Stock Availability
- Menden, Germany
- Singapore, Singapore
Applications
The ABB 07KT97-ARCNET-DP is suitable for:
- Distributed Automation: High-speed control of multiple devices
- Industrial Control: Seamless integration with industrial networks
- Process Management: Reliable monitoring and control of complex processes
- Large-Scale Automation: Expandable I/O for extensive industrial projects
Details
| Weight | 1 kg |
|---|
