Overview

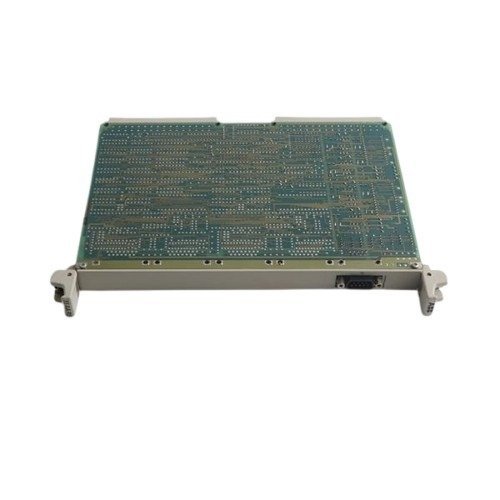

The ABB GJR5143000R0002 is the 35AA92C analog output module for ABB Procontic T300 systems. It delivers precise voltage and current outputs, supporting reliable control in distributed industrial environments. This module integrates seamlessly with MODBUS RTU protocols, enhancing system communication efficiency.
Key Features
- Analog Output Channels: 2 channels supporting voltage and current outputs.
- Current & Voltage Range: 0–20 mA current and 0–10 VDC voltage for flexible control.
- Communication: Supports MODBUS RTU for seamless system integration.
- Environmental Performance: Operates in extreme temperatures from -25°C to +60°C.
- Auxiliary Control: Includes 1 SPDT relay contact for additional functionality.
- Power Supply: Requires 24 VDC for module operation.
Technical Specifications
Analog Output
| Parameter | Specification |
|---|---|
| Model | 35AA92C |
| Part Number | GJR5143000R0002 |
| Channels | 2 Analog Outputs |
| Current Range | 0–20 mA |
| Voltage Range | 0–10 VDC |
| Relay Contacts | 1 SPDT |
Electrical & Communication
| Parameter | Specification |
|---|---|
| Communication Protocol | MODBUS RTU |
| Power Supply | 24 VDC |
Environmental
| Parameter | Specification |
|---|---|
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
Details
| Weight | 0.32 kg |
|---|
