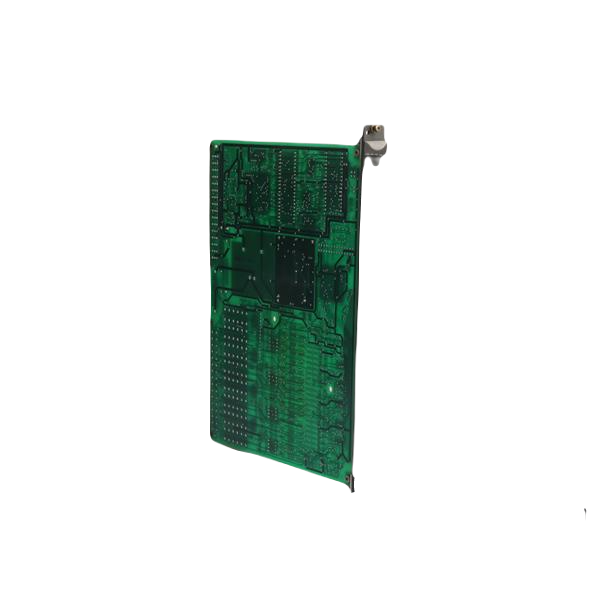

The ABB GJR2390200R1010 | 83SR04-E/R1010 PROCONTROL P module provides versatile control for industrial applications. It processes binary and analog signals, supports drive control, and enables precise signal conditioning. Consequently, it suits applications including unidirectional drives, actuators, solenoid valves, and sequential control systems. Moreover, its flexible operation supports multiple control modes with reliable performance.
Key Applications
- Drive Control: Manages unidirectional drives, actuators, and solenoid valves efficiently.
- Binary Control: Handles function group control, sequential logic, and 3-step operations.
- Analog Control: Operates control loops and 3-step controllers for actuators.
- Signal Conditioning: Provides accurate signal processing for critical instrumentation.
Operating Modes
- Binary Control Mode: Supports up to 4 binary function groups with variable cycle times.
- Analog Control Mode: Manages up to 4 analog control loops at fixed cycle times.
- Signal Conditioning Mode: Outputs disturbance bits while operating at fixed cycle times.
Features
- Automatic Address Setting: Assigns module address automatically upon insertion.
- Error Detection: Ensures reliable data transfer using parity checks.
- EEPROM Memory: Stores user programs for easy configuration changes.
- Voltage Supply: Short-circuit-proof design prevents supply line interference.
- Front Panel Indicators:
- ST LED: Signals module and communication disturbances.
- SG LED: Indicates module-specific disturbances.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Part Number | GJR2390200R1010 |
| Type Designation | 83SR04-E/R1010 |
| Module Voltage | 24 VDC |
| Bus Section Voltage | 5 VDC |
| Power Dissipation | 3.5 W |
| Module Current | 80 mA + output currents |
| Bus Section Current | 250 mA |
| Inputs | Direct connections for 4 function units; 5 mA at 48 V (Ex1, Ex2, Ex3, STAx) |
| Outputs | Contact voltages: 48 V / ±30 mA; Bx1/Bx2/BVx: ±80 mA |
| Relay Service Life | ≥ 20 million switching cycles |
| Coupling Relays | R513 |
| Power Drivers | LU370 or equivalent |
| Wiring Length | Up to 600 m for 0.5 mm² conductor |
| Dimensions | Standard module size |
| Weight | Not specified |
Installation and Operation
The module connects directly to the multi-purpose processing station, supporting automatic address configuration. Furthermore, its short-circuit-proof outputs and robust power drivers ensure safe operation. Engineers can configure each control mode flexibly while monitoring disturbances via front panel LEDs.
Packaging and Ordering
- Order Number: GJR2390200R1010
- Selling Unit: 1 EA
- Country of Origin: United States (US)
Details
| Weight | 0.32 kg |
|---|---|
| Dimensions | 46 × 500 × 663 mm |
