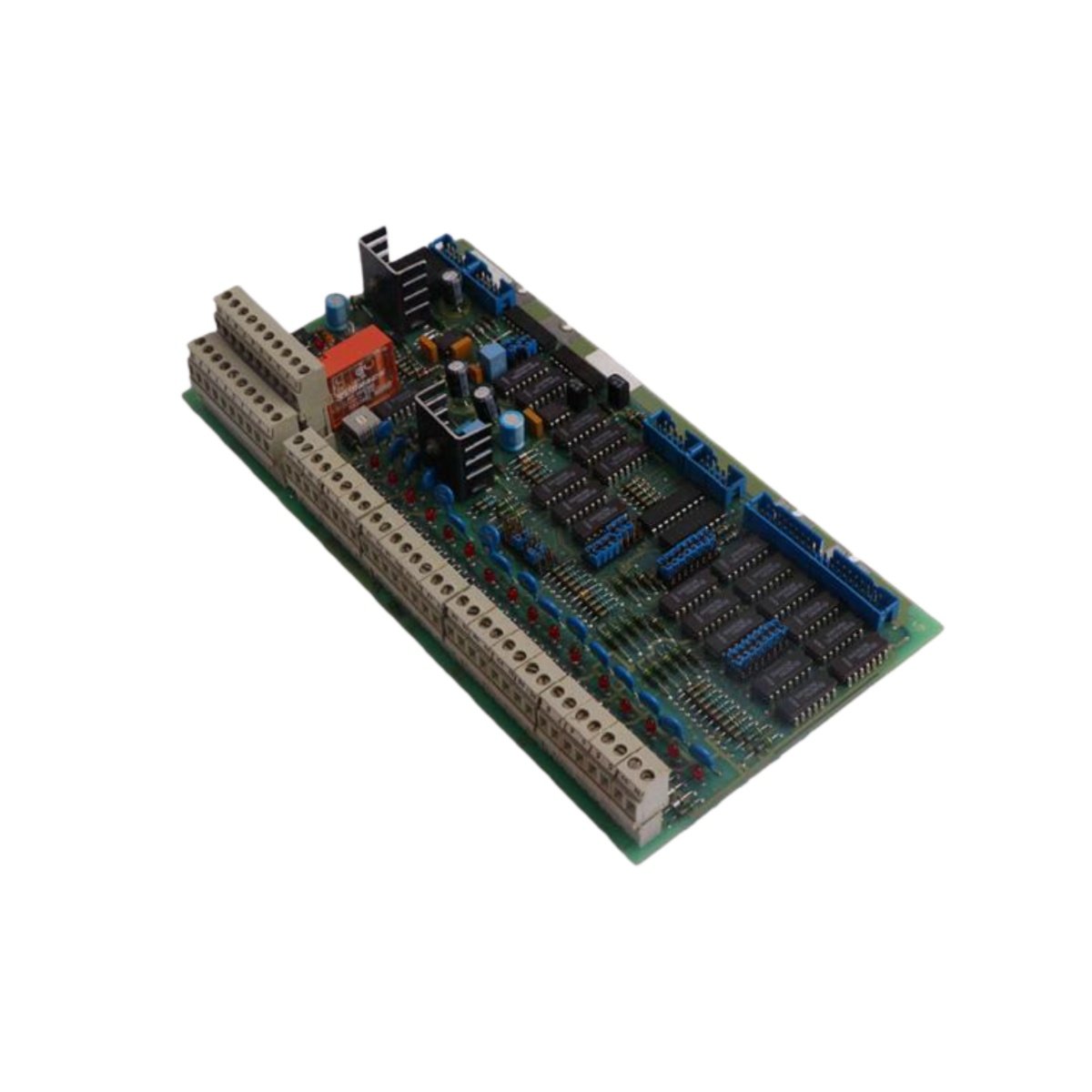

The ABB DSTX120 57160001-MA/1 serves as a centralized interface between field devices and control systems. This connection unit simplifies wiring for sensors, actuators, and programmable logic controllers. It replaces complex point-to-point cabling with an organized, modular structure.

Technical Specifications

Physical Dimensions and Mounting Features

This unit measures 120 millimeters in height with a 75-millimeter width profile. It weighs 0.33 kilograms, making it lightweight enough for DIN-rail mounting. The housing uses flame-retardant thermoplastic that resists impact and chemical exposure. Technicians can install this DSTX120 onto standard 35-millimeter DIN rails within seconds. Consequently, the unit fits neatly into existing control cabinets without modifications.

Interface Design and Connectivity

The 57160001-MA/1 provides 24 individual I/O channels through removable screw terminal blocks. Each terminal block accepts wire gauges ranging from 0.2 to 2.5 square millimeters. This wide range accommodates both field wiring and internal control connections. Moreover, the removable design allows technicians to pre-wire the unit offline. This approach reduces installation time significantly and minimizes system downtime.

Signal Routing and Channel Organization

This connection unit consolidates signal routing for multiple field devices into one location. It distributes both power and data signals across its 24 channels efficiently. Each channel features clearly marked terminal positions that prevent wiring mistakes. Additionally, the unit incorporates internal bus bars for streamlined power distribution. This design eliminates the need for external power distribution blocks.

Construction Quality and Environmental Resilience

ABB builds this connection unit to perform reliably in demanding industrial settings. The housing effectively resists dust, moisture, and common chemical agents. It operates without failure across a temperature range from -20°C to +60°C. Furthermore, this unit contains no internal batteries or energy storage components. This design eliminates maintenance tasks related to charge retention or replacement cycles.
