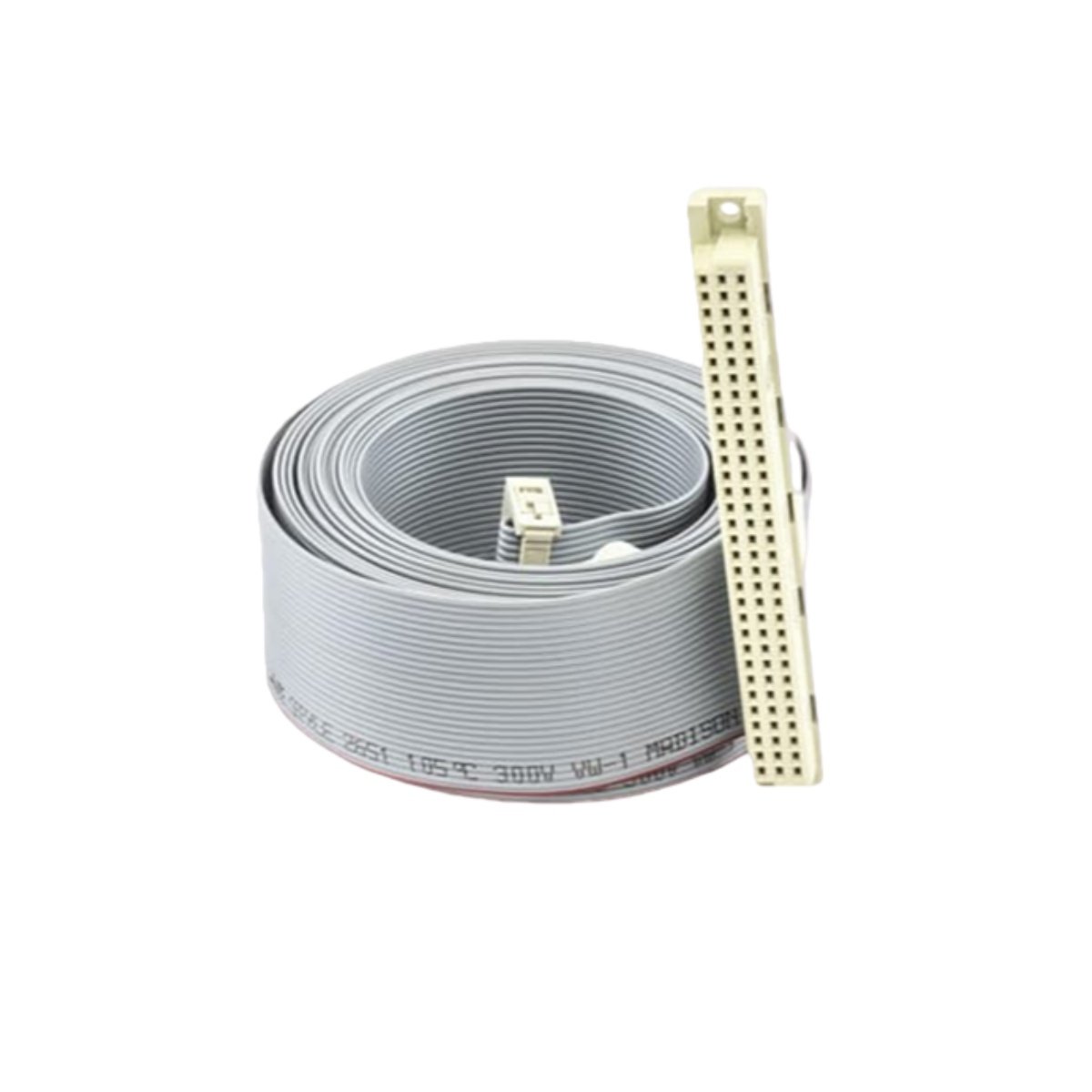

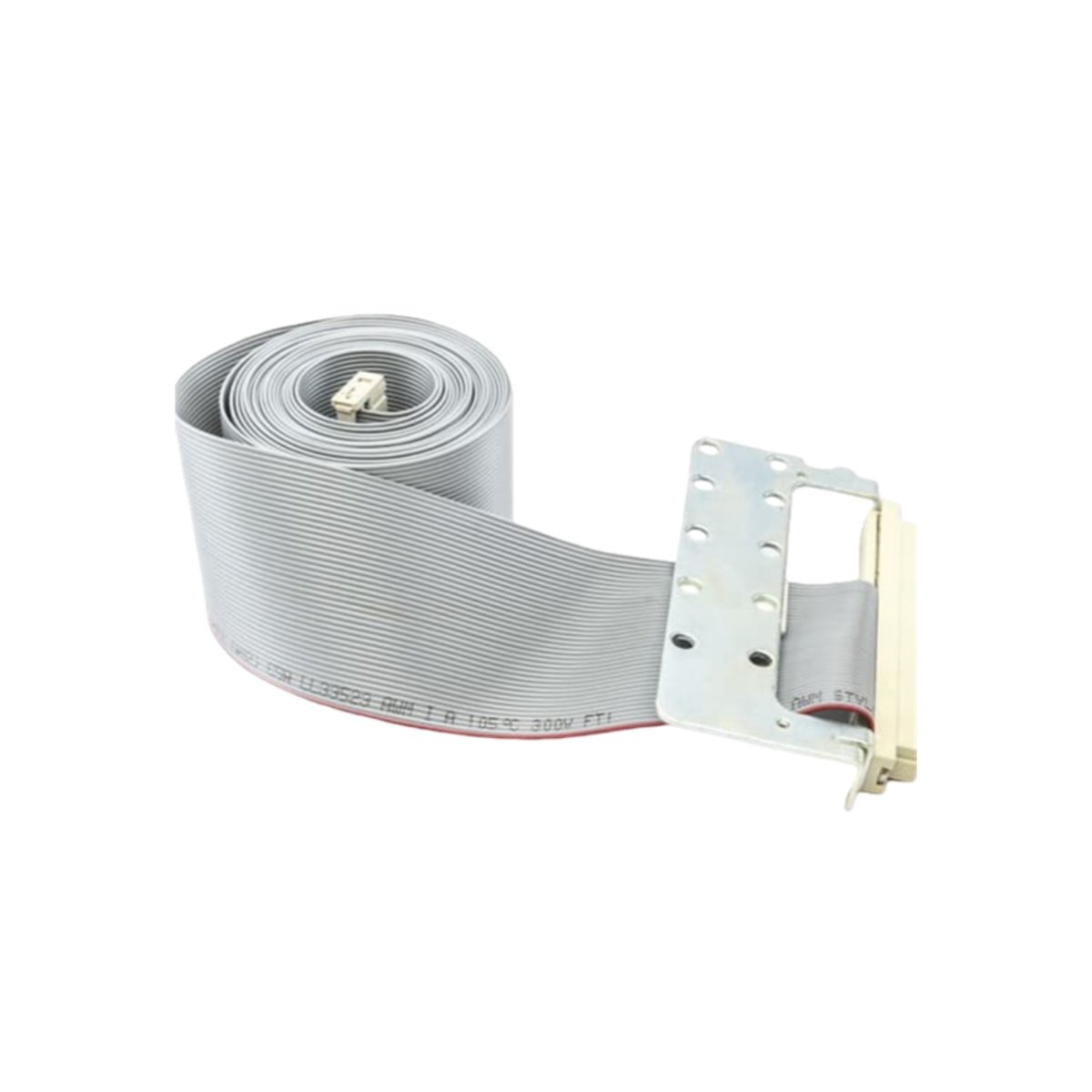

The DSTK153 26390603-G industrial ribbon cable delivers reliable signal transmission across ABB automation systems. ABB engineered this high-flex cable for applications requiring repeated flexing or door-mounted connections. It establishes secure data paths between termination units and controller I/O modules. You can deploy this assembly in both standard panel installations and moving cabinet sections.

Technical Specifications

The DSTK153 26390603-G combines flexible construction with consistent electrical characteristics. The following parameters define its technical capabilities.

Physical Design and Construction

The cable measures 1.5 meters in length with a flat ribbon configuration. It features 50 conductors using 28 AWG stranded wire for enhanced flexibility. The DSTK153 incorporates specialized high-flex insulation materials for repeated movement. This construction withstands thousands of flex cycles without signal degradation.

Connectivity and Integration

Both ends terminate with 50-pin IDC female connectors for universal compatibility. This cable connects DSTD series termination units to digital input boards seamlessly. The DSTK153 26390603-G maintains signal continuity across moving panel sections and hinged doors. You can route this assembly through cable carriers or along flexible tracks.

Signal Integrity and Mechanical Durability

The high-flex design preserves conductor integrity under continuous movement conditions. Stranded conductors resist breakage better than solid wire alternatives. Furthermore, the cable includes orientation markings for proper alignment during installation. This feature prevents connection errors when working in confined cabinet spaces.

Application Scenarios

Engineers select this ribbon cable for applications with moving control panel doors. It serves as the primary interconnect in systems requiring frequent maintenance access. The DSTK153 also provides reliable replacement cabling for existing ABB installations. For similar high-quality industrial components, you can explore options like the RMS TSG TZ C static trip unit from the broader automation ecosystem.
