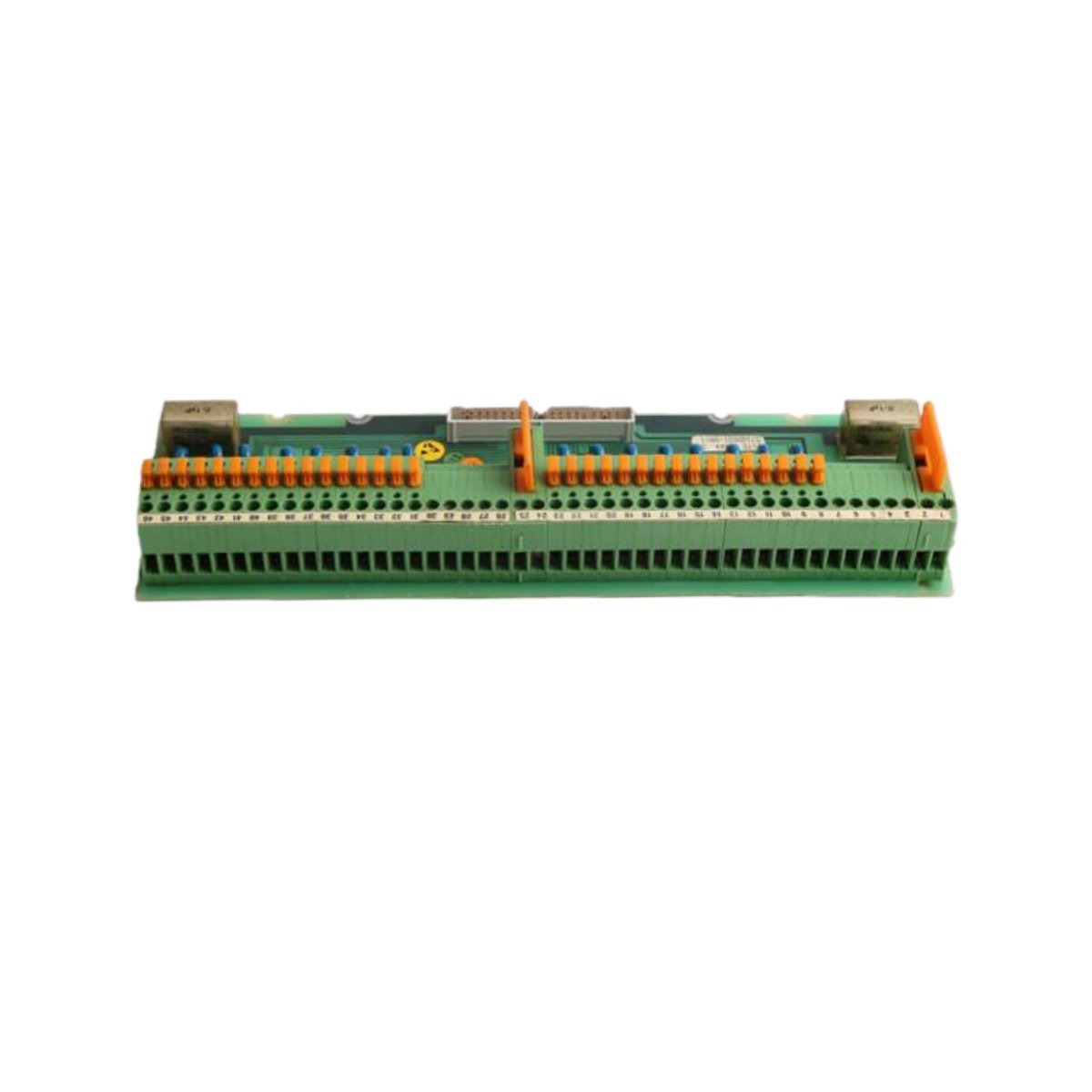

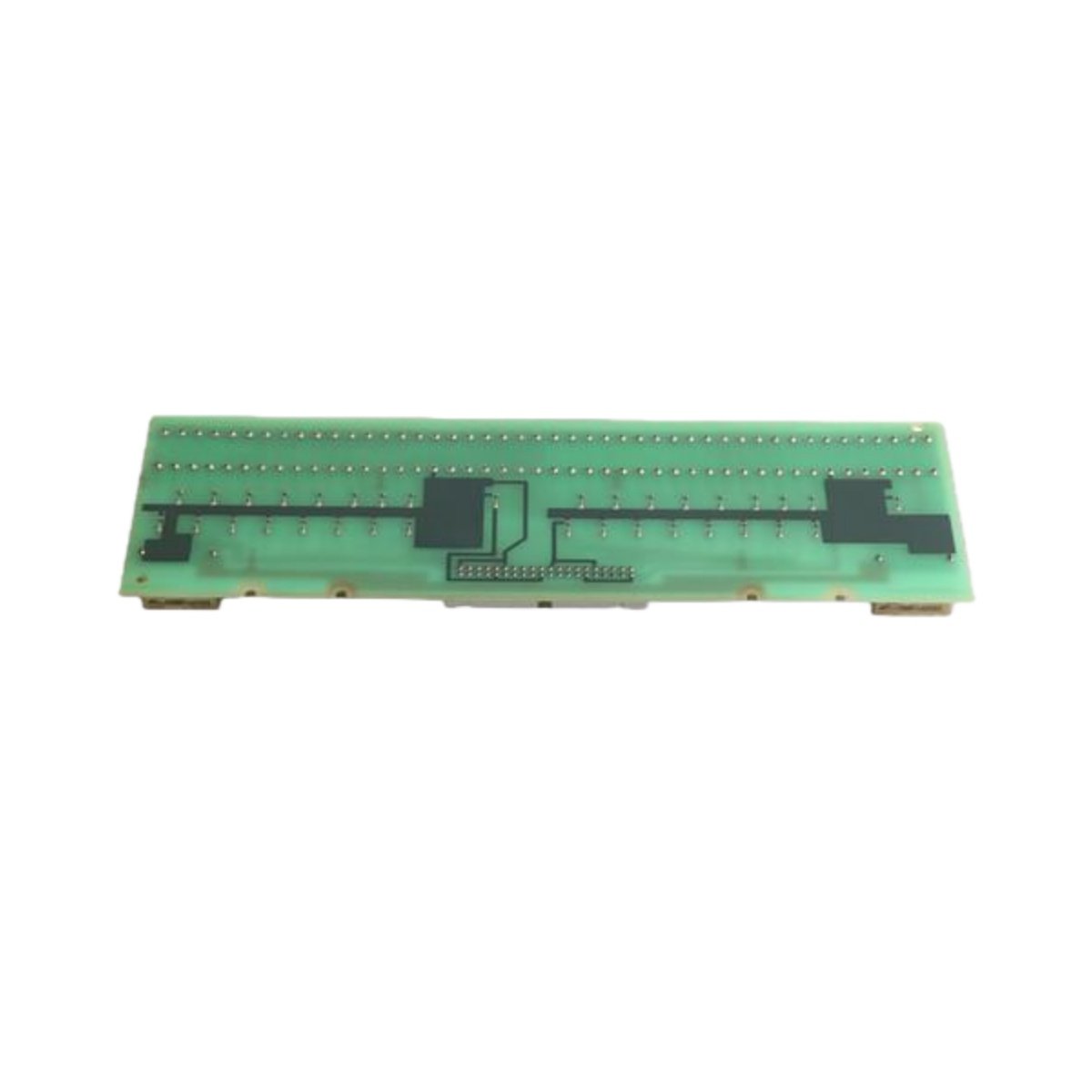

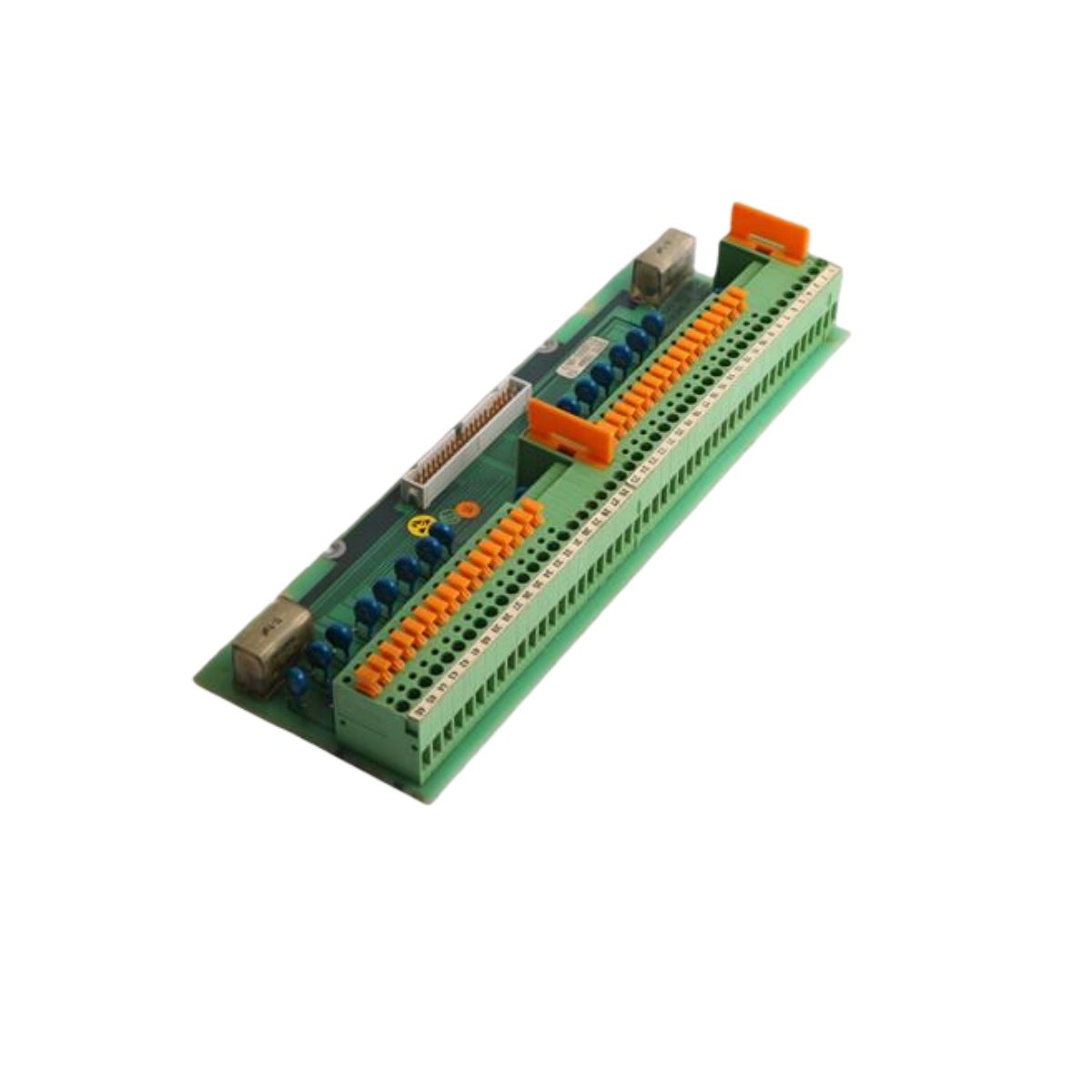

The DSTD150A connection unit serves as a dedicated termination interface for digital input boards. ABB engineered this module termination unit to handle up to 32 discrete signal channels. It provides reliable signal conditioning between field devices and control systems. You can deploy this unit in distributed I/O architectures or centralized panel configurations.

Technical Specifications

The DSTD150A combines high channel density with robust electrical characteristics. The following parameters define its technical capabilities.

Physical Design and Mounting

The unit measures 115 mm in height and 65 mm in depth. Its width extends to 70 mm to accommodate 32 termination points. The DSTD150A weighs approximately 0.33 kilograms for straightforward handling during installation. You will need the mounting screws kit 3BSE021202R1 for secure panel attachment.

Connectivity and Channel Architecture

This module termination unit provides 32 discrete input channels in a compact form factor. Each channel accepts signals up to a maximum of 60 V DC. The DSTD150A uses screw-type terminals for reliable field wiring connections. You can terminate all field signals at this single interface point.

Signal Conditioning and Integration

The unit interfaces directly with ABB digital input boards for seamless data transfer. It provides proper signal isolation between field devices and controller circuits. Furthermore, the design includes clear labeling for each channel position. This labeling simplifies installation verification and ongoing maintenance activities.

Application Scenarios

Engineers select this connection unit for digital input signal management in ABB systems. It excels in applications requiring high-density discrete signal concentration. The DSTD150A also serves as a replacement unit for existing termination assemblies. For similar high-quality industrial components, you can explore options like the RMS TSG TZ C static trip unit from the broader automation ecosystem.
