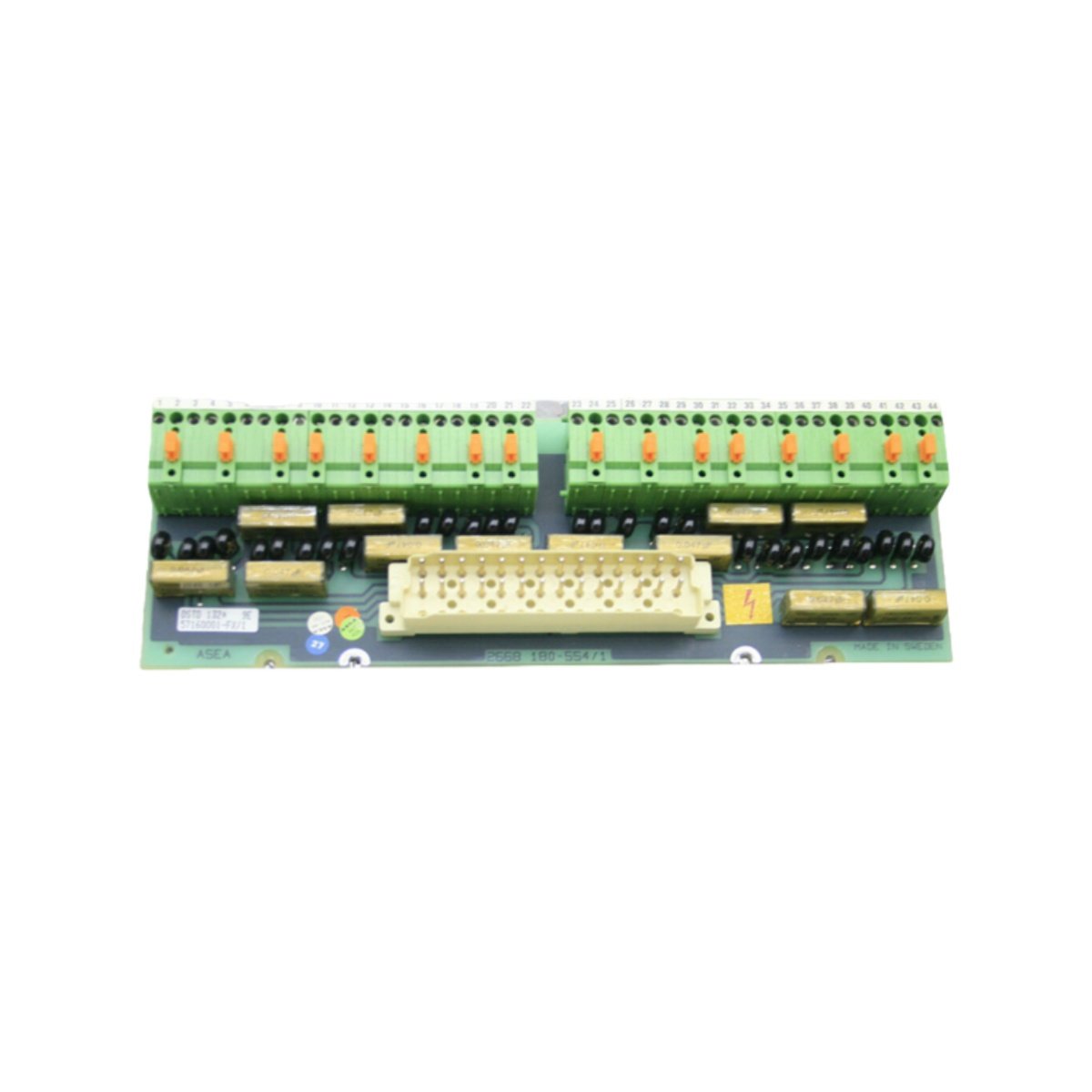

The DSTD132 connection unit offers a compact solution for field device wiring in ABB control systems. ABB engineered this unit to streamline signal distribution across multiple channels. It accommodates both digital inputs and analog measurements within a single assembly. You can deploy this component in new installations or retrofit existing panel layouts.
Technical Specifications
The DSTD132 combines high terminal density with reliable electrical characteristics. The following parameters define its technical capabilities.
| Specification | Detail |
|---|---|
| Model | DSTD132 |
| Manufacturer | ABB |
| Category | Connection Unit |
| Number of Terminals | 32 |
| Terminal Type | Spring-clamp, removable |
| Wire Gauge | 0.14 mm² to 1.5 mm² |
| Dimensions (H x W x D) | 115 mm x 70 mm x 65 mm |
| Weight | 0.31 kg |
| Rated Voltage | 250 V AC |
| Rated Current | 8 A per terminal |
Physical Design and Mounting
The unit measures 115 mm in height and 65 mm in depth. Its width extends to 70 mm to accommodate 32 terminal positions. The DSTD132 weighs approximately 0.31 kilograms for straightforward handling during panel assembly. This design optimizes space usage while maintaining clear access to all connection points.
Connectivity and Terminal Architecture
This connection unit features 32 spring-clamp terminals arranged in four rows. Spring-clamp technology enables fast wiring without special tools or tightening procedures. Each terminal accepts wire gauges from 0.14 mm² up to 1.5 mm². You can remove the entire terminal block for efficient pre-wiring before installation.
Signal Distribution and Organization
The DSTD132 supports grouping of related signals into distinct functional sections. Clear labeling on the housing identifies each terminal position for quick reference. Furthermore, the layout separates power connections from signal wiring to reduce noise coupling. This organization simplifies troubleshooting and maintenance tasks significantly.
Application Scenarios
Engineers select this connection unit for complex automation projects requiring dense I/O concentration. It serves as the primary interface between controllers and field instrumentation panels. The DSTD132 also provides reliable termination for remote I/O stations in distributed control architectures. For similar high-quality industrial components, you can explore options like the RMS TSG TZ C static trip unit from the broader automation ecosystem.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
