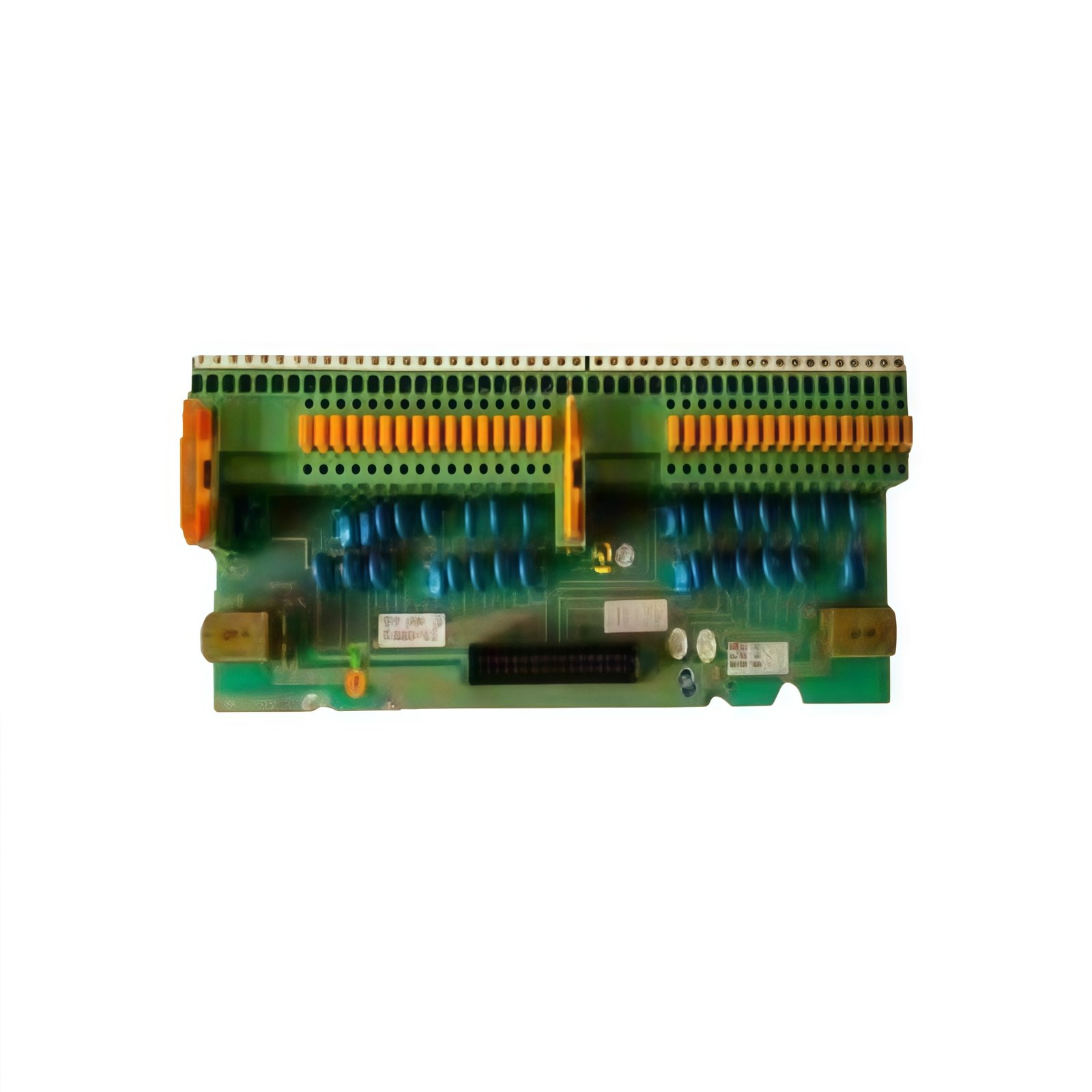

The DSTD110A connection unit provides a robust interface for field devices in ABB automation systems. ABB engineered this unit to simplify wiring between controllers and field instrumentation. It establishes secure connections for both digital and analog signals. You can rely on this component for consistent performance in demanding industrial environments.

Technical Specifications

The DSTD110A combines compact construction with dependable electrical characteristics. The following parameters define its technical capabilities.

Physical Design and Mounting

The unit measures 110 mm in height and 70 mm in depth. Its width occupies just 45 mm for space-efficient cabinet layouts. The DSTD110A weighs approximately 0.22 kilograms for straightforward handling during installation. This compact form factor allows placement in dense control panel configurations.

Connectivity and Terminal Architecture

This connection unit features 20 screw-type terminals arranged in two rows. Each terminal accepts wire gauges from 0.2 mm² up to 2.5 mm². The terminal block remains removable for convenient wiring during panel assembly. You can disconnect field wiring without disturbing adjacent components.

Signal Handling and Isolation

The DSTD110A accommodates both digital and analog signal types simultaneously. It provides clear labeling for each terminal position to simplify troubleshooting tasks. Furthermore, the design includes adequate spacing between adjacent terminals. This spacing prevents signal interference across densely populated wiring channels.

Application Scenarios

Engineers select this connection unit for distributed control system installations. It serves as the primary interface between controllers and field sensors or actuators. The DSTD110A also supports signal marshaling in large-scale automation projects. For similar high-quality industrial components, you can explore options like the RMS TSG TZ C static trip unit from the broader automation ecosystem.
