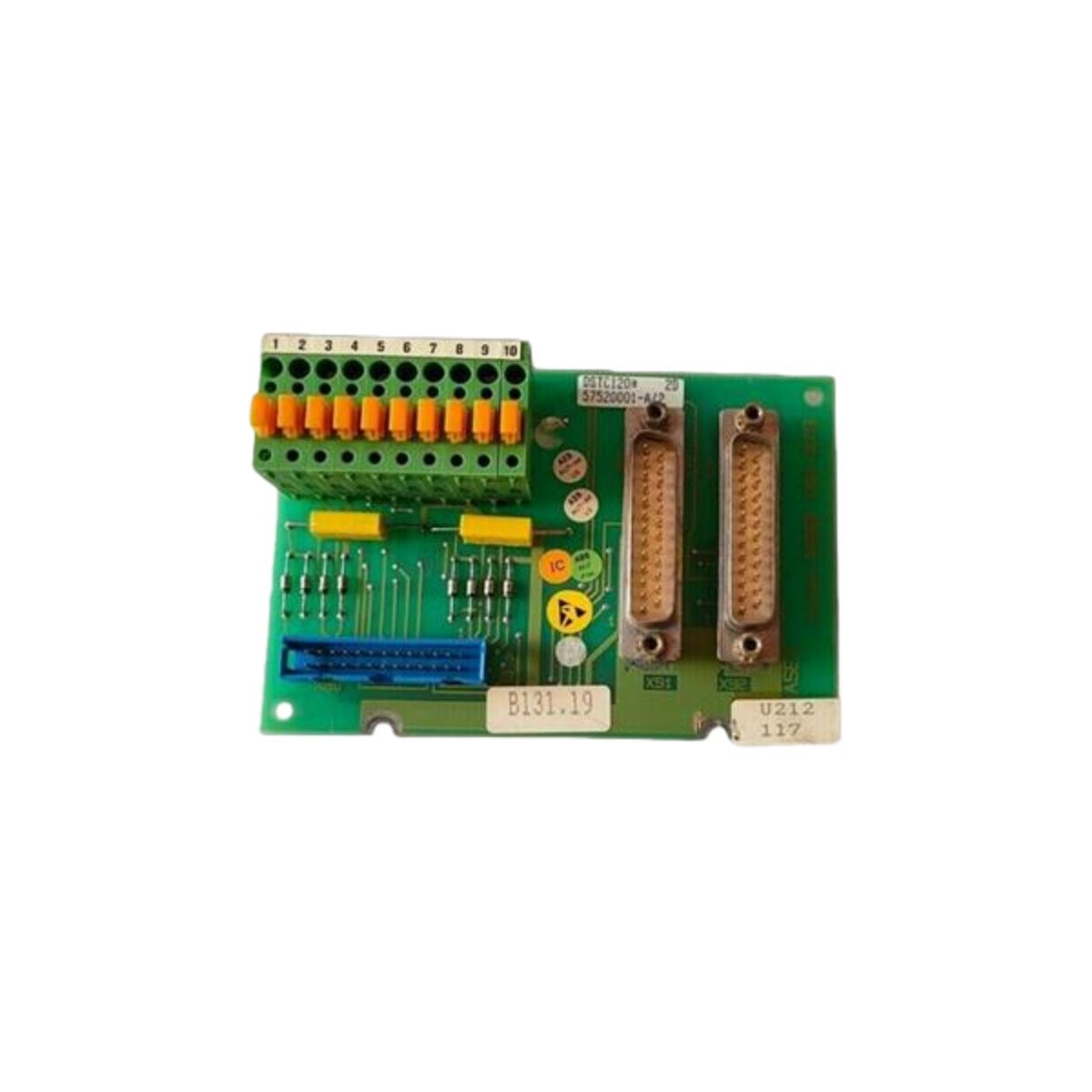

The ABB DSTC120 57520001-A functions as a dedicated connection unit for industrial communication networks. This module establishes reliable asynchronous links between ABB controllers and various field devices. Engineers select this interface when they need to integrate automation systems with minimal cabinet space. Consequently, its slim profile allows installation in crowded panels without compromising performance. You will appreciate how this unit simplifies network architecture while maintaining data integrity.
Technical Specifications for the ABB DSTC120 57520001-A
This connection unit features a lightweight yet rugged construction suitable for demanding industrial environments. It supports multiple communication protocols, providing flexibility for different system architectures. The module’s plug-and-play design significantly reduces installation time and commissioning efforts.
| Specification | Details |
|---|---|
| Model Number | ABB DSTC120 57520001-A |
| Product Type | Connection Unit |
| Dimensions (H x W x D) | 2.2 cm x 12.4 cm x 12.6 cm |
| Weight | 0.1 kg (0.22 lbs) |
| Operating Voltage | 220 V AC |
| Input Current | 10 A |
| Output Power | 3 kW |
| Communication Protocols | Modbus/TCP, EtherCAT |
| Communication Speed | Up to 100 Mbit/s |
| Interface Type | RJ45 Ethernet ports |
| Protocol Conversion | Asynchronous link support |
| Galvanic Isolation | 1500 V AC (communication lines) |
| LED Indicators | Power, link status, data activity |
| Mounting Type | DIN rail (35 mm) |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| Enclosure Material | UL94 V-0 rated plastic |
| Protection Rating | IP20 |
| Certifications | CE, UL, RoHS |
Advanced Communication Capabilities
The ABB DSTC120 57520001-A excels at maintaining stable asynchronous communication links in complex automation networks. It seamlessly bridges Modbus/TCP and EtherCAT protocols, allowing mixed-vendor equipment integration. Additionally, the unit processes data at speeds up to 100 Mbit/s, supporting real-time control requirements. Its compact dimensions measure just 2.2 cm in height, making it one of the slimmest interface options available. Therefore, you can install multiple units side by side without consuming excessive panel space. The integrated LED indicators provide immediate visual feedback on power status, link integrity, and data transmission activity. This simplifies troubleshooting and reduces system downtime significantly.
System Integration and Manufacturer Context
ABB designed the DSTC120 as part of their comprehensive Advant Controller series and MasterPiece system components. This connection unit works exceptionally well with ABB Advant OCS platforms running Master SW software. It also integrates seamlessly with ABB MasterPiece 200 and 200/1 controllers in legacy system upgrades. The module proves particularly valuable in process systems requiring high-speed data exchange between controllers and distributed I/O. You can find detailed configuration guidelines in the ABB library documentation under the DSTC120 57520001-A product manual. For additional connectivity solutions, explore related ABB interface modules designed for industrial automation networks.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
