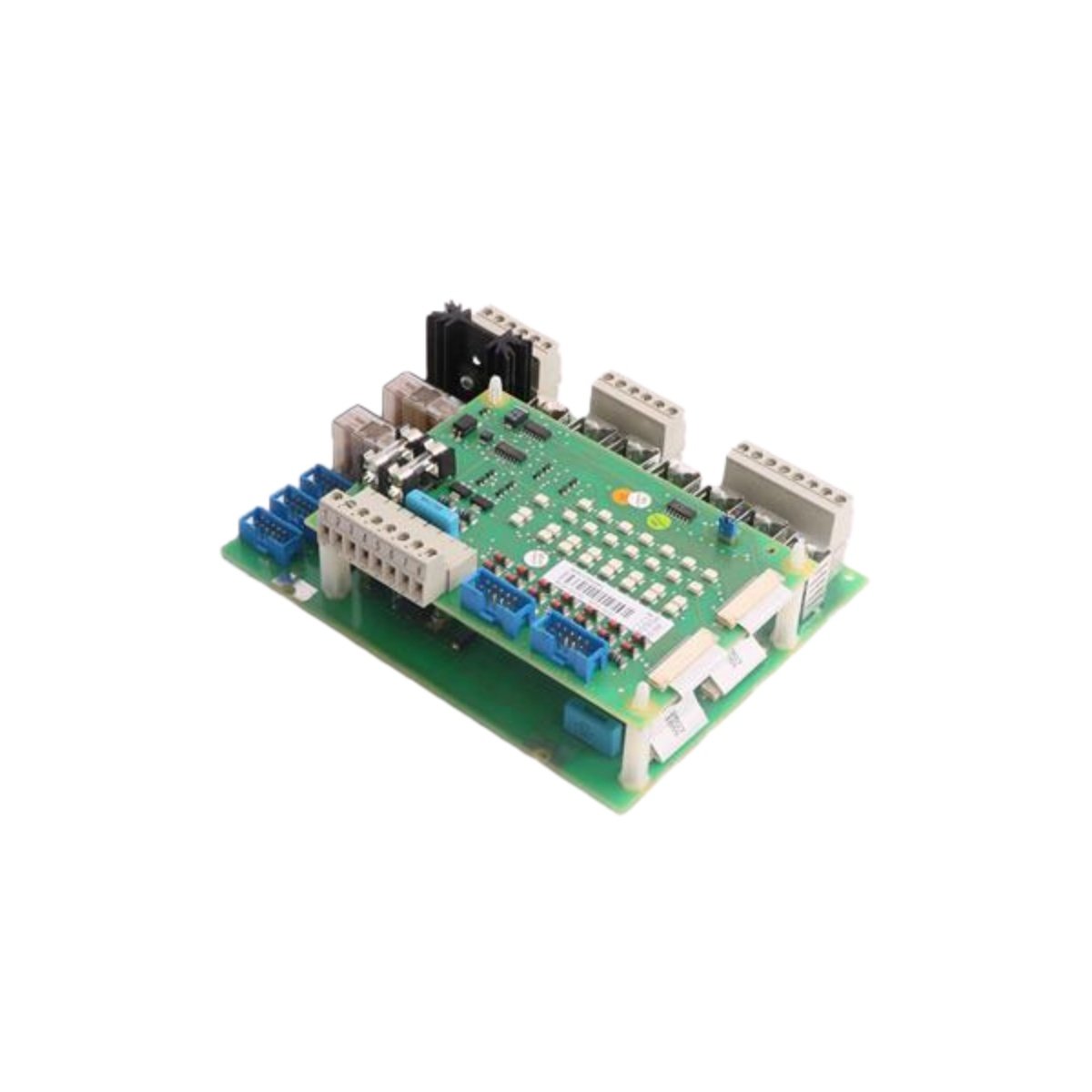

The ABB DSTA160 functions as a dedicated relay connection unit for industrial control systems. This module provides reliable signal distribution between field devices and automation controllers. Engineers utilize this unit to interface digital signals with programmable logic controllers and distributed control systems. Consequently, its design simplifies wiring while maintaining signal integrity in demanding industrial environments. You will appreciate how this connection unit reduces installation time and improves overall system organization.
Technical Specifications for the ABB DSTA160
This relay connection unit integrates seamlessly with ABB’s Advant Controller series and compatible I/O modules. It features a modular construction that allows for flexible configuration based on specific application requirements. The unit’s robust terminal design ensures secure connections even in high-vibration environments.
| Specification | Details |
|---|---|
| Model Number | ABB DSTA160 |
| Product Type | Relay Connection Unit |
| Dimensions (H x W x D) | 120 mm x 45 mm x 110 mm |
| Weight | 0.65 kg (1.43 lbs) |
| Number of Relay Channels | 16 channels |
| Contact Configuration | SPST-NO (Form A) per channel |
| Contact Rating | 2 A at 24 V DC / 250 V AC |
| Maximum Switching Voltage | 250 V AC / 30 V DC |
| Maximum Switching Current | 2 A (resistive load) |
| Minimum Contact Load | 10 mV at 10 µA |
| Coil Voltage | 24 V DC ±10% |
| Coil Power Consumption | 0.5 W per relay typical |
| Isolation Voltage | 1500 V AC (coil to contacts) |
| Termination Type | Screw terminal blocks, pluggable |
| Wire Gauge Range | 24–14 AWG |
| Connection Points | 32 signal terminals plus common |
| Internal Bus Connection | 40-pin ribbon cable interface |
| Response Time | <5 ms operate / <3 ms release |
| Mechanical Life | 20 million operations |
| Electrical Life | 100,000 operations at full load |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5–95% non-condensing |
| Mounting Type | DIN rail mounting (35 mm) |
| Certifications | CE, UL, CSA, RoHS |
| Enclosure Rating | IP20 (finger-safe terminals) |
Advanced Features and System Integration
The ABB DSTA160 incorporates several design elements that enhance its functionality in real-world applications. Each channel includes an indicator LED that illuminates when the relay coil energizes. This visual feedback allows operators to verify signal status without additional test equipment. Additionally, the unit features built-in suppression diodes that protect control circuits from back EMF during relay de-energization. The pluggable terminal blocks simplify maintenance by allowing field wiring removal without disturbing adjacent connections. Furthermore, the integrated bus connector enables direct mounting onto standard I/O modules, eliminating separate cabling requirements.
Application Versatility and Manufacturer Context
ABB designed the DSTA160 as part of their comprehensive Advant Controller 400 series product family. This relay connection unit works exceptionally well with digital output modules requiring isolated contact interfaces. It proves particularly valuable in applications involving motor control, valve actuation, and alarm annunciation. The unit accommodates both AC and DC load switching, providing flexibility across different control strategies. You can find detailed integration guidelines in the ABB library documentation under the DSTA160 product manual.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
